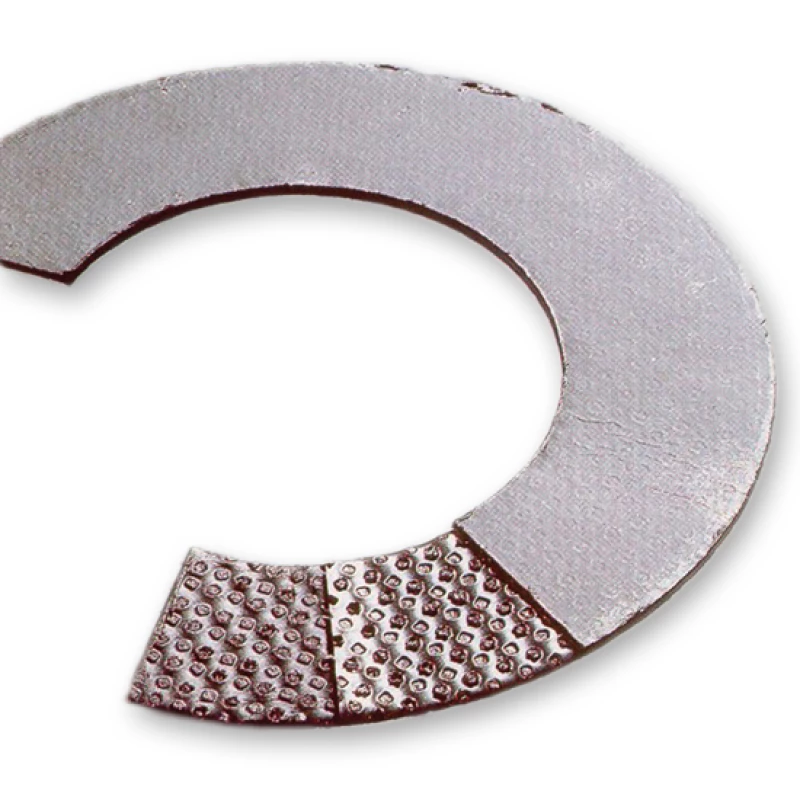

Graphite seal - KLINGER PDM B/AS

Graphite seal | KLINGER PDM B/AS

Graphite seal | KLINGER PDM B/AS
Graphite seal | KLINGER PDM B/AS
gallery slider left
gallery slider right

Graphite with 2 perforated stainless steel inserts v.z.v. "Anti-Stick" coating, density 1.3

Suitable for: steam, hot water and thermal oil

  • High density and good handling due to double perforated inserts.
  • Great compressibility and temperature resistance.
  • Features an "Anti-Stick" coating.
  • Available from our own production in plates, rings and windows.
Specifications
Downloads
Graphite seal | KLINGER PDM B/AS
Graphite seal | KLINGER PDM B/AS
Previous series Next Series

Also available

  • Plates and rings up to 1500 mm external in one piece

To be specified when ordering

  • type, material and dimensions

Specifications

Type KLINGER PDM B/AS
Material graphite 99% pure with 2 perforated AISI 316 inlays, v.z.v. anti-stick coating
Color black/grey
Density 1.3 g/cm³
Compressibility according to ASTM F36A 20%
Springback according to ASTM F36A 30%
Pressure resistance according to DIN 52913(2mm) 48 N/mm²
Gas permeability according to DIN 28090-2 < 0,05 mg/s.m.
Chemical resistance see resistance list
Approved/tested by DIN DVGW 88.03e 052
BAM
"Fire-safe" according to BS 5146
BL Wien (food industry)

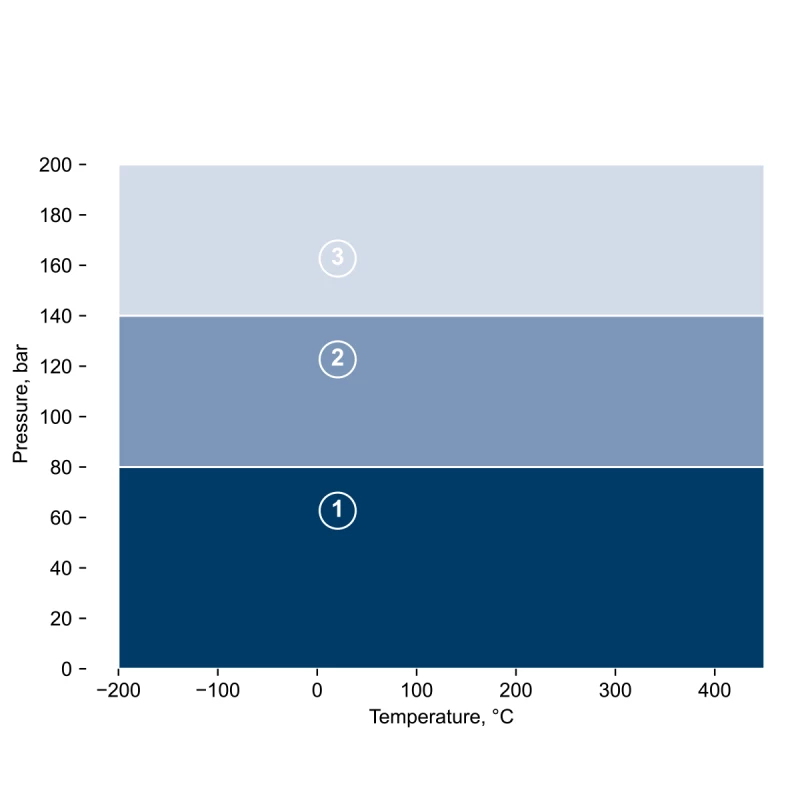

Pressure/Temperature Graph
Area 1 Normally with adequate surface pressure, it can be applied without problems.
Area 2 Get advice for critical applications.
Area 3 Seek advice.
DIN dimensions according to EN 1514-1
ANSI dimensions according to B16.21
