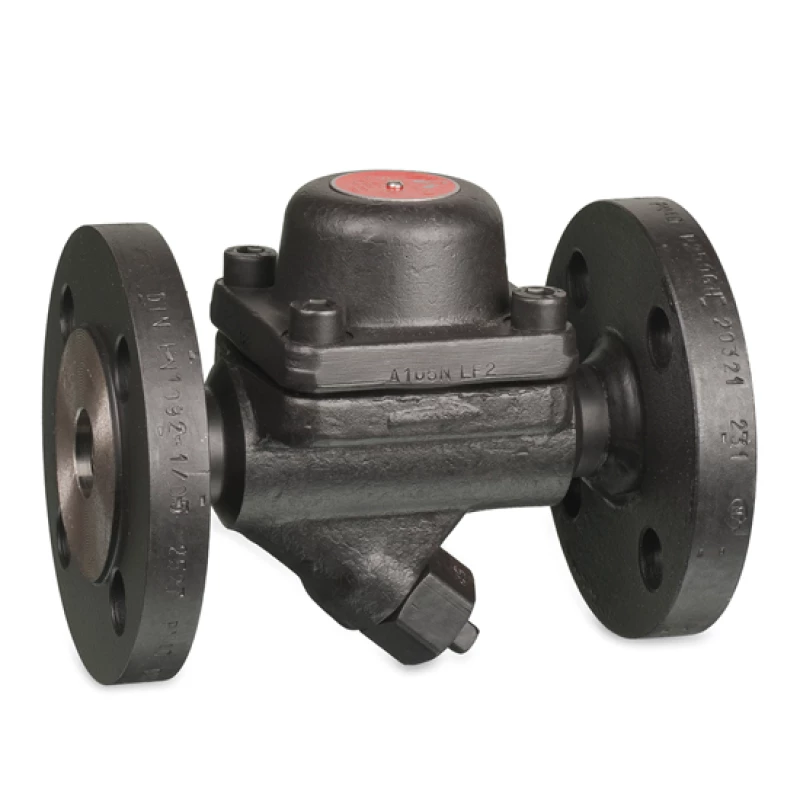

Steel Armstrong thermostatic bimetallic steam trap | SH-300
with integrated filter
Suitable for: tracing and venting and in certain cases dewatering and superheated steam
- Discharges condensate below saturated steam temperature.
- Has very high venting capacity during startup.
- Can also be used as an air vent.
- Thermo-chemically hardened valve for longer service life.
- With integrated filter.
Urgency or questions about availability?
Specifications
| Type | SH-300 |
| Material | Steel ASTM A105 |
| Disc | Chrome steel 440C |
| Seat | Stainless steel 303 "Boronized" |
| Working pressure max. | 22 bar |
| Design pressure | 32 bar |
| Max. back pressure | 99% of the inlet pressure |
| Connections | BSPT or NPT thread, weld (SW) and EN or ANSI flange |
|
|
|
| Temperature | max. 350ºC |
Contact
For more information about our thermostatic steam traps, please contact:
