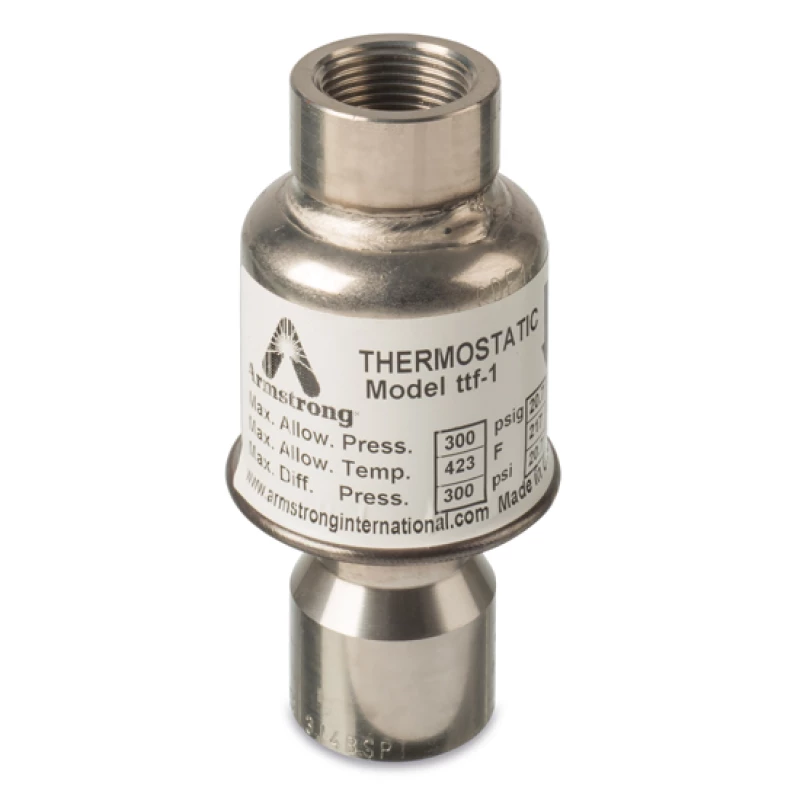

Stainless steel Armstrong thermostatic steam trap | TTF
for in line and angled connection
Suitable for: tracing and venting
- Discharges condensate below saturated steam temperature.
- Has very high venting capacity during startup.
- Can also be used as an air vent.
- Small and light.
Urgency or questions about availability?
Specifications
| Type | TTF |
| Material | RVS 304L |
| Bellow | bellows phosphor bronze in stainless steel cage |
| Disc | Bronze |
| Seat | STAINLESS STEEL |
| Working pressure max. | 20.5 bar |
| Backpressure | up to 99% of inlet pressure |
|
|
|
| Connections | BSPT or NPT female thread |

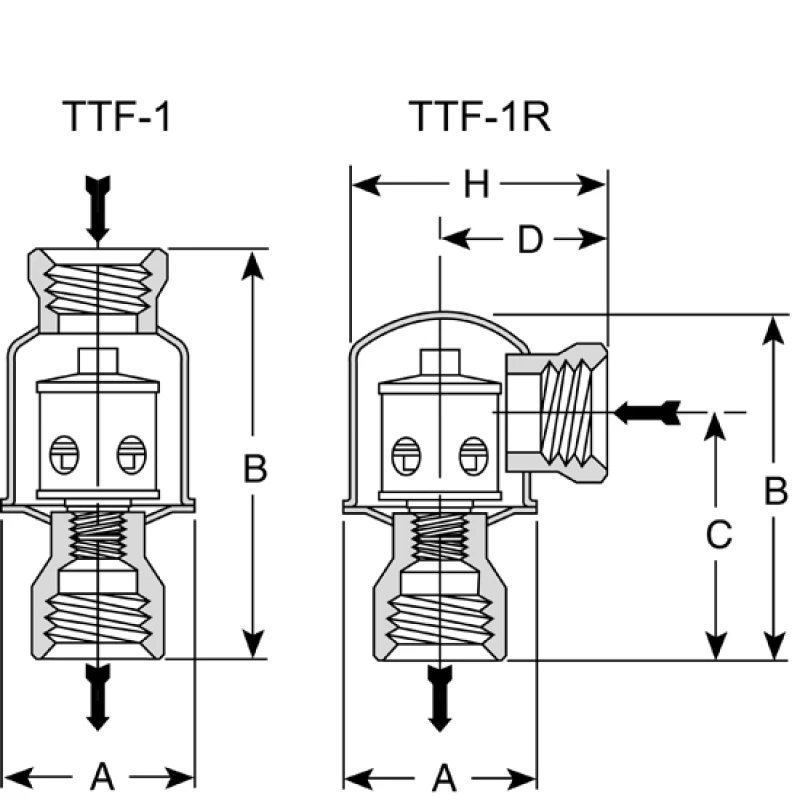

| TTF-1 inline, TTF-1R right-angle. | |
|
|
|
| Temperature | max. 232ºC |
|
|
|
| Also available | stainless steel bellows |
Contact
For more information about our thermostatic steam traps, please contact:
