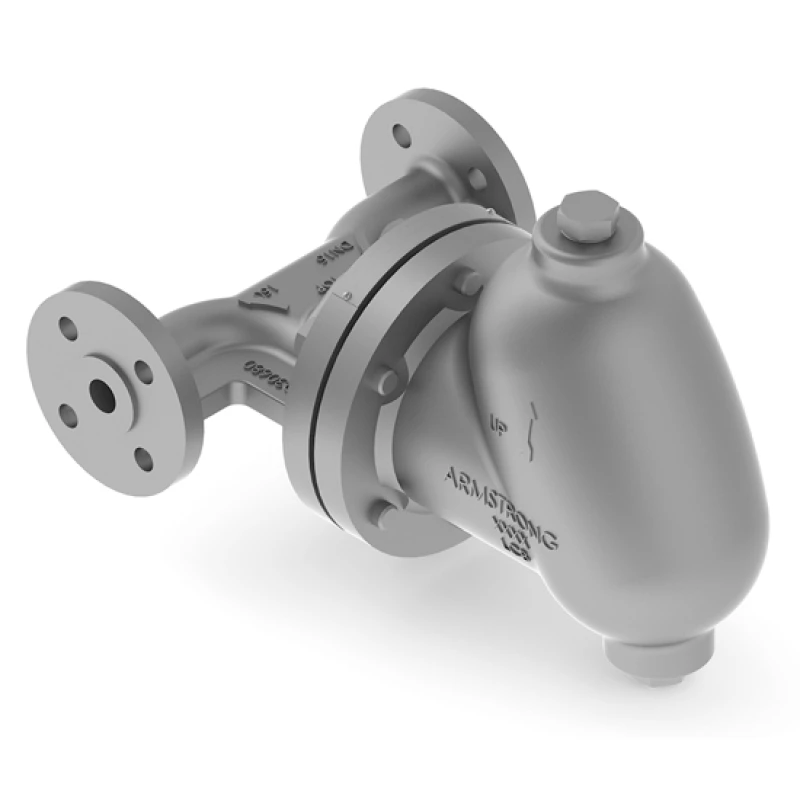

Steel Armstrong float steam trap | ICS series
with thermal vent and integral flanges
Suitable for: process application and heat exchangers
- Discharges condensate directly, no condensate back up.
- Large venting capacity.
- Continuous discharge of condensate.

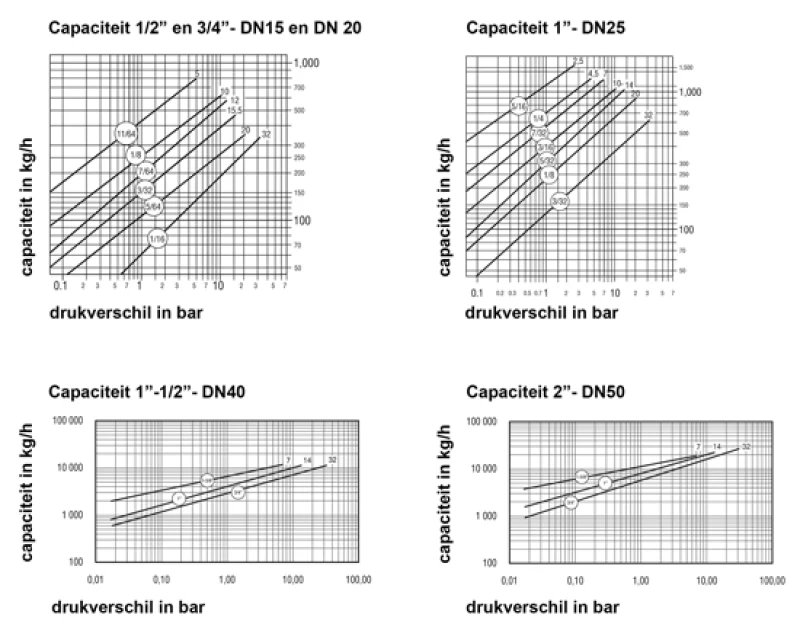

- Large capacity.
Urgency or questions about availability?
DN15 flanges provided with internal thread M12x 1.25
1/2" and 3/4" flanges provided with internal thread 1/2" -13UNC
1/2" and 3/4" flanges provided with internal thread 1/2" -13UNC
Also available
- as liquid drainer or with vacuum breaker
Specifications
| Type | ICS series |
| Material | ASTM A352 Gr. LCB |
| Internals | STAINLESS STEEL |
| Air vent | Wafer type, stainless steel with hastelloy element |
| Working pressure | Max. 32 bar @ 238ºC / ANSI 150# 13.6 bar @ 205ºC |
| Connections | Threaded connections BSPT, NPT |
| Welding connections SW | |
| Flange connections ASME 150# and 300# / DIN PN40 | |

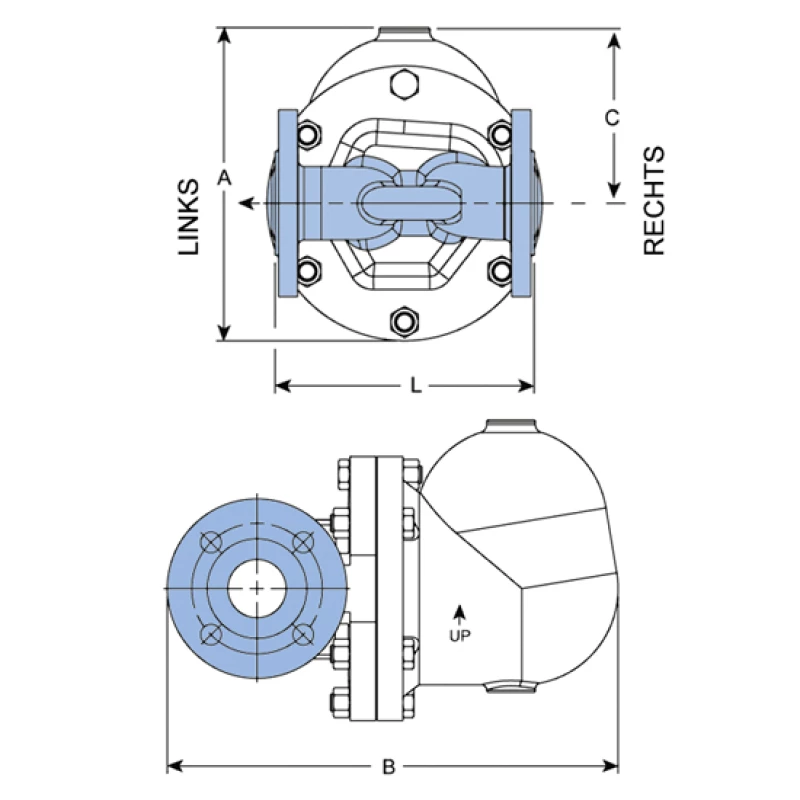

| Flow direction | up to DN25 left -> right |
| DN40 and DN50 right -> left | |
| Vertical top -> bottom (all) |
Contact
For more information on ball float steam traps, please contact us at:
