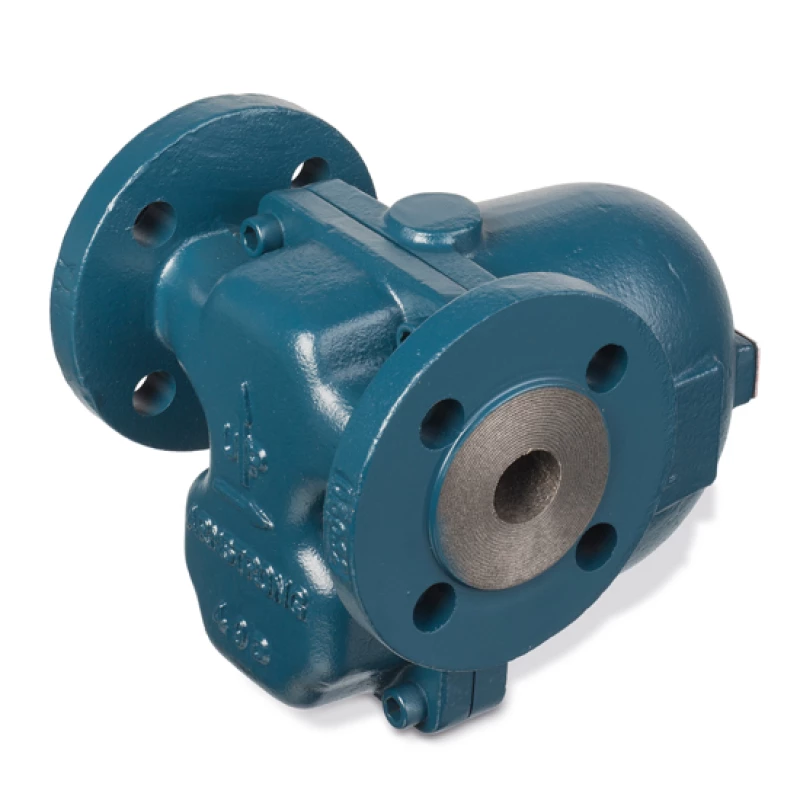

Ductile iron Armstrong float condensate trap | AIC series
with thermal air vent DN 15 to DN 25
Suitable for: process applications, heat exchangers
- Discharges condensate directly, no condensate back up.
- Large venting capacity.
- Continuous discharge of condensate.
- Flow direction for the horizontal model from left to right.
Urgency or questions about availability?
Specifications
| Type | AIC Series |
| Material | Nod. cast iron EN-GJS-400-15 (EN1563) |
| Internals | RVS 304 |
| Valve and seat | STAINLESS STEEL 17-4PH |
| Air vent | Hasteloy |
| Gasket | Graphite |
|
|
|
| Working pressure max. | 14 bar |
|
|
|
| Connections | BSP thread or PN 16 flange connection |
|
|
|
| Temperature | max. 232ºC |
|
|
|
| Also available | Vacuum breaker (suitable up to 10 bar) |
Contact
For more information on ball float steam traps, please contact us at:
