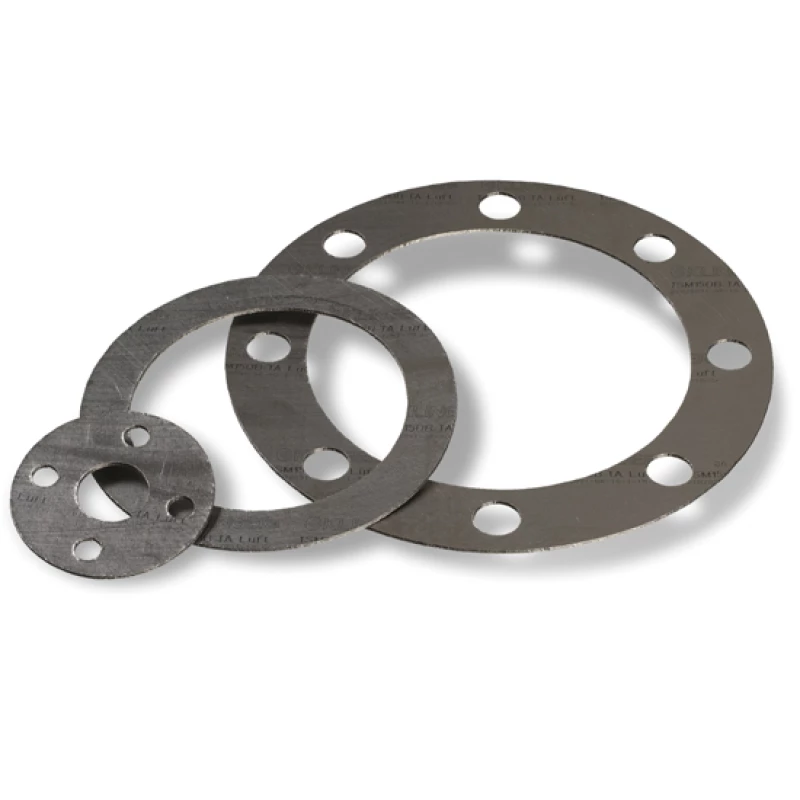

Graphite seal | KLINGER TSM
Graphite with perforated stainless steel insert, with special homogeneous extremely gas-tight graphite overlays
Suitable for: hot environmentally hazardous media, steam, hot water and thermal oil
- Very high compressibility and temperature resistance.
- Extremely high gas density due to special graphite treatment.
- Available from our own production in plates, rings and windows.
Specifications
| Type | KLINGER TSM |
| Material | graphite 99% pure with perforated AISI 316 insert, v.z.v. extremely gas-tight graphite coatings. |
| Color | Black |
|
|
|
| Compressibility according to ASTM F36A | 35% |
| Springback according to ASTM F36A | 20% |
| Pressure resistance according to DIN 52913(2mm) | > 45 N/mm² |
|
|
|
| Gas permeability according to VDI2200 (TA-luft 40 bar Helium) | 4.3.10-4 mbar.l/(m.s). |
|
|
|
| Chemical resistance | see resistance list |
|
|
|
| Approved/tested by | TA-Luft VDI2200 and VDI2440 |
|
|
|
|

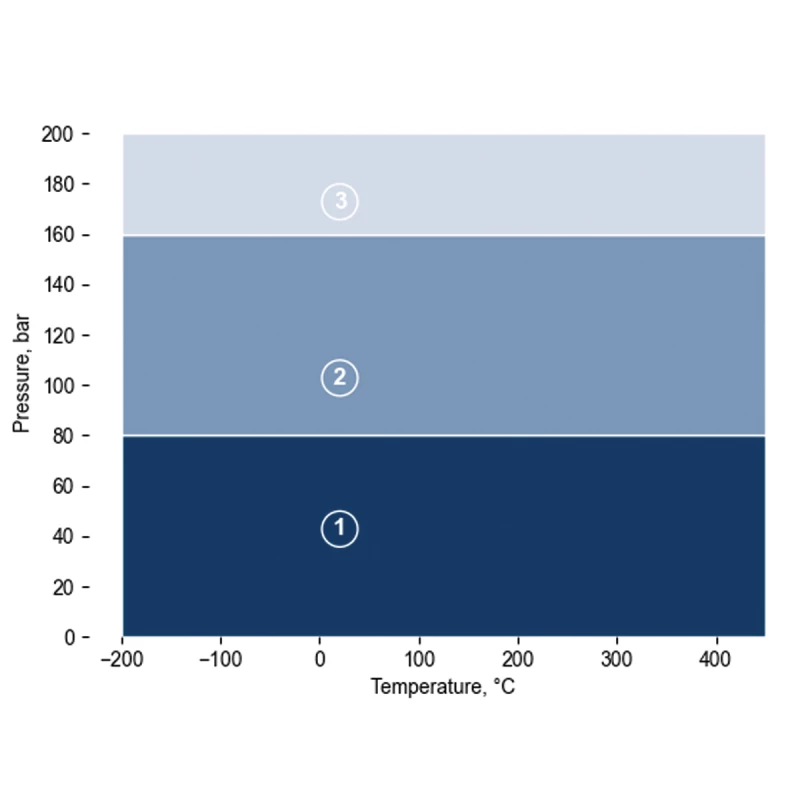

Pressure/Temperature Graph
|
|
| Area 1 | Normally with adequate surface pressure, it can be applied without problems. |
| Area 2 | Get advice for critical applications. |
| Area 3 | Seek advice. |
|
|
|
|
DIN dimensions according to EN 1514-1
|
|
|
ANSI dimensions according to B16.21
|
|
Contact
For more information about our graphite gaskets, please contact us at:
