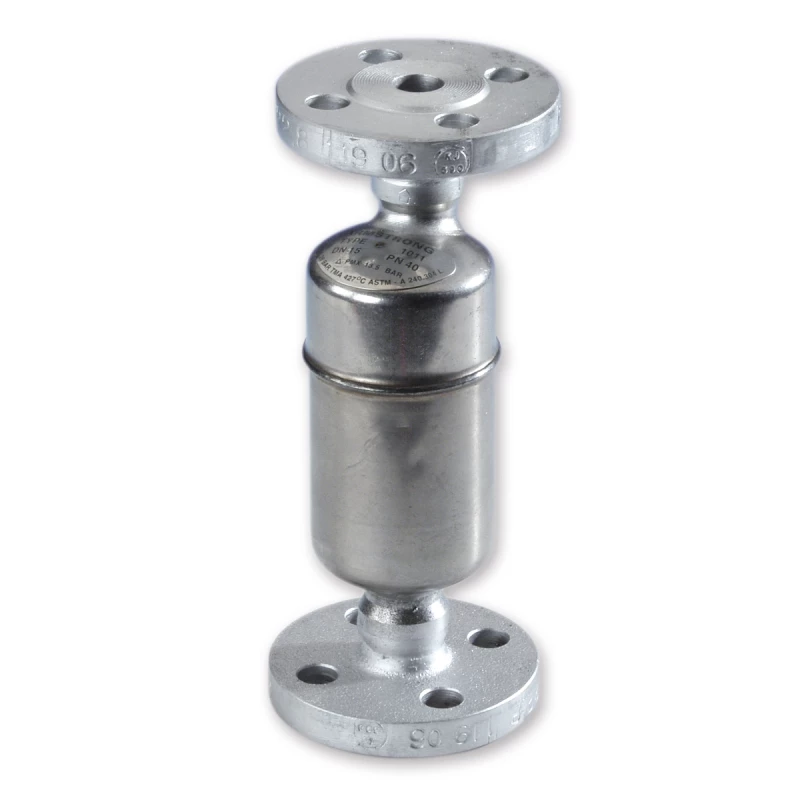

Armstrong stainless steel inverted bucket steam trap | 1000 Series
with vertical connection
Suitable for: dewatering, tracing and process applications
- Discharges condensate directly, no condensate back up.
- Maintenance-free and not sensitive to dirt.
- Resistant to water hammer.
- Frost Resistant.
Specifications
| Type | 1000 Series |
| Material | RVS 304L |
|
|
|
| Internals | RVS 304 |
| Valve and seat | hardened chrome steel 440F |
| Flanges | (if applicable) steel PN40 (max. 32 bar @ 250ºC), optionally in stainless steel |
| Working pressure max. | type 1010 10.5 bar |
| type 1011 28 bar | |
| type 1013 31 bar | |
| type 1022 45 bar | |
| Backpressure | up to 99% of inlet pressure |
|
|
|
| Connections | BSP thread, weld connection,flanges EN PN 40 and ANSI 150# / 300# |
|
|
|
| Temperature | max. 427ºC |
|
|
|
| Also available | different valve passage |
| with thermalstatic vent bucket | |
| other connections | |
| internal check valve | |
Contact
For more information on our inverted bucket steam traps, please contact us at:
