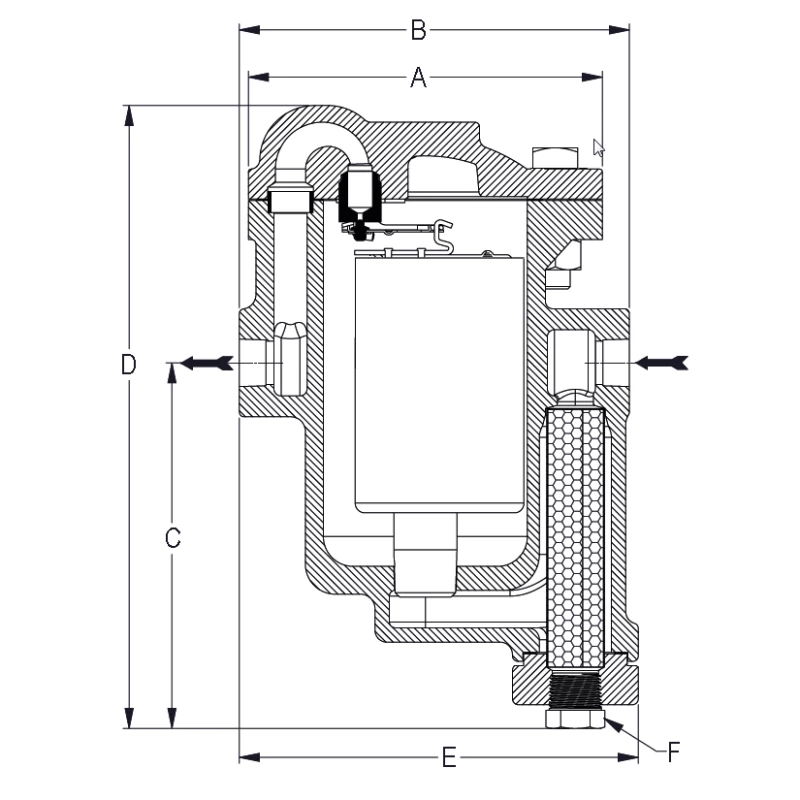

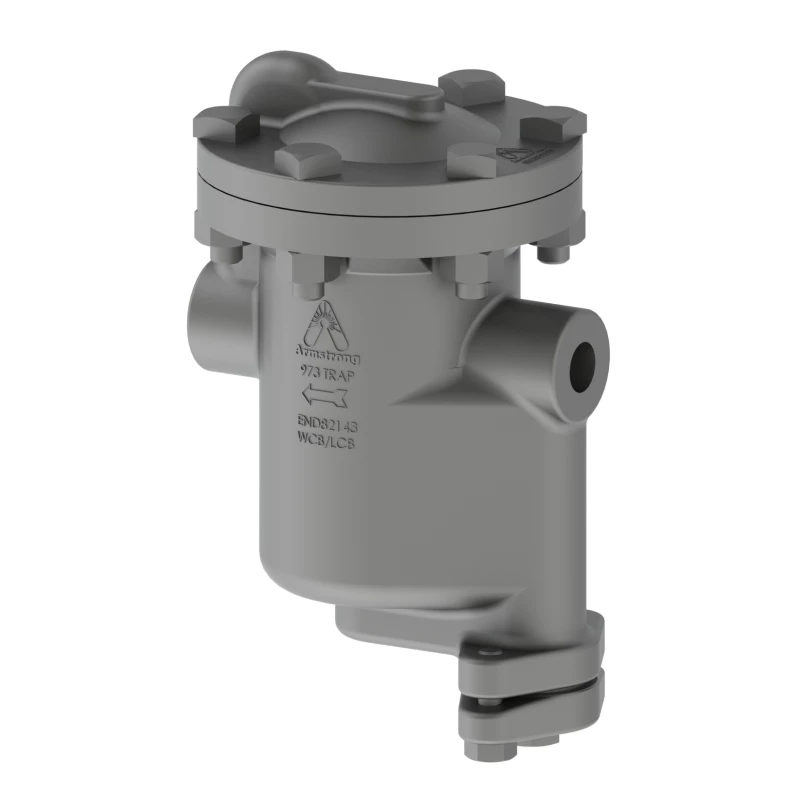

Cast steel Armstrong inverted bucket steam trap | 970 Series
with horizontal connection and strainer
Suitable for: process applications
- Discharges condensate directly, no condensate back up.
- Maintenance-free and not sensitive to dirt.
- Resistant to water hammer.
Urgency or questions about availability?
Also available
- with PN40 and PN63 flange connections
- With ANSI 150#, 300# and 600# flange connections
- with NPT and BSPT female thread connections
Options
- Other connections, sizes and weights on request.
Specifications
| Type | 970 Series |
| Material | Cast steel ASTM A216 WCB |
|
|
|
| Internals | RVS 304 |
| Valve and seat | hardened chrome steel 440F |
| <34,5 barg | |
| > 34.5 barg Titanium | |
| Plug | Steel |
| Working pressure max. | 41 bar |
| Backpressure | up to 99% of inlet pressure |
| Filter | RVS 304 |
|
|
|
| Connections | Female thread connection, Socketwelt weld connection and flange connection |
|
|
|
| Temperature | Max. 343ºC |
|
|
|
| Also available | Different valve passages |
| Internal check valve | |
| Other connections | |
Contact
For more information on our inverted bucket steam traps, please contact us at:
