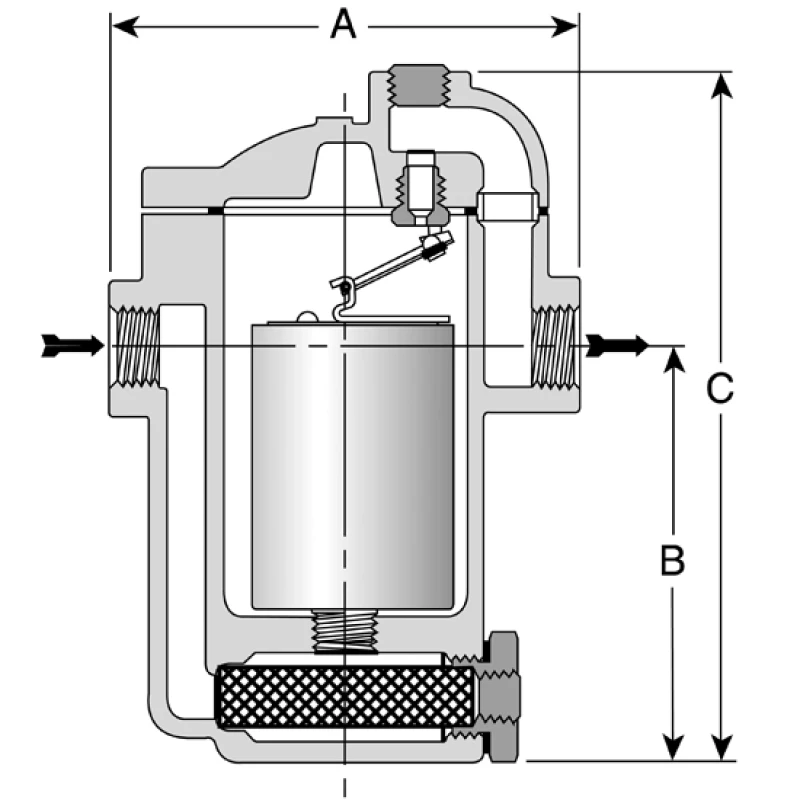

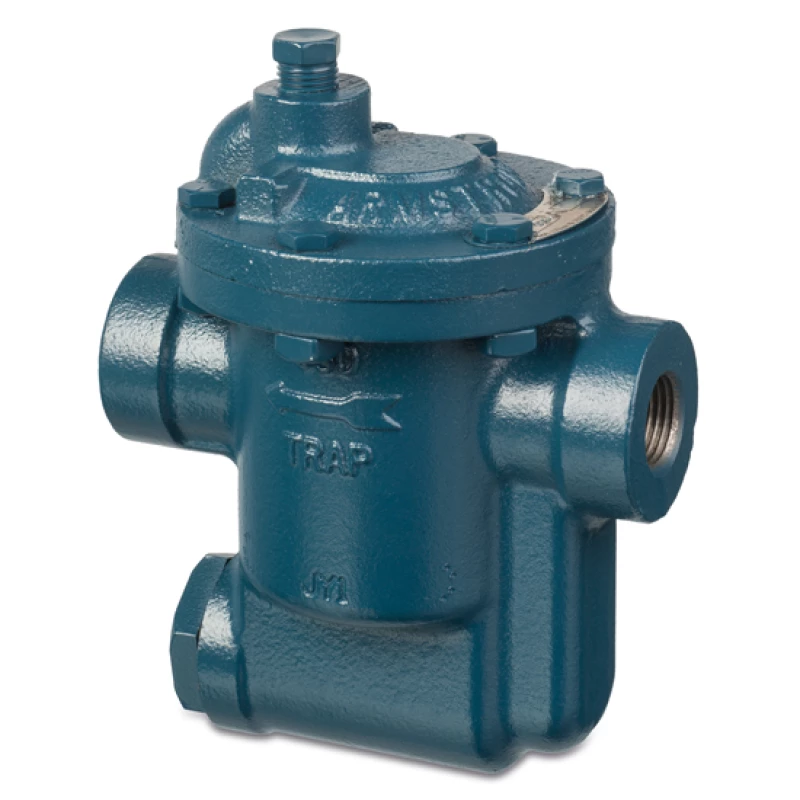

Cast iron Armstrong inverted bucket steam trap | 880 Series
with horizontal connection and strainer
Suitable for: dewatering, tracing and process applications
- Discharges condensate directly, no condensate back up.
- Maintenance-free and not sensitive to dirt.
- Resistant to water hammer.
For flange connection:
Type 880F and Type 881F see new replacement Type 681F.
Type 882F and Type 883F see new replacement Type 683F.
Type 880F and Type 881F see new replacement Type 681F.
Type 882F and Type 883F see new replacement Type 683F.
Specifications
| Type | 880 Series |
| Material | Cast Iron |
|
|
|
| Internals | RVS 304 |
| Valve and seat | hardened chrome steel 440F |
| Plug | Steel |
| Design pressure max. | Type 880 10.5 bar |
| Type 881-883 16 bar | |
| Backpressure | up to 99% of inlet pressure |
| Steam pressure | max. 13 bar |
|
|
|
| Connections | BSP thread or with molded flanges |
|
|
|
| Temperature | max. 232ºC |
|
|
|
| Also available | different valve passage |
| internal check valve | |
| with thermalstatic vent bucket | |
| other connections | |
Contact
For more information on our inverted bucket steam traps, please contact us at:
