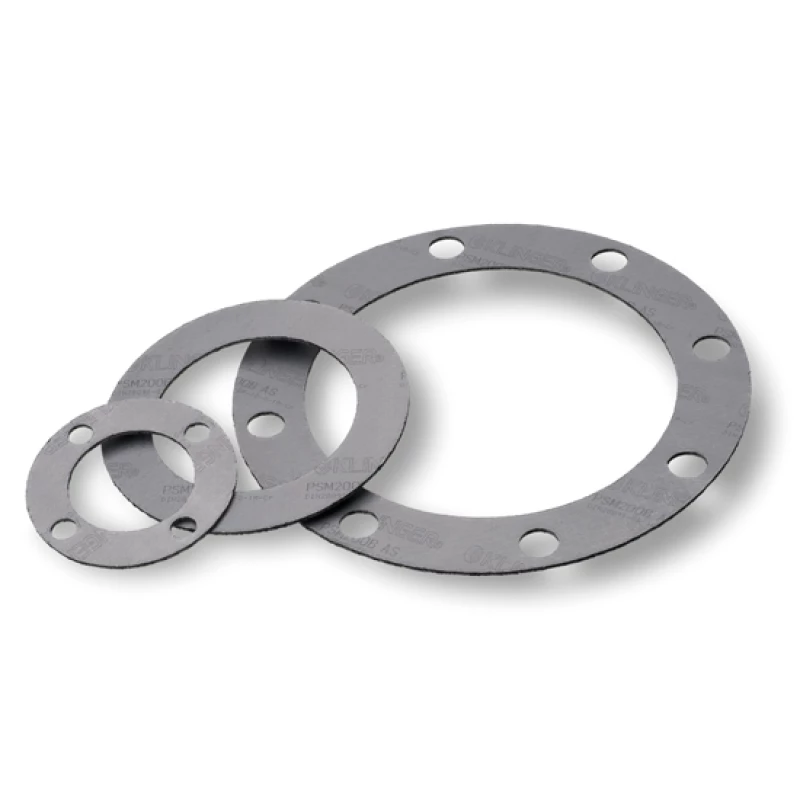

Graphite seal | KLINGER PSM B/AS

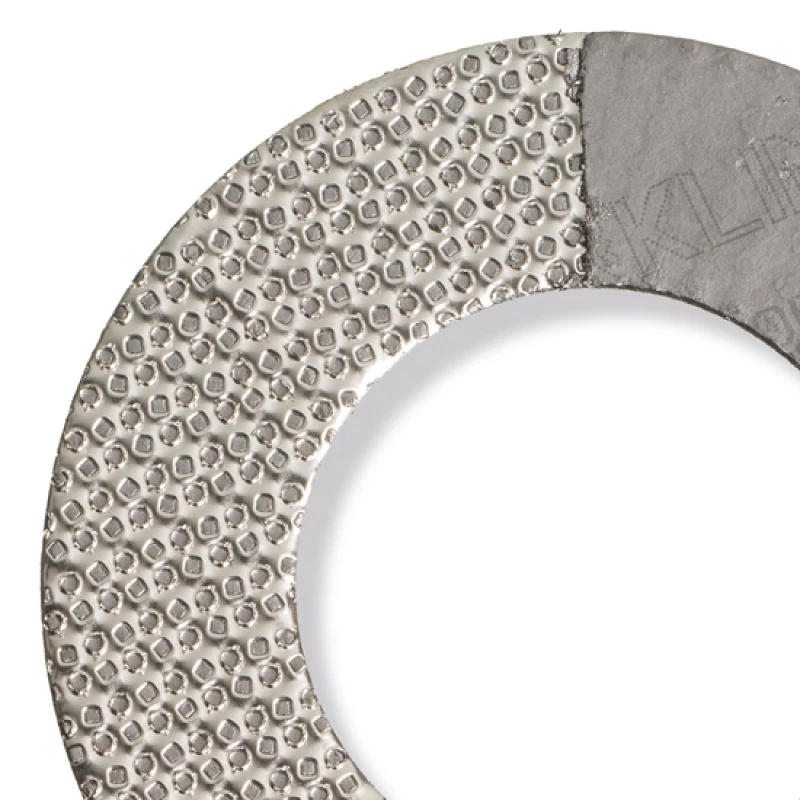

Graphite with perforated stainless steel insert v.z.v. "Anti-Stick" coating
Suitable for: steam, hot water and thermal oil
- Very high compressibility and temperature resistance.
- Features "Anti-Stick" coating.
- Available from our own production in plates, rings and windows.
Specifications
| Type | KLINGER PSM B/AS |
| Material | graphite 99% pure with perforated AISI 316 insert, v.z.v. anti-stick coating |
| Color | Black/Gray |
|
|
|
| Compressibility according to ASTM F36A | 35% |
| Springback according to ASTM F36A | 20% |
| Pressure resistance according to DIN 52913(2mm) | 48 N/mm² |
| Gas permeability according to DIN 28090-2 | < 0,05 mg/s.m. |
|
|
|
| Chemical resistance | see resistance list |
|
|
|
| Approved/tested by | DIN DVGW 88.03e 052 |
| BAM O2 | |
| "Fire-safe" according to BS 5146 and DIN EN ISO 10497 | |
| BL Wien (food industry) | |
| KTW drinking water | |
|
|
|
|
Sealing factors 2 mm thick leakage class 0.1 mg/sxm
|
|
| ASTM Y | 15 MPa |
| ASTM m | 3 |
| D0701 pgm;min 25ºC | 20 MPa |
| D0701 pgm;max 25ºC | 140 MPa |
| D0701 pgm;max 100ºC | 130 MPa |
| D0701 pgm;max 200ºC | 120 MPa |
| D0701 pgm;max 300ºC | 110 MPa |
| D0701 Cg | 1,3 |
|
|
|
|

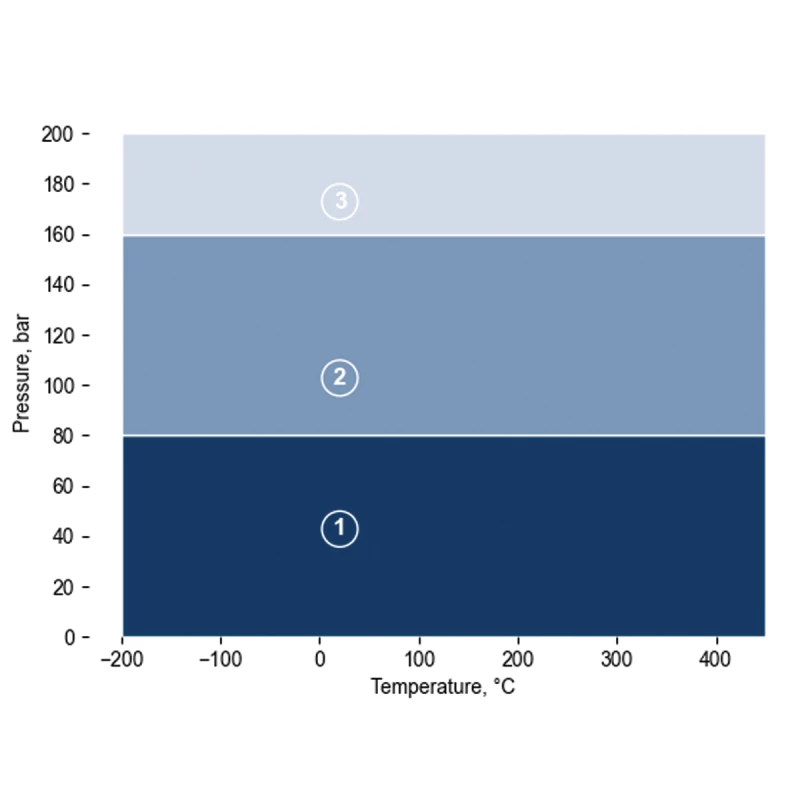

Pressure/Temperature Graph
|
|
| Area 1 | Normally with adequate surface pressure, it can be applied without problems. |
| Area 2 | Get advice for critical applications. |
| Area 3 | Seek advice. |
|
|
|
|
DIN dimensions according to EN 1514-1
|
|
|
ANSI dimensions according to B16.21
|
|
