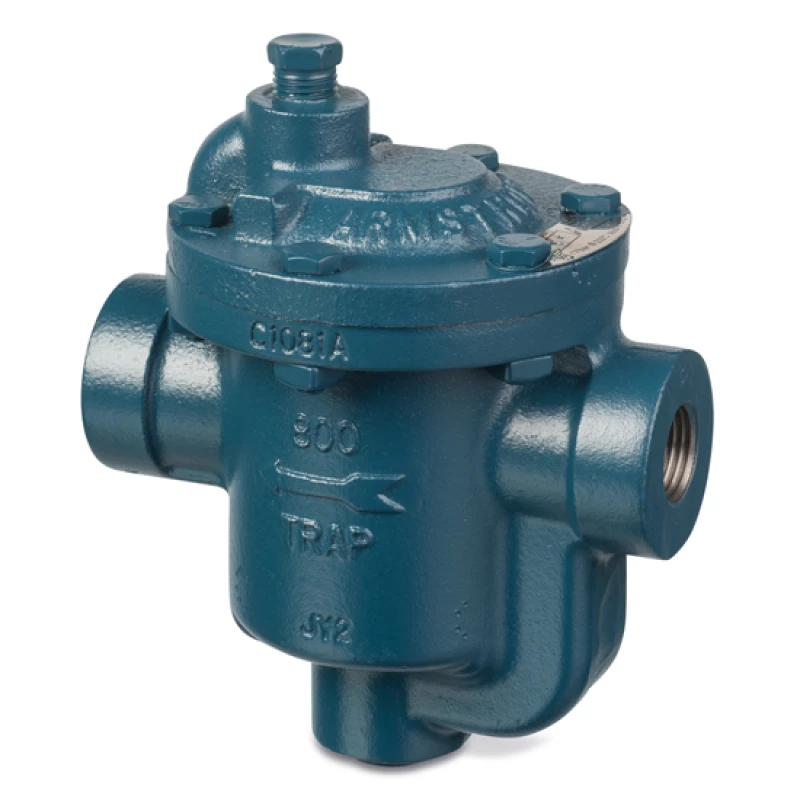

Cast iron Armstrong inverted bucket steam trap | 800 Series
with horizontal connection
Suitable for: dewatering, tracing and process applications
- Discharges condensate directly, no condensate back up.
- Maintenance-free and not sensitive to dirt.
- Resistant to water hammer.
Urgency or questions about availability?
For flange connection:
Type 800F see newly replaced Type 681F.
Type 811F see newly replaced Type 681F.
Type 812F see newly replaced Type 682F.
Type 813F see newly replaced Type 683F.
Type 814F see newly replaced Type 614F.
Type 815F see newly replaced Type 615F.
Type 816F see newly replaced Type 616F.
Type 800F see newly replaced Type 681F.
Type 811F see newly replaced Type 681F.
Type 812F see newly replaced Type 682F.
Type 813F see newly replaced Type 683F.
Type 814F see newly replaced Type 614F.
Type 815F see newly replaced Type 615F.
Type 816F see newly replaced Type 616F.
Specifications
| Type | 800 Series |
| Material | Cast Iron |
|
|
|
| Internals | RVS 304 |
| Valve and seat | hardened chrome steel 440F |
| Plug | steel |
| Working pressure max. | type 800 10 bar |
| type 811-816 Threaded connection 16 bar | |
| type 811-816 flange connection 13 bar | |
|
|
|
| Connections | BSP thread or molded flanges |
|
|
|
| Temperature | max. 232ºC |
|
|
|
| Also available | different valve passage |
| internal check valve | |
| with thermalstatic vent bucket | |
| other connections | |
Contact
For more information on our inverted bucket steam traps, please contact us at:
