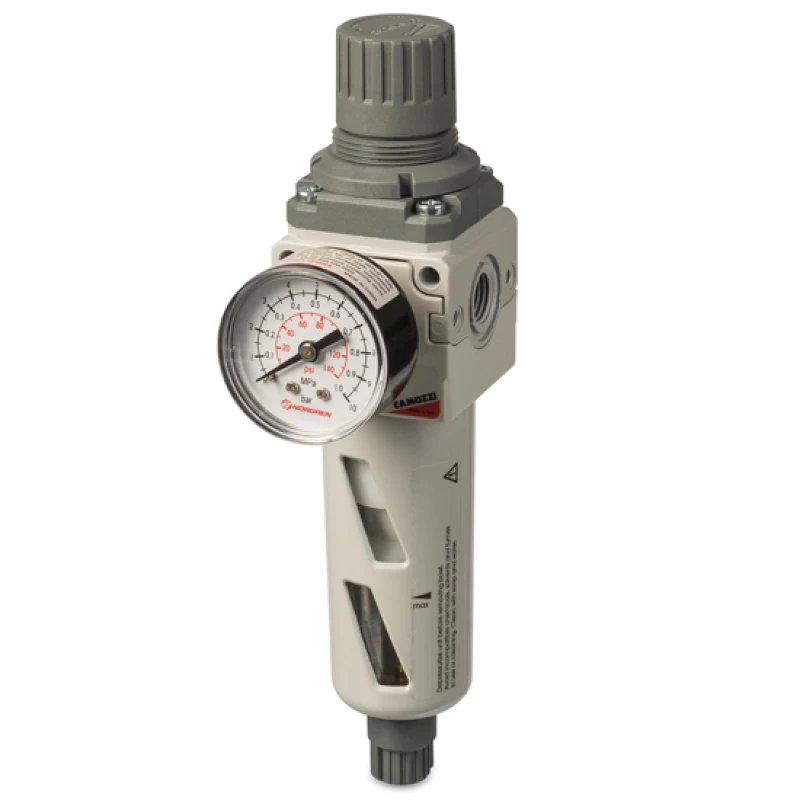

Compressed air filter regulator sets | MC series
Complete sets and individual components
Suitable for: reducing pressure, filtering air and separating moisture/liquid.
- Semi-automatic drain
- Adjustable from 0 - 10 bar.
- Semi-automatic drain: drain automatically once air pressure drops below 0.3 bar otherwise manual, liquid level indicator.
- Filter standard 25µm filter element, 5µm available on request.
Specifications
| Type | MC series |
| Material | metal, NBR, technopolymer |
| Temperature range | -5º to 50ºC. |
| Maximum flow rate | 1500nl/min |
| Filter | 25µm |
| Gauge | 0-10bar, 1/8" back connection |
| Connection | see table |
|
|
|
|
|
|
|
|
|
|
Complete kits are also available in this program for wall mounting and optionally equipped with valves (Fig D). During maintenance, the complete kit can be disassembled without disconnecting the air tubes.
|
|
