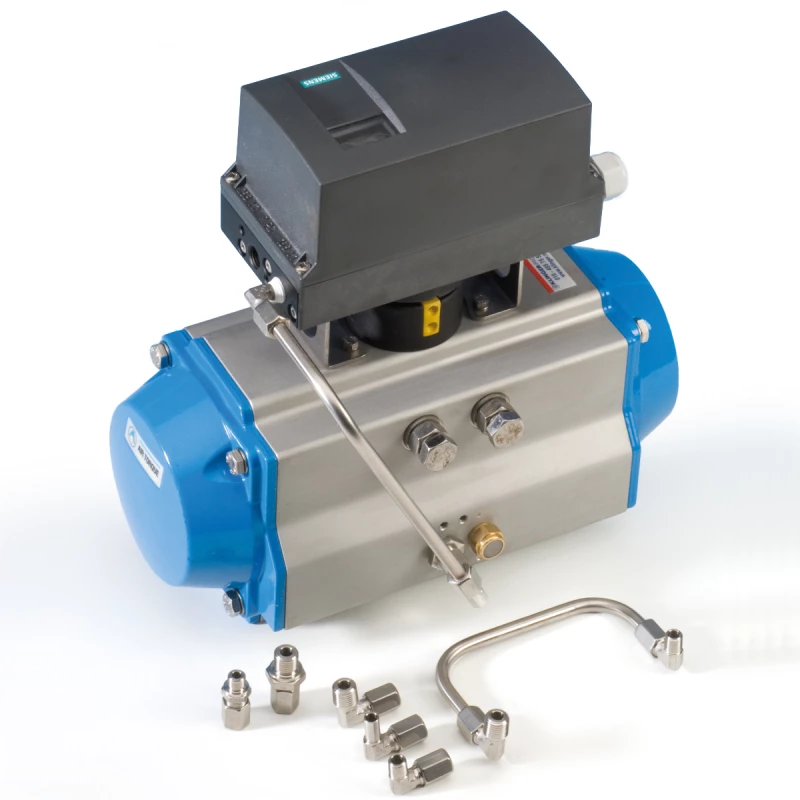

Siemens Smart Positioner | PS 2

Suitable for: double- or single-acting pneumatic actuators

Via a 0/4-20mA signal, the PS 2 allows for the possibility to modulate the valve.
Due to the advanced piezo-ceramic solenoid valves, this positioner has minimal air consumption. This provides the user with annual savings of at least 15-35% of the purchase value.
Its reliability has proven itself in various applications in recent years.

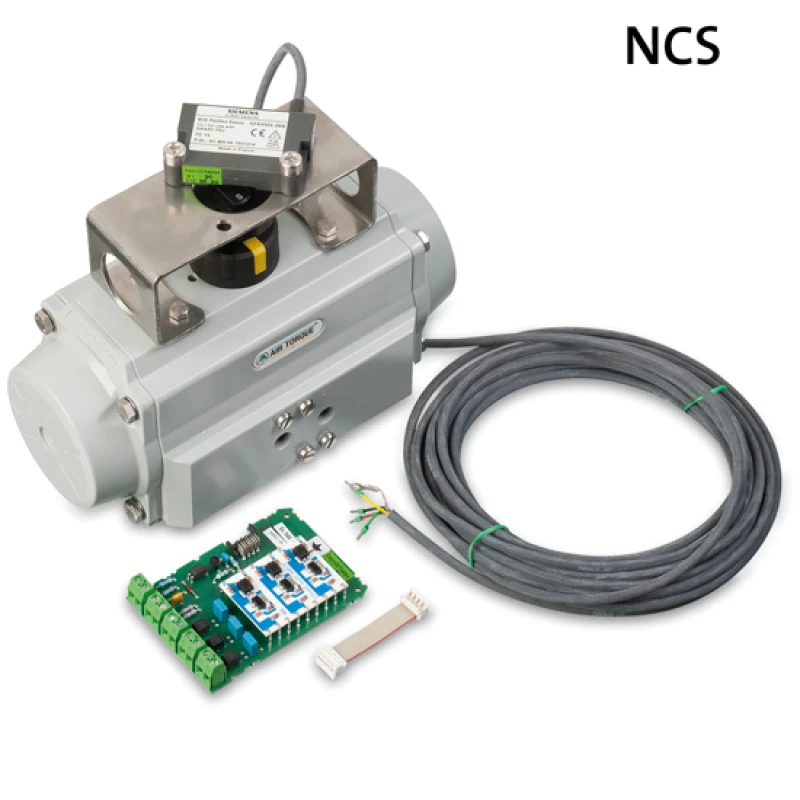

With the Non Contact Sensor (NCS) there is the possibility to mount the positioner separately from the aquator, among other things very suitable for heavy vibrations.
The PS 2 positioner comes standard with a comprehensive diagnostic function.

Type	PS 2
Material	Polycarbonate, fiberglass reinforced
Enclosure protection class	IP65
Pressure	1.4 to 7 bar
Medium	instrument air, oil, water and dust free (< 30µm)
Max flow rate	5.5 m³/h at pressure drop from 6 to 5 bar
Leakage valves	< 6x10^-4m³/h
Air consumption
idle	< 3,6x10^-2m³/h

Position indication	'Angle' indication both mechanically and on LCD display
Cable Entry	2x M20
Shaft connection	VDI/VDE 3845, NAMUR, STAINLESS STEEL 304

Temperature range	-30º to +80ºC
