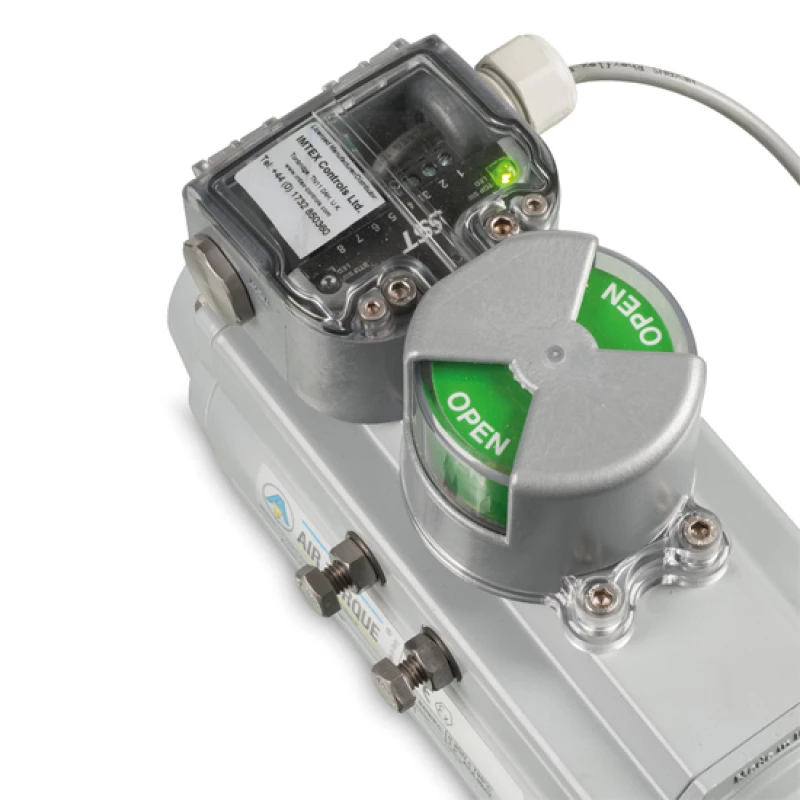

Limit switchbox Eclipse | EN 3305/4405
Fitted with 2-wire incl. switch
Suitable for: end position notification on automatic and manually operated valves
- Highly impact resistant housing.
- 2-wire ind. switches for wide range of connection voltages.
- Also for EEX ia system.
- Clear visual open/close indicator.
Urgency or questions about availability?
Also available for ASI bus systems.
Specifications
| Type | EN 3305/4405 |
| Material | Zytel |
| Enclosure protection class | IP67 |
| Switches | 2-wire open/close switches (8-125VDC/25-125VAC) |
| Max. switching current 2.0 A, continuous 0.3 A | |
| Max. leakage current 0.25 mA | |
| Terminal strip | 8-pin |
| Cable Entry | 2x M20 |
| Shaft connection | VDE/VDI 3845 |
| Temperature range | -40ºC to +80ºC |
|
|
|
