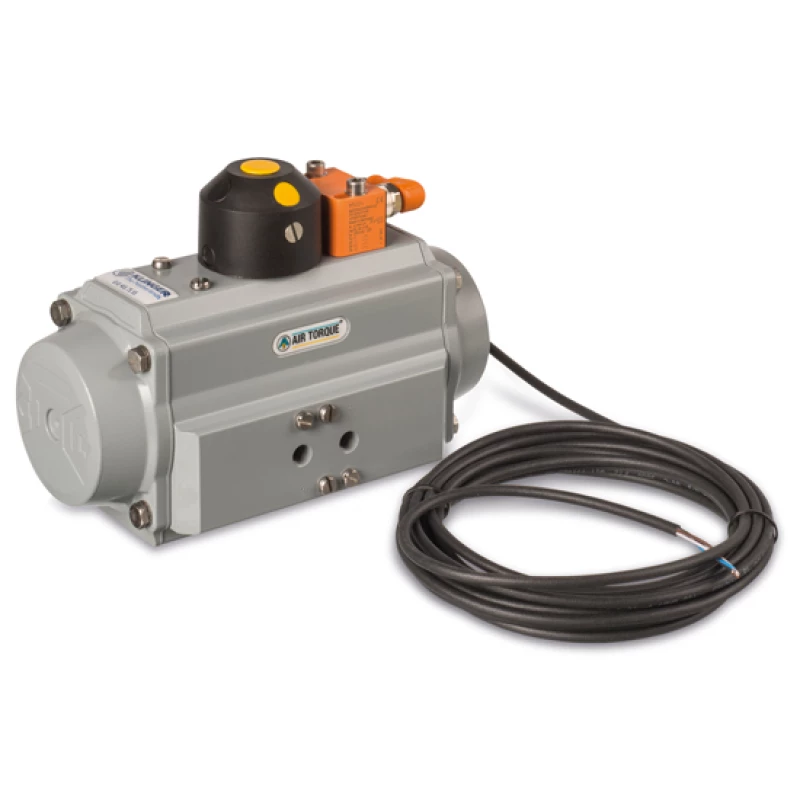

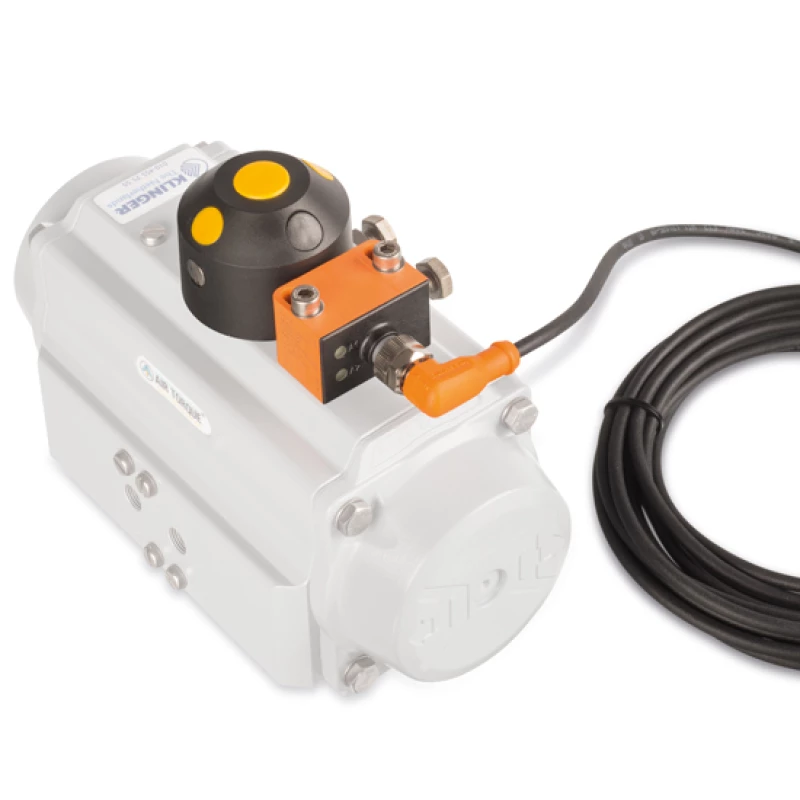

Limit switchbox IFM | Efector
Fitted with dual inductive sensor, safe area or EEx area
Suitable for: end position notification on automatic and manually operated valves
- Very compact model due to application of dual sensor.
- Mountable directly on pneumatic actuator (VDI/VDE).
- Available in safe area and EEx model .
- Can be connected directly to PLC.
- LED indication.
- Protected against short circuit and overload.
Urgency or questions about availability?
Also available
- Other types and versions of IFM
- ASI bus systems, including master unit/power supply and solenoid valve
- cylindrical sensors for linear valves
Specifications
| Type | Efector |
| Material | PBTP |
| Enclosure protection class | IP67 |
| Connection | 2 or 4 thread system |
| Operating voltage | 10..36 VDC (EEx ia 8.2V) |
| Switching current | max 250 mA (EEx ia 2mA) |
|
|
|
| Temperature range | -20ºC to +80ºC |
|
|
|
| Zone | see table |
