Limit switches Pepperl+Fuchs | F25/F31
Fitted with dual inductive sensor, safe area or EEx area
Suitable for: end position notification on automatic and manually operated valves
- Very compact limit switchbox due to application of the P&F dual sensor.
- The 3-thread model can be connected directly to a PLC.
- Mount directly on the actuator.
- Available in safe area- and EEx ia model .
For actuators from type AT351U onwards, model F31 should be used.
Options
- plug with molded cable
- ASI bus system
- model with connection for controlling solenoid valve
Specifications
| Type | F25/F31 |
| Material | Plastic |
| Enclosure protection class | IP67 |
| Switches | |
| Dual sensor | NBN3-F...-E8 3/4-thread cable |
| NBN3-F...-Z8 2x 2-thread cable | |
| NBN3-F...-N4 2x 2-thread cable | |
|
|
|
| Temperature range | NBN3 -25ºC to +70ºC |
| NCN3 -25ºC to +100ºC | |
|
|
|
|

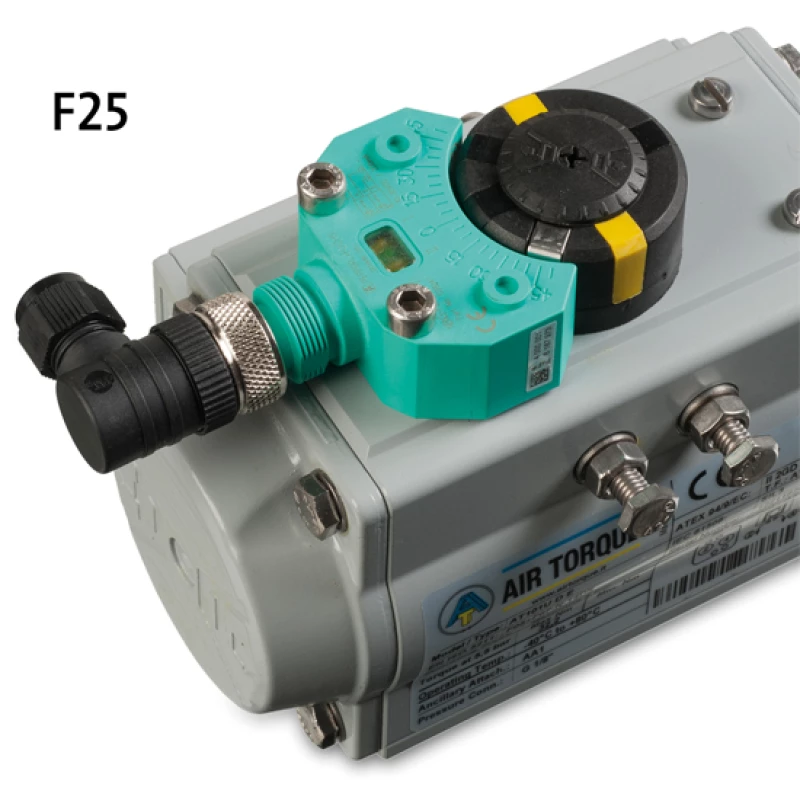

F25 limit switch to be used with standard Air Torque position indicator (AT045U-AT301U)
|
|
|

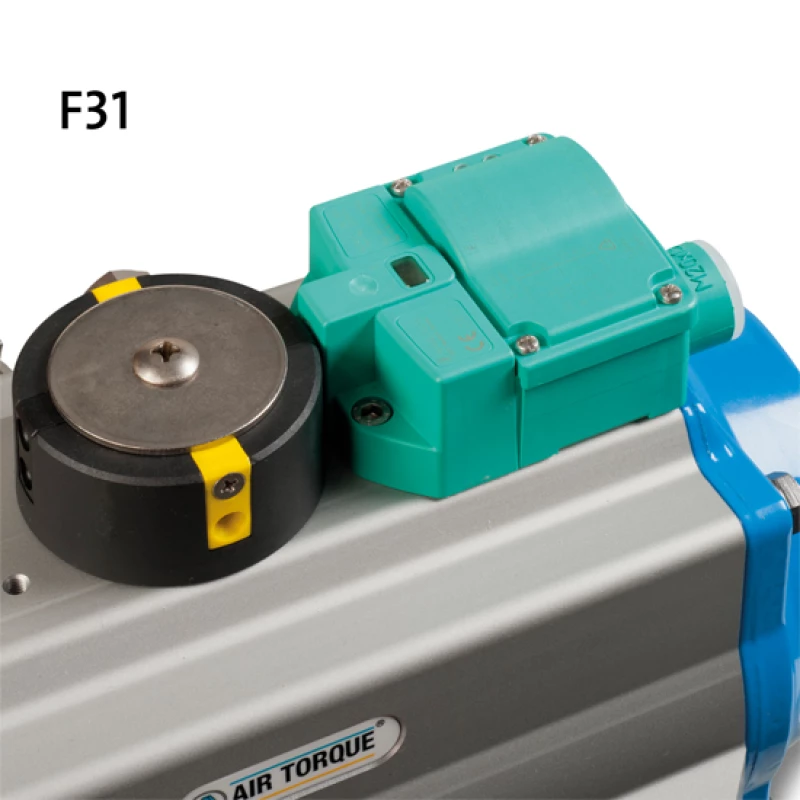

F31 limit switch to be used with standard Air Torque positon indicator (AT351U-AT1001U)
|
|
Contact
For more information about our automation + mounting kit for our appendages, please contact:
