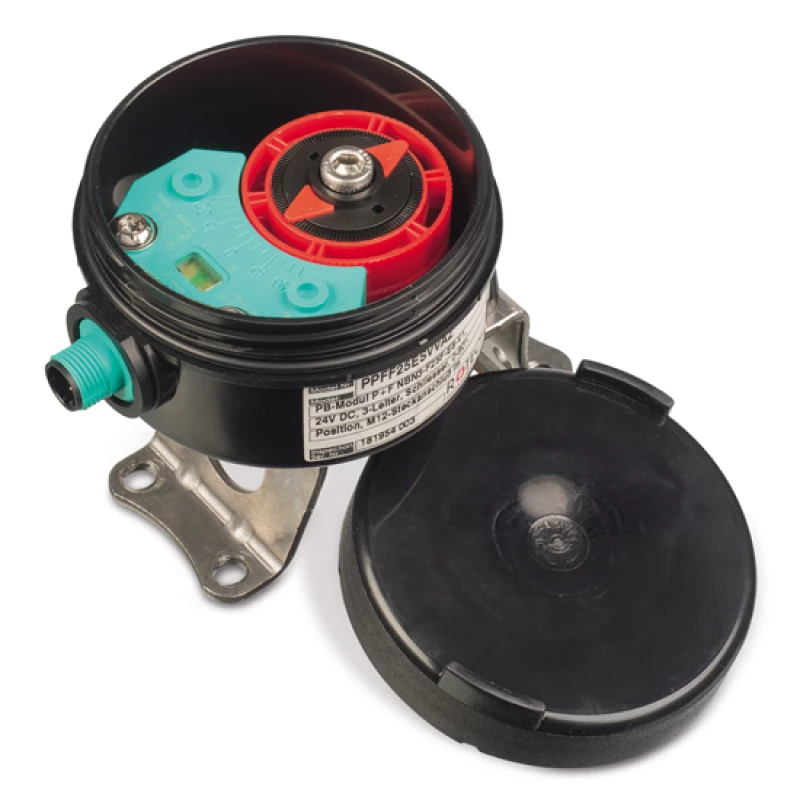

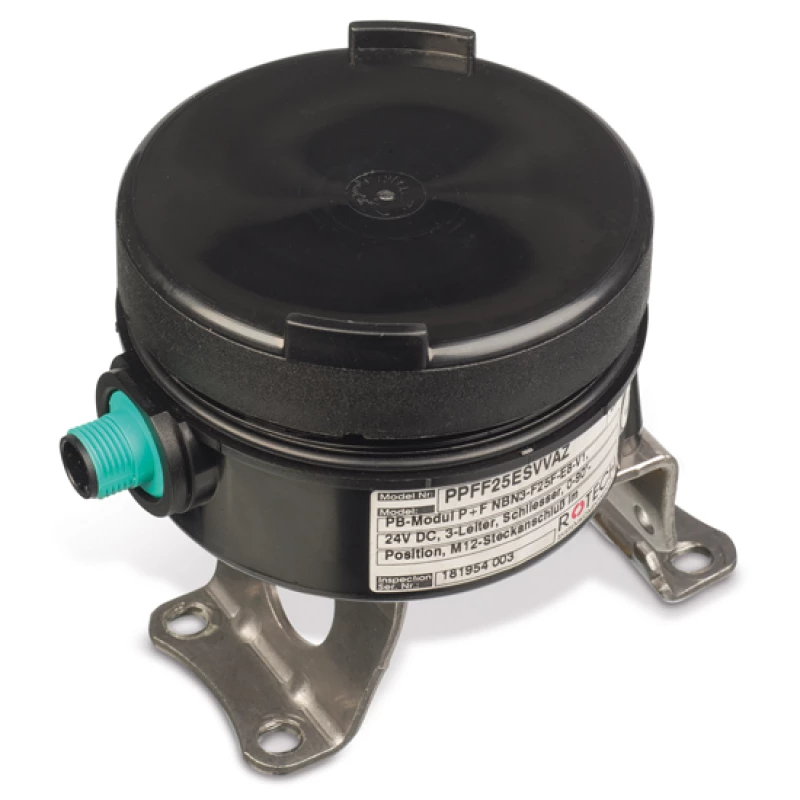

Limit switchbox Proxibox | PPFF25EVAZ
Fitted with dual inductive sensor
Suitable for: end position notification on automatic and manually operated valves
- Very compact limit switchbox.
- The 3-thread model can be connected directly to a PLC.
- A simple mechanical construction makes this limit switchbox very service-friendly and economical.
- Scope: (petrochemical) industry.
- The switches are adjustable over 360º.
- Even at low temperatures, this housing is highly impact resistant.
Specifications
| Type | PPFF25EVAZ |
| Material | Vestamid |
| Cover | Vestamid |
| Enclosure protection class | IP65, switch IP67 |
| Switches | Dual sensor, for 4- (3-) core cable |
| Cable Entry | Plug connector M12 x 1 (4-pole) |
| Mounting bracket | Stainless steel X5CrNi18-10 |
| Shaft connection | NAMUR, plastic |
|
|
|
| Temperature range | -25ºC to +70ºC |
Contact
For more information about our automation + mounting kit for our appendages, please contact:
