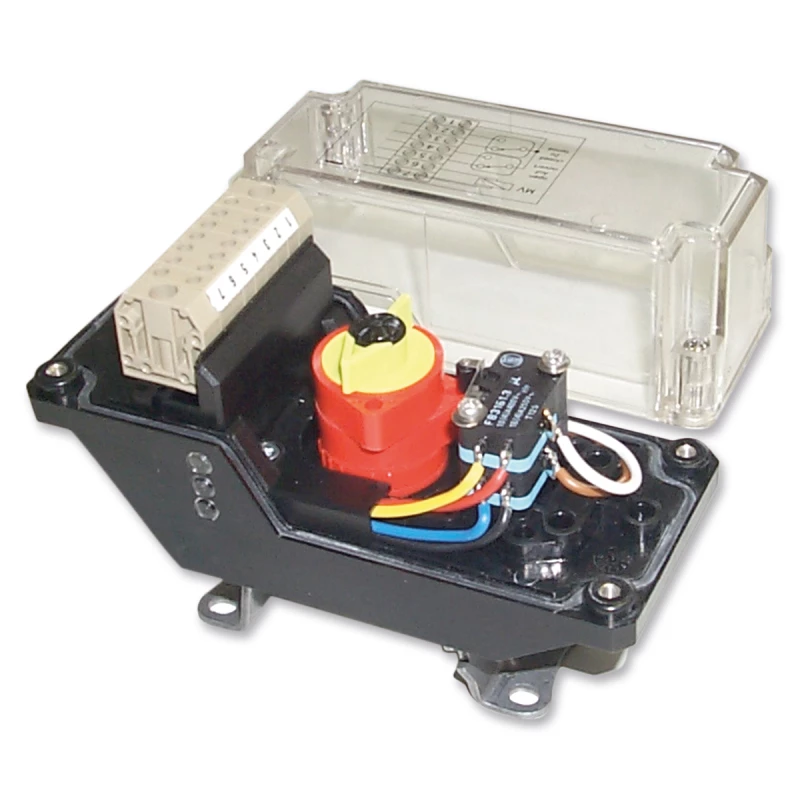

Limit switchbox mechanical V3 | TCR3MVAZ
Fitted with mechanical V3 NO/NC switches or inductive EEx switches
Suitable for: end position notification on automatic and manually operated valves
- Standard end position detector fitted with two switches for open/close signaling.
- Application area: industry.
- The switches are adjustable over 360º.
- Even at low temperatures, this housing is highly impact resistant.
Urgency or questions about availability?
Specifications
| Type | TCR3MVAZ |
| Material | Vestamid |
| Cover | Makrolon (transparent), at EX model black |
| Enclosure protection class | IP65 |
| Terminal strip | Safe area 6-pole, gray |
| EEx ia 6-pin, blue | |
| Cable Entry | 1x M20, including cable gland |
| Mounting bracket | Stainless steel X5CrNi18-10 |
| Shaft connection | NAMUR, plastic |
|
|
|
| Maximum deviation | 1,5º |
|
|
|
| Temperature range | -20ºC to +85ºC |
Contact
For more information about our automation + mounting kit for our appendages, please contact:
