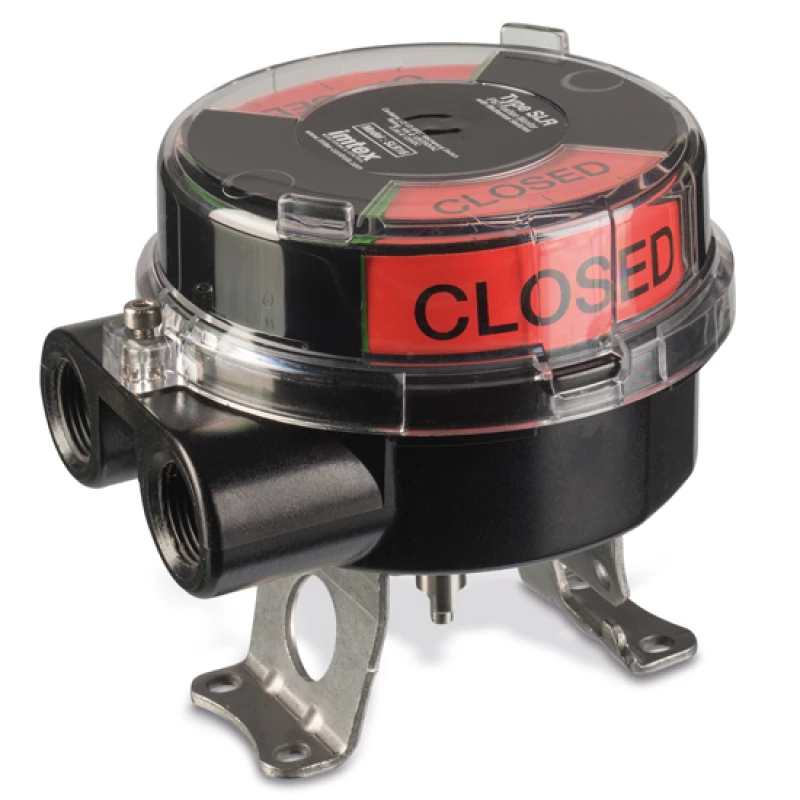

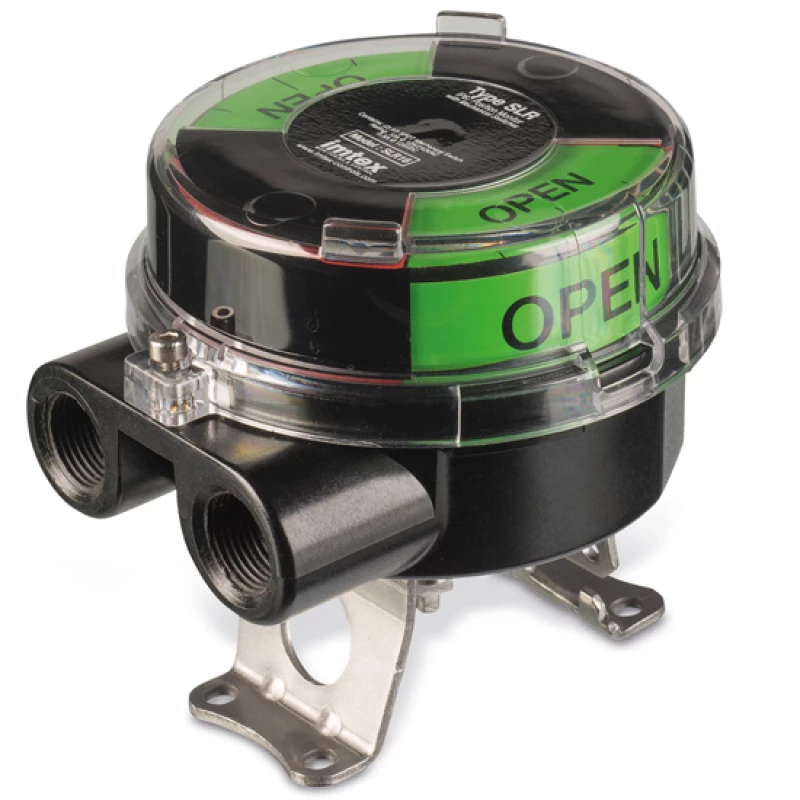

Limit switchbox Solar | SLR 1605

Suitable for: end position notification on automatic and manually operated valves

This very solid and impact-resistant design limit switchbox has two switches for open/close notification.
Inductive switches available for explosive environments.
The switches are individually adjustable over 360º without the use of tools.
Even at low temperatures, this housing is highly impact resistant.
Features visual open/close indicator.

Urgency or questions about availability?

For Air Torque actuators from type AT351U, larger mounting kits are required: NAMUR size 2 or 4.

Specifications

Type	SLR 1605
Material	Polycarbonate
Enclosure protection class	IP67
Switches	2x V3 mechanical or inductive switches, for 2 or 3 wire cable
Terminal strip	6-pin
Cable Entry	2x M20, excluding cable gland
Mounting bracket	STAINLESS STEEL
Shaft connection	VDI/VDE, STAINLESS STEEL

Temperature range	-40ºC to +80ºC
Zone	Safe area

Contact

For more information about our automation + mounting kit for our appendages, please contact:

appendages@klinger.nl
