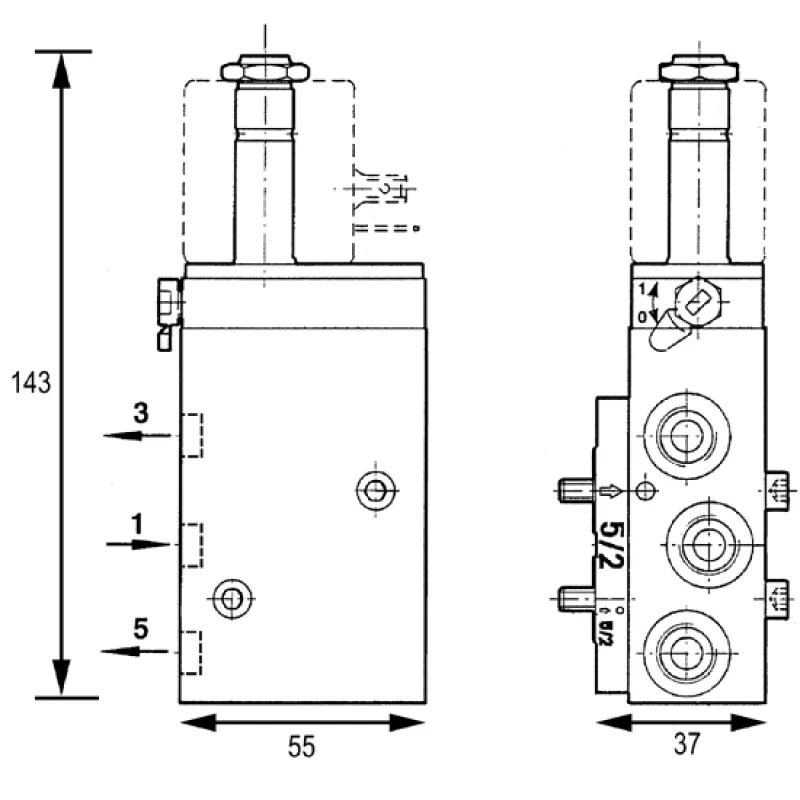

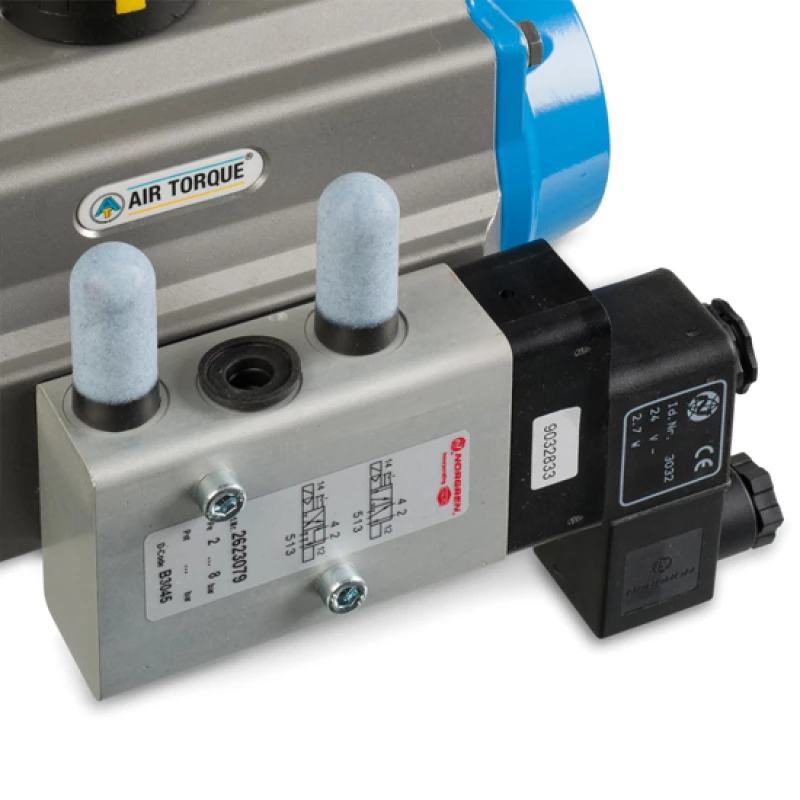

Norgren solenoid valve (Herion) | 26230 / 97100
5/2 or 3/2 function, NAMUR
Suitable for: pneumatic actuators
- Applicable for double- and single-acting pneumatic actuators.
- In one model the 5/2 and the 3/2 function are united, with the 3/2 function the springs of the pneumatic actuator are protected by returning instrument air to the springs.
Also available
- plug with LED indicator
- non NAMUR valves for pneumatically operated linear valves
- silencers, choke plates, pneumatic couplings, etc.
- direct working versions
- material stainless steel or bronze
Specifications
| Type | 26230 / 97100 |
| Material | Aluminum, anodized |
| Gaskets | NBR |
| Enclosure protection class | IP65 (with plug) |
| Working pressure | 2 to 8bar |
| Kv value | 1.2m³/h |
| Connections | G1/4" NAMUR / G1/8" |
| Construction method | 3/2 or 5/2 using exchangeable plate |
|
|
|
| Emergency Hand Control | manual, with locking possibility |
|
|
|
| Temperature range | -10ºC to +50ºC / -15ºC to 50ºC |
| Zone | See table |
