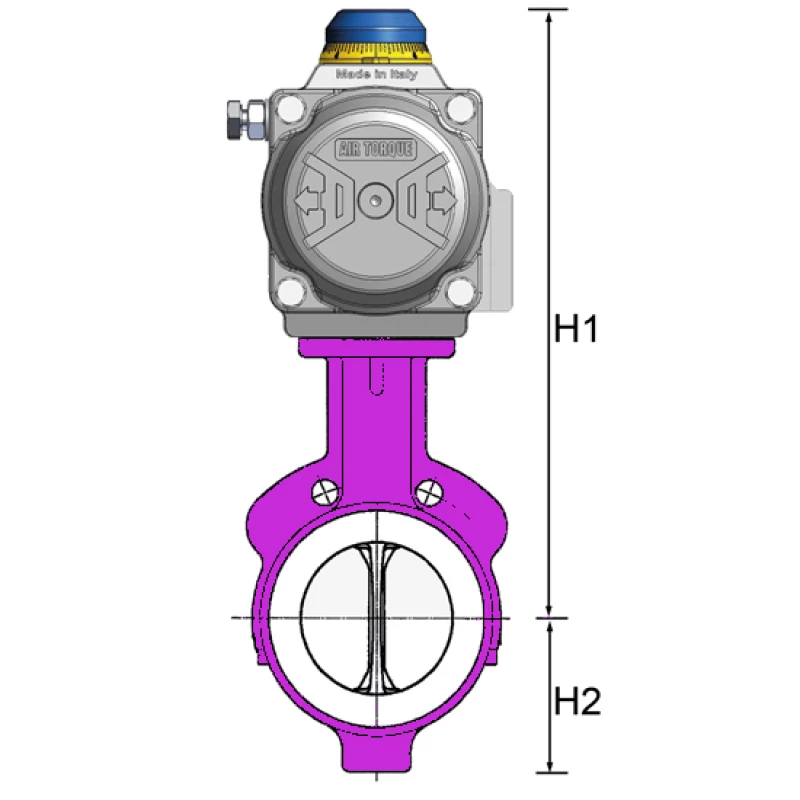

Automation set ChemValve butterfly valve | ChemValve KP-1015 / 1016 / 1012

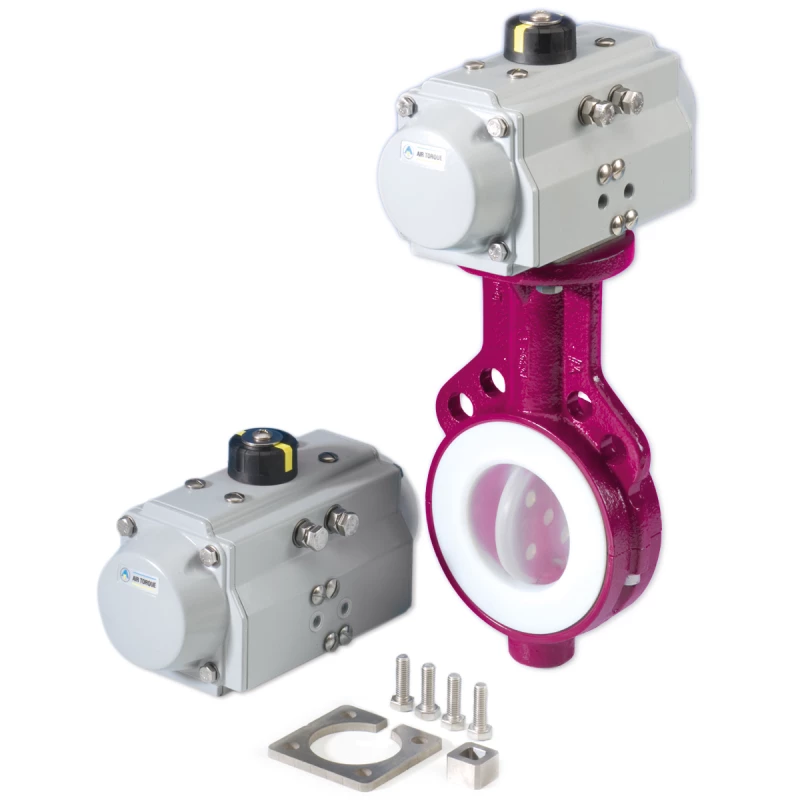

Consisting of: actuator, mounting flange and square adapter
Suitable for: all automated applications
- Air Torque pneumatic actuators are fully standardized.
- Excellent corrosion resistance due to additional PTFE coating and stainless steel 316 spindle and bolts.
- Adjustable travel stops for open and closed position.
- Actuators are sized at 6 bar air supply pressure.
Options
- limit switches, solenoid valve, positioner etc.
- set with Air Torque drive coating A available on request
Specifications
| Type | ChemValve KP-1015 / 1016 / 1012 |
| Material | |
| Mounting flange | STAINLESS STEEL |
| Actuator | See Air Torque pneumatic actuators, coating E |
| Mounting bracket | STAINLESS STEEL |
| Coupling bush | STAINLESS STEEL |
| Butterfly valve | KP-1015, KP-1016 and KP-1012 |
|
|
|
|
In case of ordering a butterfly valve with automation set, provide
|
|
|
- Item no. butterfly valve (see section Butterfly valves)
|
|
|
- Item no. automation set
|
|
Contact
For more information about our butterfly valves, please contact:
