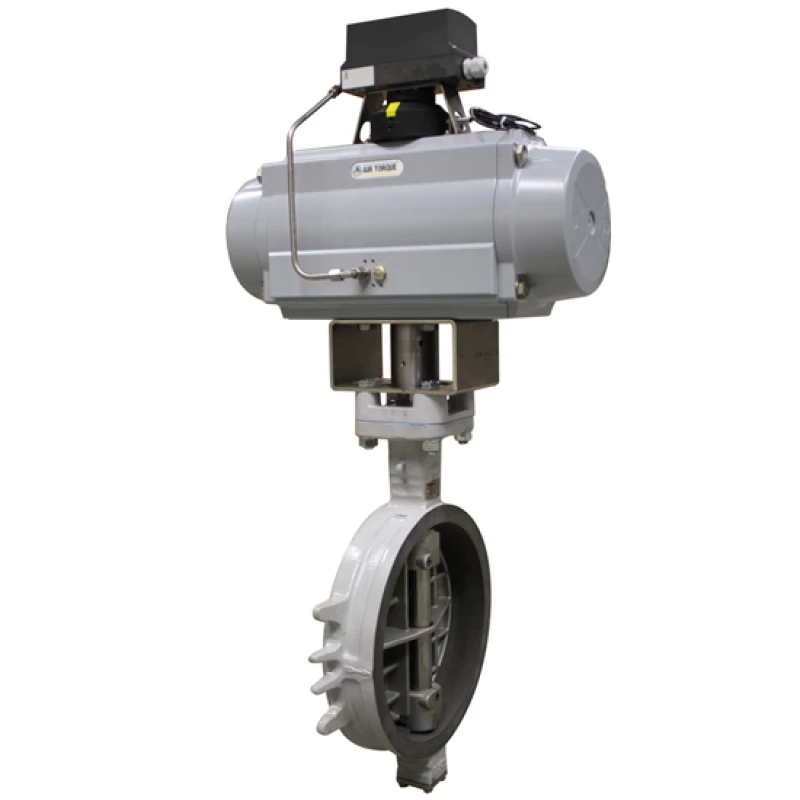

Automation set Tomoe butterfly valve | Tomoe KP-1063 / 1064
Consisting of: actuator coating A or E,mounting bracket and coupling bush
Suitable for: all automated applications
- Air Torque pneumatic actuators are fully standardized.
- Excellent corrosion resistance.
- Adjustable travel stops for open and closed position.
- Actuators are sized at 6 bar air supply pressure.
Options
- limit switches, solenoid valve, positioner etc.
Specifications
| Type | Tomoe KP-1063 / 1064 |
| Material | |
| Mounting bracket | STAINLESS STEEL |
| Coupling bush | STAINLESS STEEL |
| Actuator | See Air Torque pneumatic actuators, coating A or E |
| Butterfly valve | KP-1063 Nodular cast iron, double eccentric |
| KP-1064 stainless steel, double eccentric | |
|
|
|
|
In case of ordering a butterfly valve with automation set, provide
|
|
|
- Item no. butterfly valve (see section Butterfly valves)
|
|
|
- Item no. automation set
|
|
Contact
For more information about our butterfly valves, please contact:
