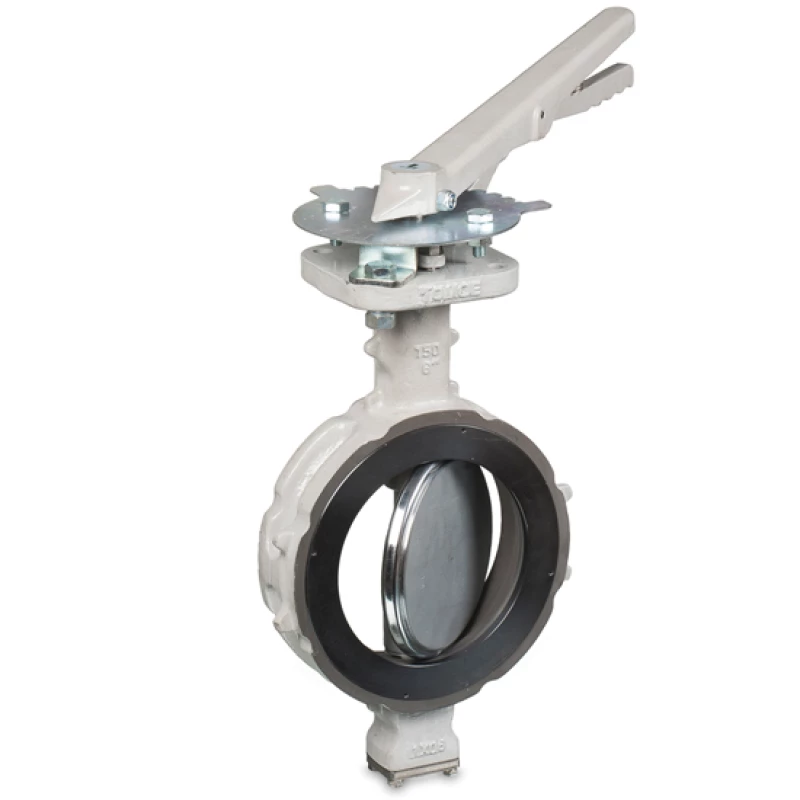

Nodular cast iron double eccentric Tomoe butterfly valve | KP-1063

Suitable for: heavy duty applications in chemical and process industries

Wafer butterfly valve for flanges PN10, PN16, PN25 or ANSI 150#.
Good alternative to ball valve, globe valve or gate valve. No dead space.
Easy to fit with automatisation.
Good control characteristics.
Tomoe Series 302Y / 304Y.
Equipped with top flange according to ISO 5211 for easy mounting with an actuator.

Note: For pneumatically operated butterfly valve, see: Automation kit Tomoe butterfly valves with Air Torque actuators.

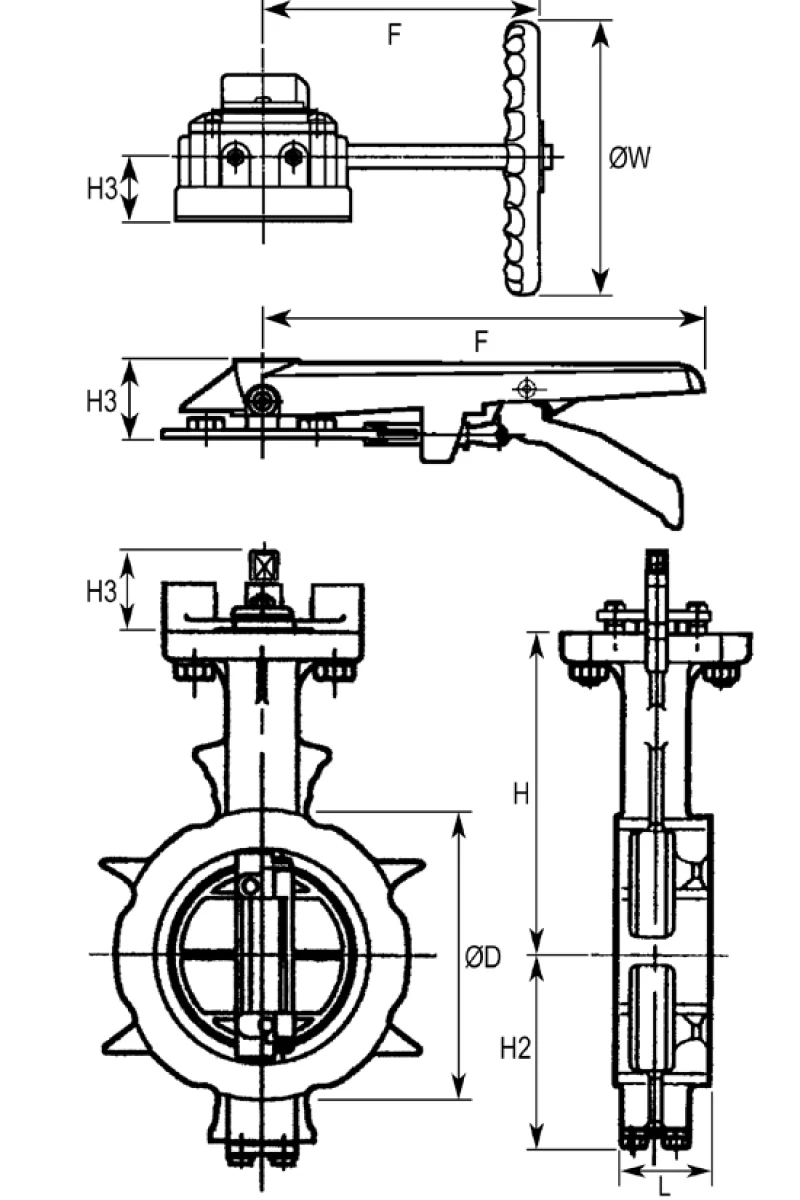

Specifications

Type	KP-1063
Material	Nodular Cast Iron EN-GJS-450-10
Pressure class	ISO PN 20 / ANSI 150#
Disc	Stainless steel EN 10212-4, sealing surface hard chrome plated
Shaft	STAINLESS STEEL EN 10088-3
Seat	RPTFE (carbon reinforced PTFE) or stainless steel EN 10213-4
Handle	ductile iron
Gearbox	Cast iron, stainless steel wormshaft and cast iron hand wheel.
Face to face	DN50 to DN300 EN558-1 series 20
Connection	PN 16

Seal	RPTFE ISO 5208 class A
	Metal ISO 5208 class C

Maximum working pressure	20 bar in preferred direction
	10 bar in countercurrent direction

Temperature	RPTFE -20ºC to 232ºC depending on working pressure
	metal -20ºC to 250ºC depending on working pressure

Also available with housing made of steel.
