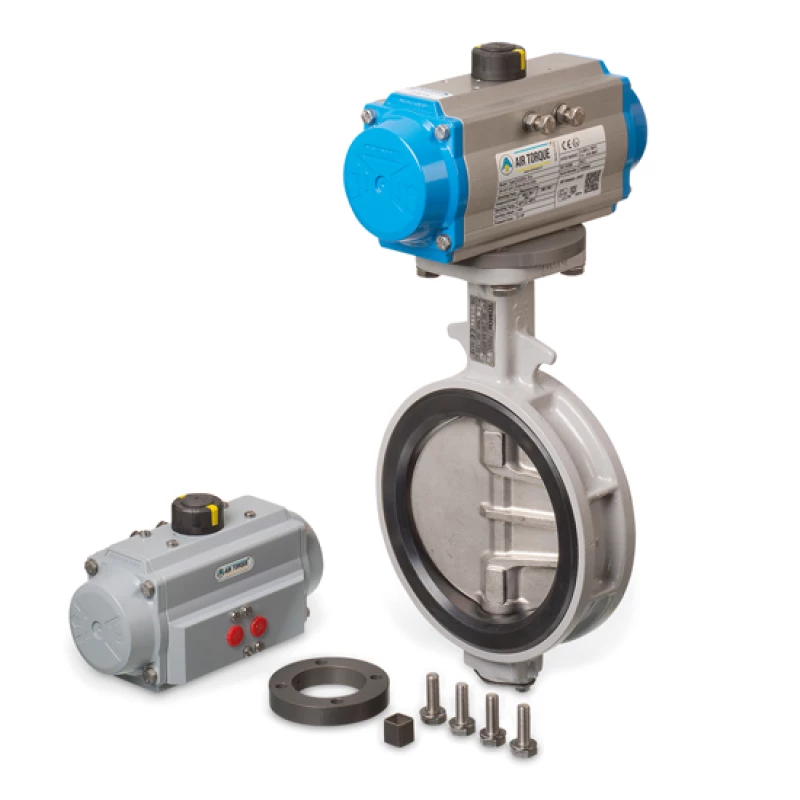

Automation set Tomoe butterfly valve
Consisting of: actuator coating A and E, mounting flange and square adapter
Suitable for: all automated applications
- Air Torque pneumatic actuators are fully standardized.
- Excellent corrosion resistance.
- Adjustable travel stops for open and closed position.
- Actuators selected at control pressure of 6 bar.
Options
- limit switches, solenoid valve, positioner etc.
Specifications
| Type | |
| Material | |
| Mounting flange | Stainless steel or aluminum hard anodized |
| Actuator | See Air Torque pneumatic actuators, coating A and E |
| Mounting bracket | Stainless steel (DN250/DN300 spring return only) |
| Coupling bush | Stainless steel (DN250/DN300 spring return only) |
| Butterfly valve | KP-1060 Wafer type model |
| KP-1062 Wafer type model with threaded holes | |
|
|
|
|
In case of ordering a butterfly valve with automation set, provide
|
|
|
- Item no. butterfly valve (see section Butterfly valves)
|
|
|
- Item no. automation set
|
|
Contact
For more information about our Tomoe butterfly valves for control application, please contact us at:
