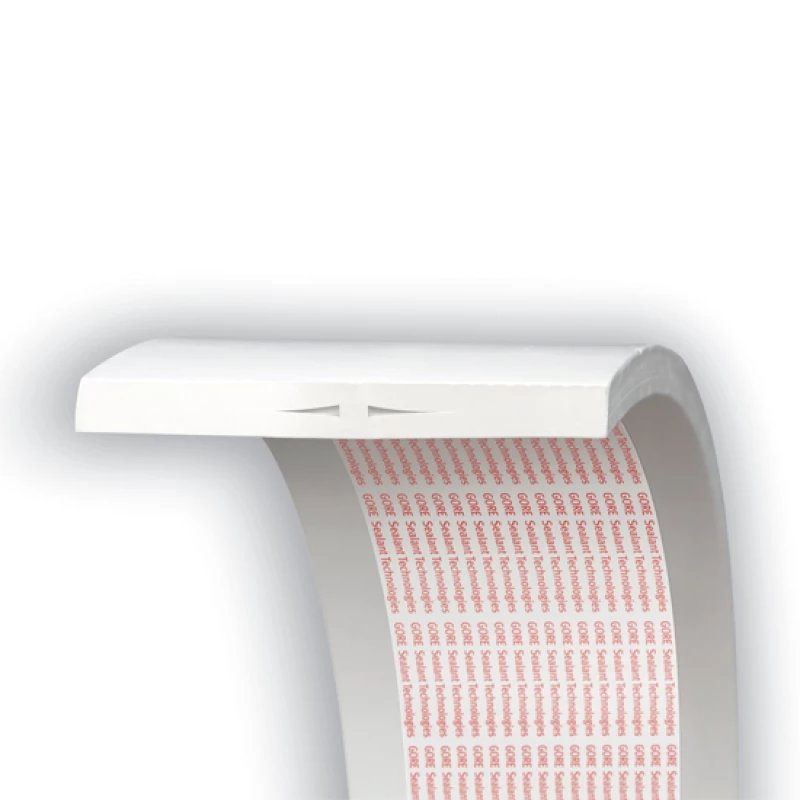

GORE®Gasket Tape | Series 1000
Multidirectional expanded PTFE with adhesive backing type Series 1000
Suitable for: virtually all media and flange connections, including where only low bolt loads are available. Enamel mixers, drums, columns, storage and receiving tanks
- Self-adhesive tape to facilitate mounting.
- High compressibility.
- Chemical resistance of PTFE.
- Creep and flow.
- Resistant to vacuum and high pressures.
- Wide temperature range.
Specifications
| Type | Series 1000 |
| Material | 100% ePTFE multidirectional expanded |
| Color | white |
|
|
|
| Compressibility according to ASTMF36A | 60% |
| Springback according to ASTMF36A | 12% |
| Pressure resistance | > full vacuum to 10 bar (advisory). |
| Temperature range (long-term) | -60ºC / +230ºC continuous. |
|
|
|
| Chemical resistance | see resistance list |
| For other information | www.gore.com |
|
|
|
|
DIN dimensions according to EN 1514-1
|
|
|
ANSI dimensions according to B16.21
|
|
|
|
|
|
FOR INDUSTRIAL USE ONLY.
|
|
|
Not suitable for use in the manufacture, processing or packaging of
|
|
|
foods, pharmaceuticals, cosmetics or medical products.
|
|
|
|
|
