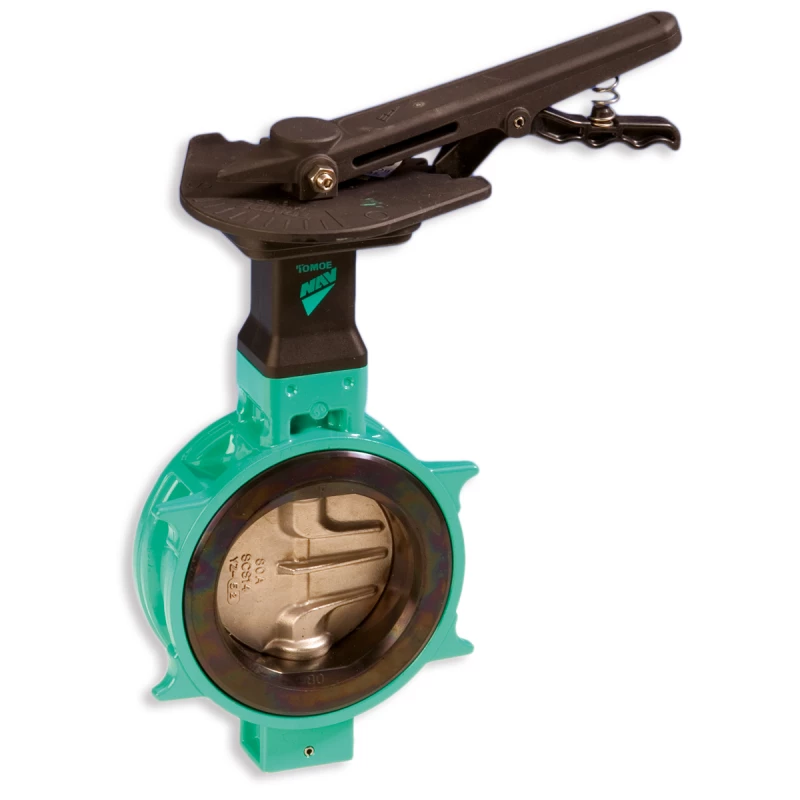

Aluminum Tomoe butterfly valve | KP-1010
Wafer type butterfly valve with replaceable patented rubber seat, lightweight, with profile disc
Suitable for: water treatment, potable water, heating systems, food, power plants, plastic pipe installation, tank containers, swimming pools, breweries and tank transport.
- Wafer type butterfly valve for flanges PN10, PN16 or ANSI 150#.
- Low operating torque, perfect sealing and long lifetime due to cosine curve seat.
- High Kv value due to construction seat, patented cosine curve seat, large bore diameter and new profiled disc.
- Excellent leaktight sealing perfomance.
- Equipped with top flange according to ISO 5211 for easy mounting with an actuator.
- Tomoe Series 700Z.
Note: For pneumatically actuated butterfly valve, see: Automation Sets Butterfly Valves with Air Torque actuators.
Options
- PPS valve blade (stainless steel core with coating)
- silicone seat (DN50 to DN200)

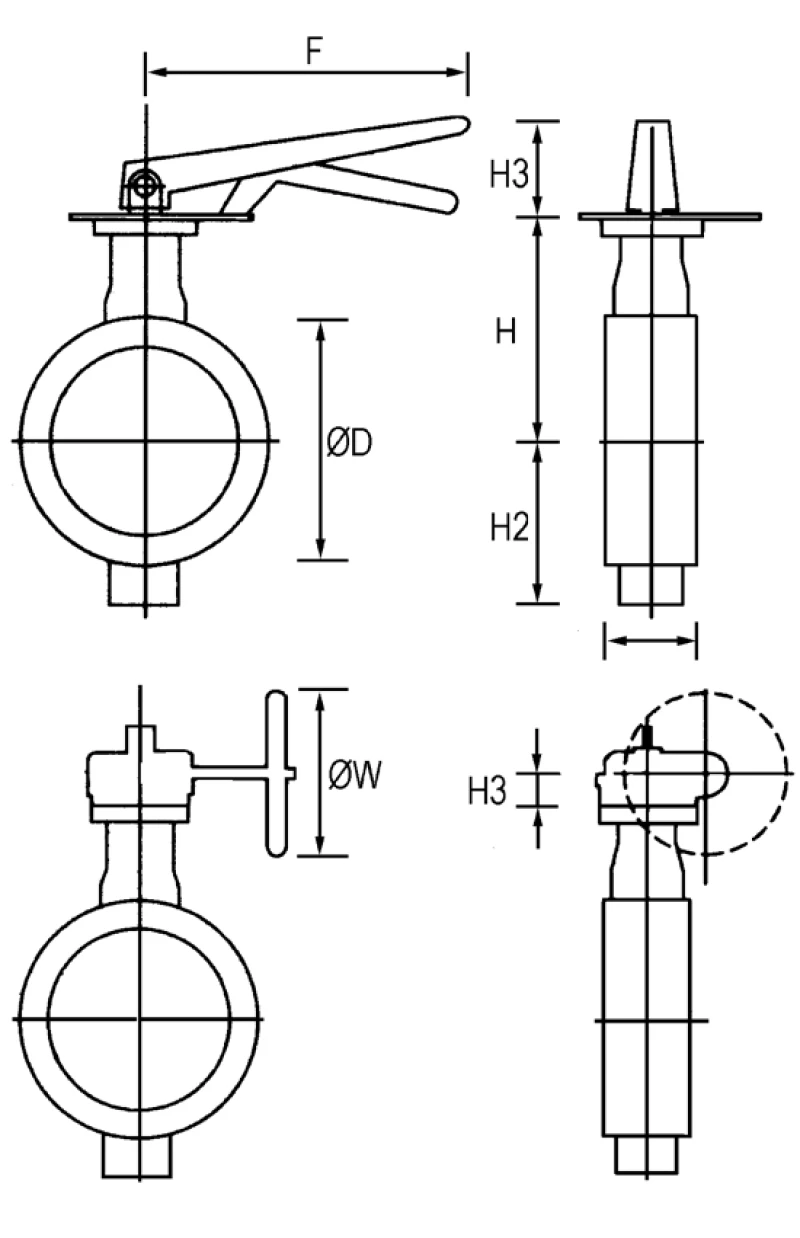

Specifications
| Type | KP-1010 |
| Material |
Aluminum body with epoxy melamine powder coating Plastic upper part |
| Pressure class | PN 10 |
| Disc | Stainless steel EN 10213-4 grade GX5CrNiMo19-11-2( AISI316) |
| Shaft | Stainless steel EN1.4034 / X20Cr13 ( AISI 420) |
| Seat | EPDM or NBR |
| Handle | Plastic |
| Gearbox | Plastic, stainless steel wormshaft and cast iron handwheel |
| Face to face | EN 558-1 series 20 |
| Connection | DIN PN 10 |
|
|
|
| Flow rate | liquid up to 3m/sec |
|
|
|
| Temperature | NBR -10 to 80ºC |
| EPDM -20 to 120ºC | |
