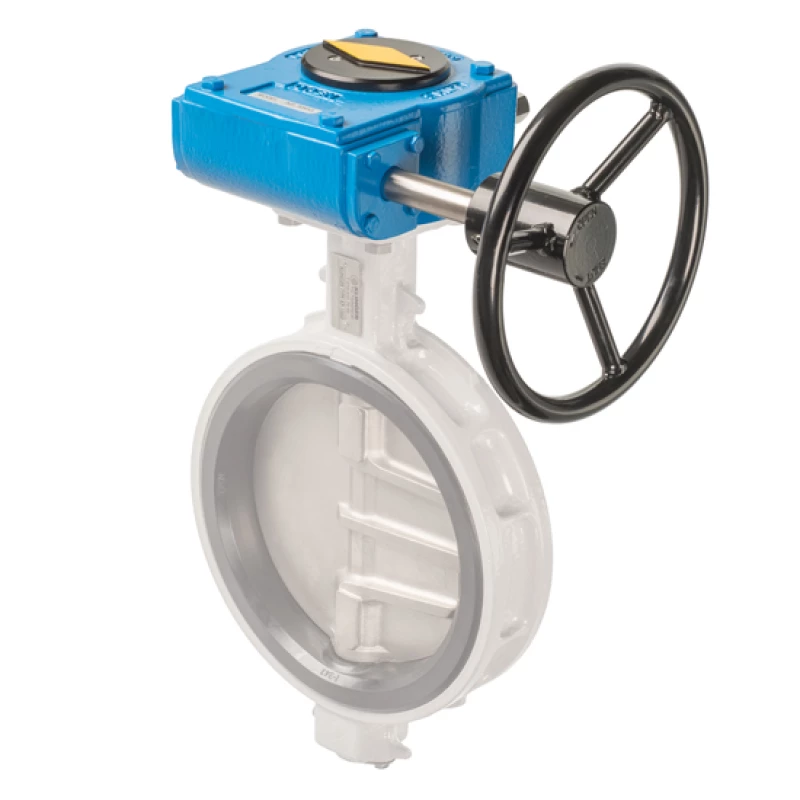

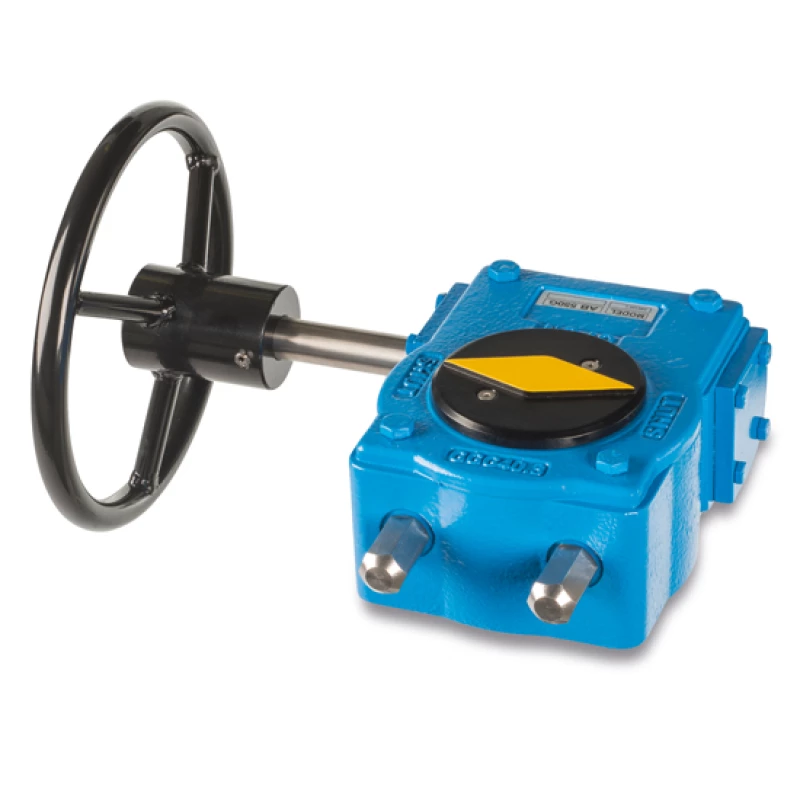

Cast iron worm gearbox | AB
Connection ISO 5211
Suitable for: ball valves, butterfly valves and plug valves.
- Heavy duty model, especially suitable for heavy duty applications.
- Special coating possible for offshore application.
- Easy to adjust +/- 5º.
- Available from 330Nm to 32,000Nm.
Also available
- other connection sizes
- different connection, shaft with keyway etc.
- booth notification
- in ductile iron
Specifications
| Type | AB |
| Material | Cast iron GG25 Steel (protected) |
| Shaft | AISI 303 STAINLESS STEEL |
| Wormwheel | ductile iron GGG 40 |
| Handwheel | epoxy-coated steel |
| Position indication | steel |
| Connection | ISO 5211 with square under 45º |
|
|
|
| Enclosure protection class | IP 68 |
| Temperature | -20ºC to 120º |
|
|
|
|
Complete assembly kits available for Ballostar, INTEC, Pekos and Starline ball valves.
|
|
|
Consisting of worm gearbox, coupling and bridge piece
|
|
|
|
|
