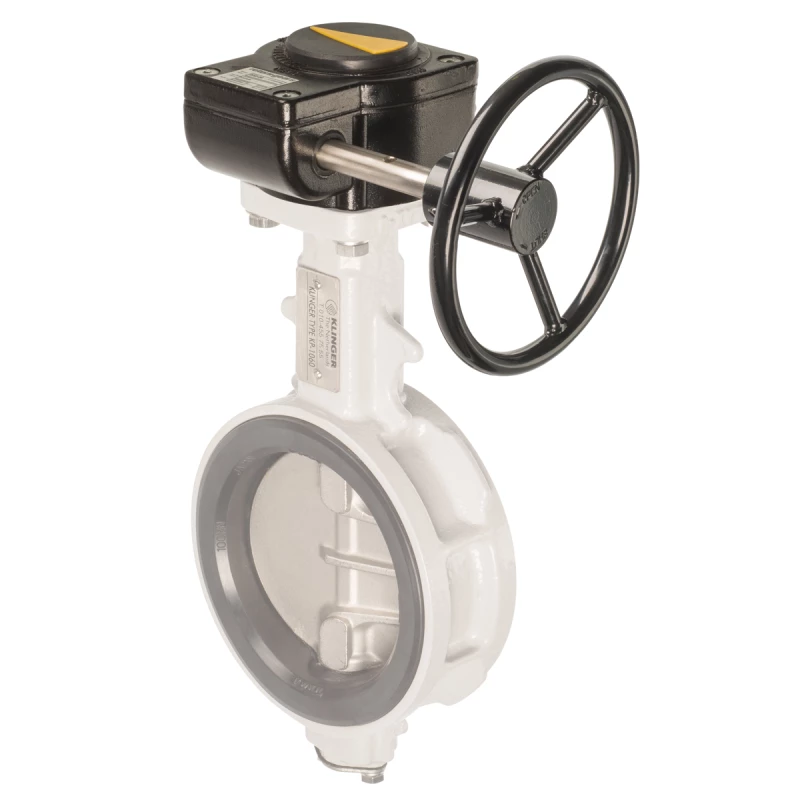

Aluminum worm gearbox | 232
Connection ISO 5211
Suitable for: ball valves, butterfly valves and plug valves
- Lightweight.
- Easy to adjust +/- 5º.
Also available
- STAINLESS STEEL model
- other connection sizes
- different connection, shaft with keyway etc.
- booth notification
Specifications
| Type | 232 |
| Material | Aluminum Grade 104 |
| Shaft | Steel (protected) |
| Wormwheel | ductile iron GGG 40 |
| Handwheel | sheet steel with epoxy coating |
| Position indication | plastic PP |
| Connection | ISO 5211 with square under 45º |
|
|
|
| Enclosure protection class | IP 65 |
| Temperature | -20ºC to 120º |
|
|
|
|
Complete assembly kits available for Ballostar, INTEC, Pekos and Starline ball valves.
|
|
|
Consisting of worm gearbox, coupling and bridge piece.
|
|
|
|
|
