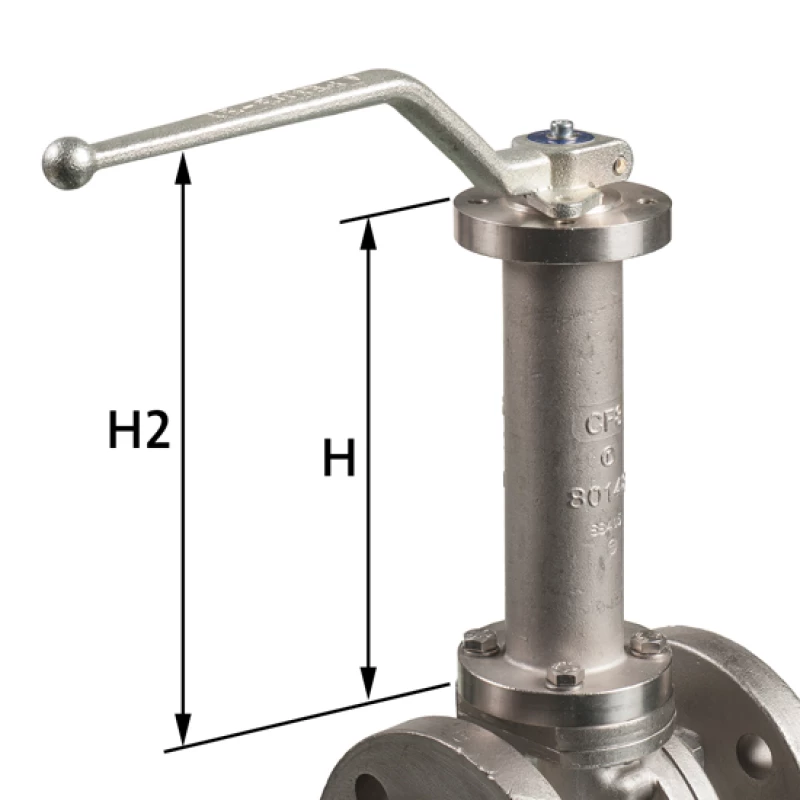

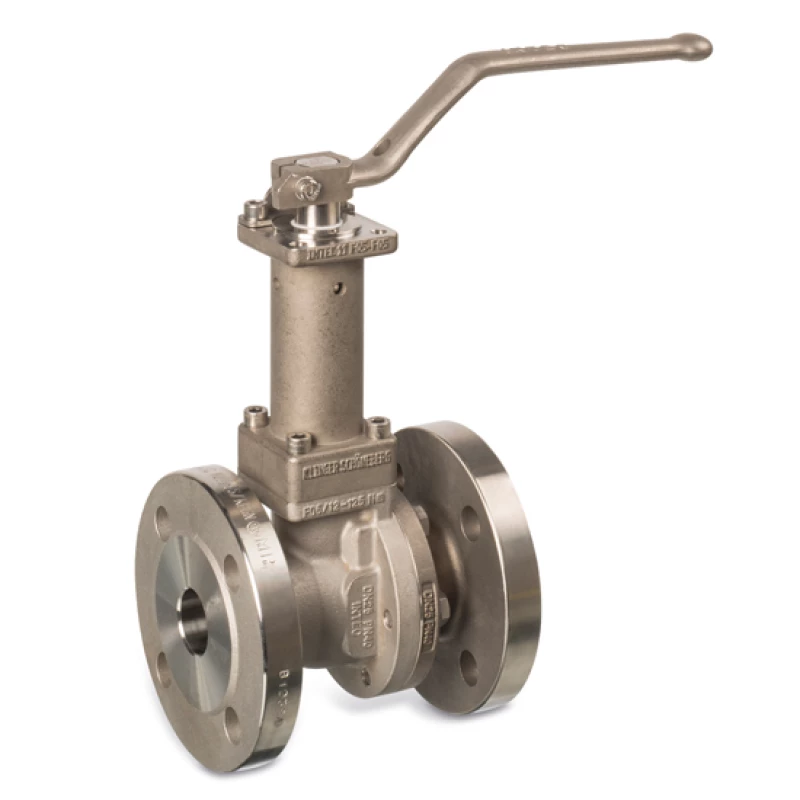

Steel and stainless steel spindle extension | Bearings
Connection ISO 5211
Suitable for: KP-ball valves type: 2502, 2506, 2508, 2510, 2512, 2522, 2520, 2525, 2528, 2535, 2538
- Solid spindle extension, no additional load on the stuffing box.
- Top of spindle extension according to ISO 5211.
Urgency or questions about availability?
Specifications
| Type | Bearing |
| Material |
Steel 1.0402, galvanized stainless steel 1.4401 |
| Bearing | PTFE |
| Seal | BUNA O-ring |
| PTFE ring | |
|
|
|
|

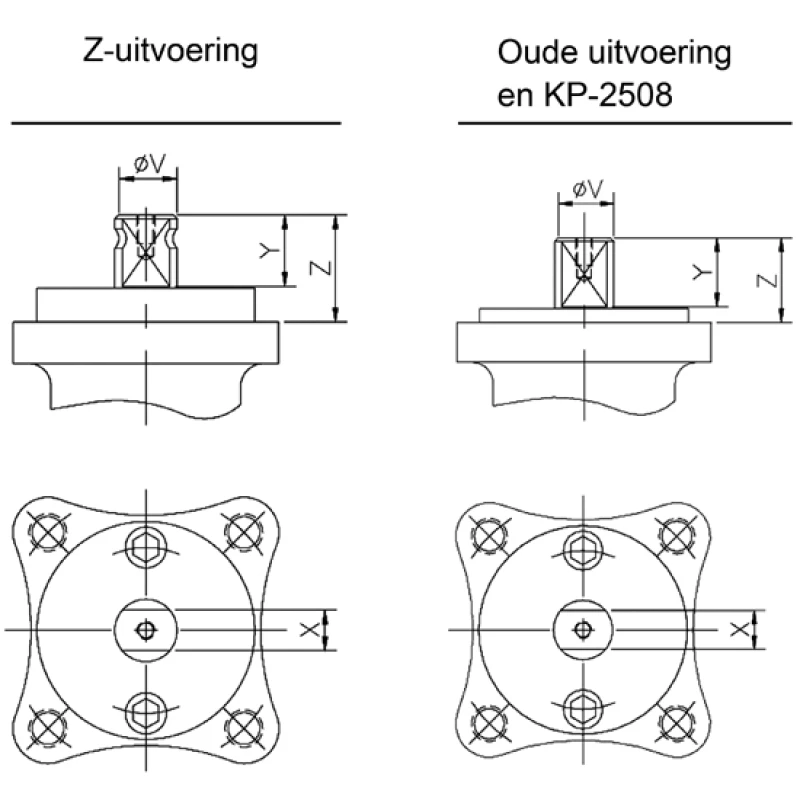

Spindle dimensions of the ball valve
|
|
|
|
|
| DN | Z-model |
| V - X - Y - Z | |
| 15 - 20 | 14 - 11 - 11 - 13,5 |
| 25 - 32 | 18 - 14 - 17 - 19,5 |
| 40 - 65 | 22 - 17 - 20 - 30 |
| 80 - 100 | 28 - 22 - 22 - 40 |
| 125 - 150 | 36 - 27 - 35 - 50 |
| 200 - 250* | 48 - 36 - 40 - 63 |
| 300 | 48 - 36 - 60 - 73 |
|
|
|
| DN | Design KP-2508* and other Pekos ball valves |
| V - X - Y - Z | |
| 15 - 20 | 12 - 8 - 13 - 16 |
| 25 - 32 | 16 - 8 - 19 - 22 |
| 40 - 65 | 20 - 10 - 22 - 25 |
| 80 - 100 | 25 - 14 - 24 - 27 |
| 125 - 150 | 34 - 19 - 35 - 38 |
| 200 - 250* | 42 - 26 - 40 - 43 |
|
|
|
|
Also available 'Non-bearing' model
|
|
