Stainless steel ball valve | KP-2606

Stainless steel ball valve | KP-2606
Stainless steel ball valve | KP-2606
gallery slider left
gallery slider right

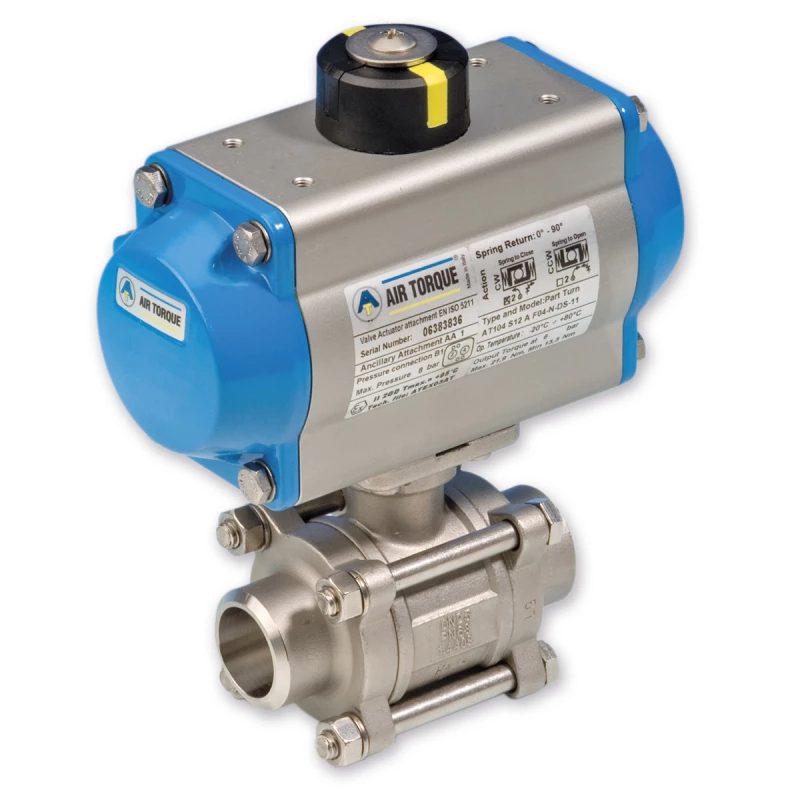

Weld fitting BW, PN 63, full bore, 3-piece, equipped with Air Torque pneumatic actuator

Suitable for: general application: water, oil and air

  • Air Torque pneumatic actuator, double-acting or spring return.
  • Easily fitted with solenoid valve, positioner or positioner.
  • Compact dimensions due to direct mounting.
Specifications
Stainless steel ball valve | KP-2606
Stainless steel ball valve | KP-2606
Previous series
The spring return actuators are spring-closed as standard. If spring-opening is required, please specify when ordering.

Also available

  • limit switchbox
  • solenoid valve
  • positioner
  • air torque actuator E-coating model

Specifications

Type KP-2606
Material STAINLESS STEEL A351-CF8M
Pressure class PN 63
Bullet RVS 1.4408
Spindle AISI 316 STAINLESS STEEL
Handle Stainless steel AISI 304/Vinyl
Div.elements PTFE
Spindle seal PTFE
Connection BW welding connection ISO1127 / DIN2463 / ANSI 36.19
Temperature -20°C to +200°C
Actuator Air Torque, coating A
