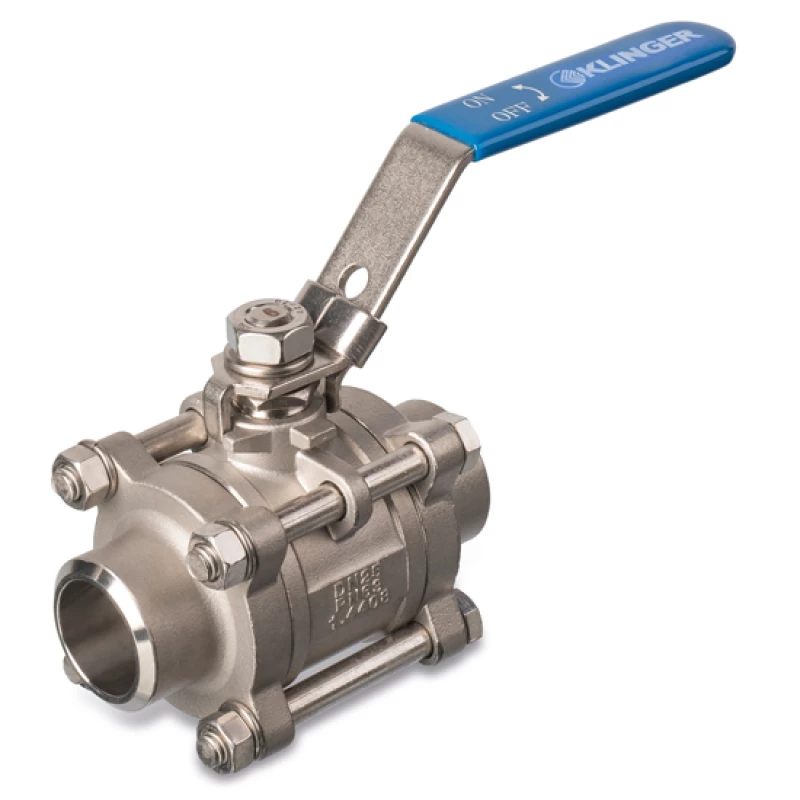

Stainless steel ball valve | KP-2604
Weld fitting BW, PN 63, full bore, 3-piece
Suitable for: general application: water, oil and air
- Lockable handle.
Urgency or questions about availability?
Also available
- complete with Air Torque pneumatic actuator, see KP-2606
Specifications
| Type | KP-2604 |
| Material | STAINLESS STEEL A351-CF8M |
| Pressure class | PN 63 |
| Bullet | RVS 1.4408 |
| Spindle | AISI 316 STAINLESS STEEL |
| Handle | Stainless steel AISI 304/Vinyl |
| Div.elements | PTFE |
| Spindle seal | PTFE |
|
|
|
| Connection | BW weld-on connection ISO1127 / DIN2463 / ANSI 36.19 |
|
|
|
| Temperature | -20°C to +225°C |
