Pneumatically operated ball valve | KP-2906

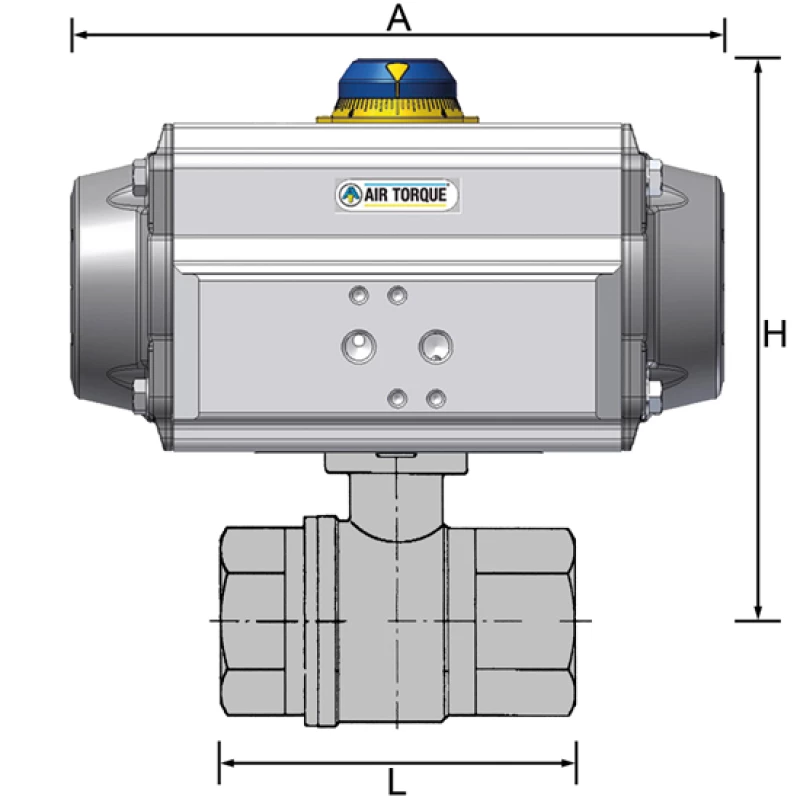

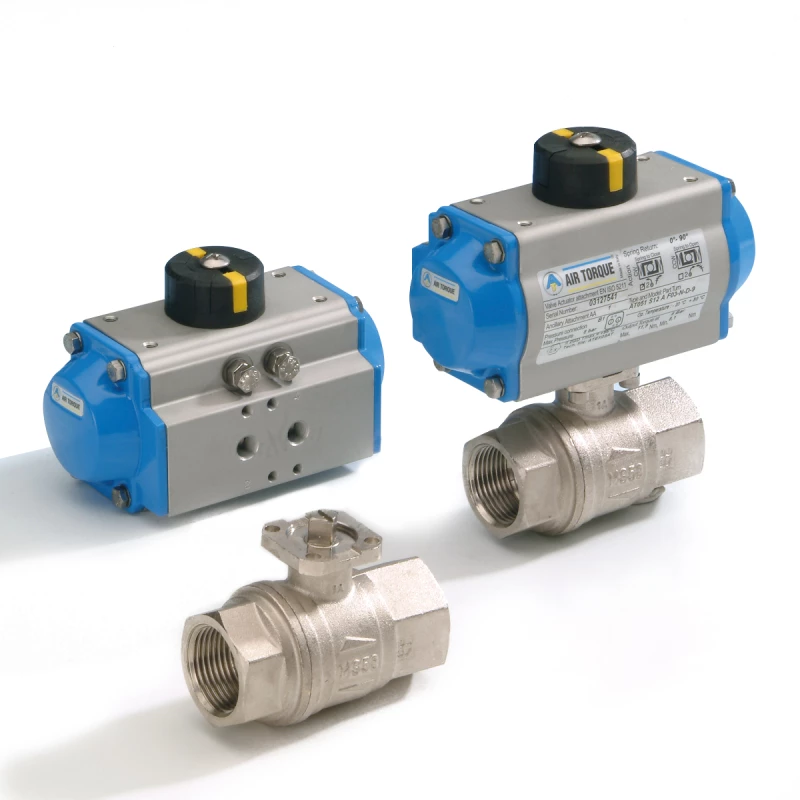

Brass ball valve equipped with Air Torque pneumatic actuator
Suitable for: water, oil and air
- Widely used for general purpose applications.
- Air Torque pneumatic actuator according to NAMUR standard.
- To be equipped with solenoid valve, end position indicator and/or positioner.
Urgency or questions about availability?
The spring return actuators are spring-closed as standard. If spring-opening is required, please specify when ordering.
Also available
- limit switchbox
- solenoid valve
- positioner
- air torque actuator E-coating model
Specifications
| Type | KP-2906 |
| Material | Brass MS58 nickel plated |
| Pressure class | PN40 |
| Bullet | Brass MS58 chrome plated |
| Boring | Full bore |
| Spindle | Brass MS58 nickel plated |
| Dept. elements | PTFE reinforced |
| Spindle seal | FPM |
|
|
|
| Connection | female thread DIN 2999 |
| Top flange | ISO 5211 |
|
|
|
| Temperature | -10ºC - 80ºC |
|
|
|
| Actuator | Air Torque coating A |
Contact
For more information about our Ball valves. please contact us at:
