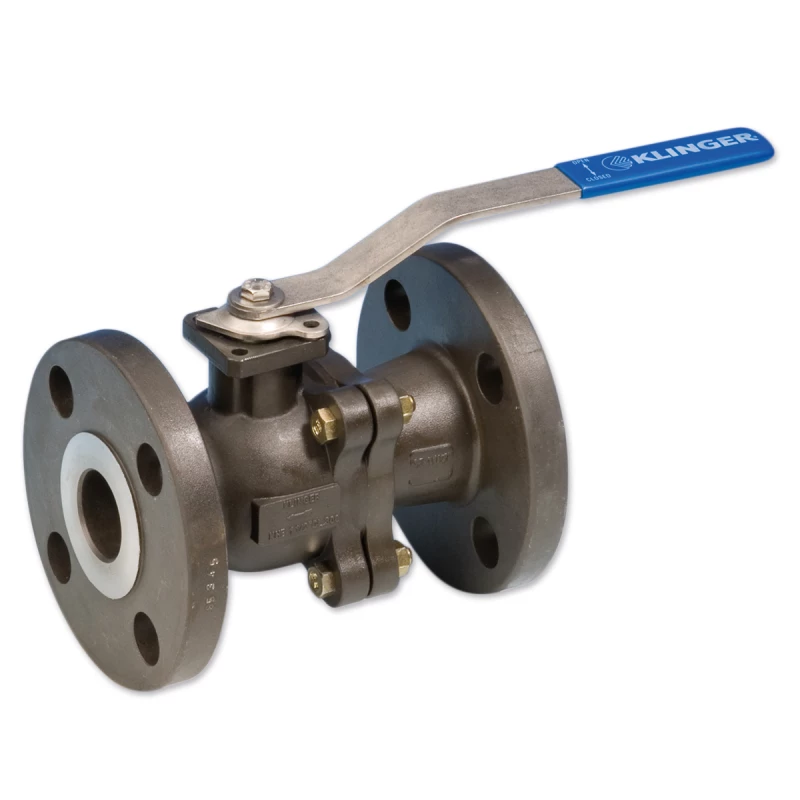

Steel KLINGER Ballostar KHE ball valve | KP-2435
Flange connection ANSI150#, full bore, 2-piece
Suitable for: water, oil, gases, steam and hydrocarbons
- Unique sealing system with spring-loaded sealing element enclosed by stainless steel.
- Equipped with ISO 5211 top flange for easy mounting of a control unit.
- Provision for locking.
- SIL2 IEC61508.
Urgency or questions about availability?
Flensaansluiting ANSI 150#
Options
- metallic sealing system, gas model
- complete with pneumatic or electric control, see automation set Ballostar ball valves
Specifications
| Type | KP-2435 |
| Material | Cast steel A2161WCB |
| Pressure class | ANSI 150# |
| Bullet | STAINLESS STEEL ASTM A351-CF8M |
| Spindle | RVS 430F |
| Handle | Stainless steel 13% Cr |
| Div.elements | KFC carbon reinforced PTFE in spring-loaded stainless steel element |
| Spindle seal | KFC/RVS labyrinth |
| TA-Luft | VDI 2440 |
|
|
|
| Fire Safe | according to EN ISO 10497 |
|
|
|
| Face to face | ANSI B16.10 |
| Connection | ANSI B16.5 |
|
|
|
| Temperature | -10°C to +300°C (bore, pressure and temperature dependent) |
