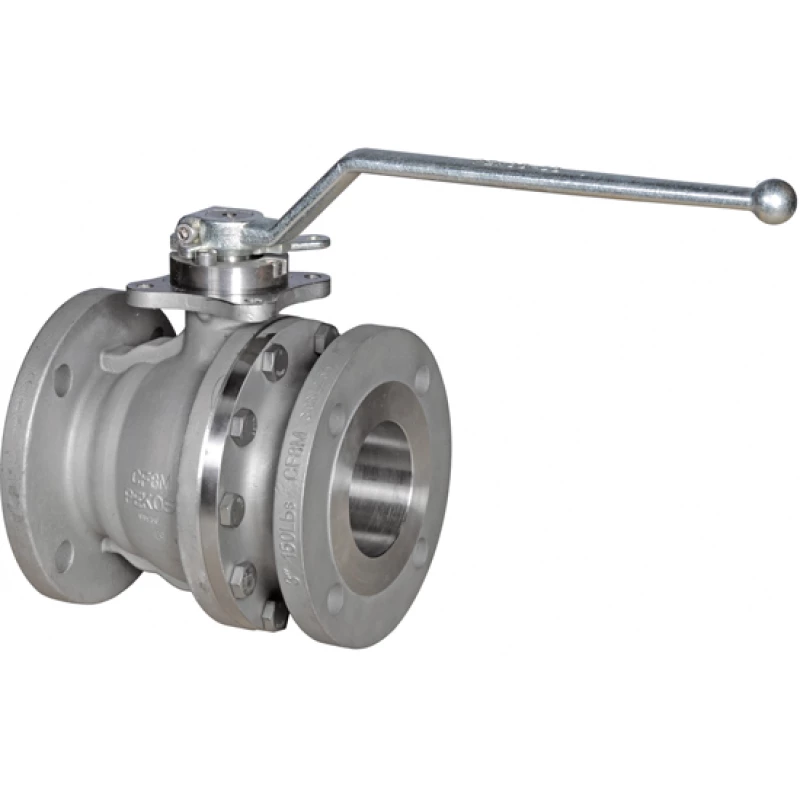

Stainless steel Pekos ball valve | KP-2538
Flange connection ANSI 150lbs, full bore, 2-piece
Suitable for: water, oil, gases, steam, hydrocarbons and acids
- Excellent for chemical and petrochemical applications.
- Fire-safe EN ISO 10497 and anti-static.
- Spindle resistant to "blow-outs.
- Features ISO 5211 top flange for easy mounting of a control unit or spindle extension.
- SIL3 IEC61508.
- ATEX 94/9/EC.
- Materials according to NACE MR0175.
Options
- graphite-filled or fiberglass-reinforced sealing elements
- ANSI 600# model
- 10" and 12" versions 150# and 300#
Also available
- complete with pneumatic or electric operation, see automation set Pekos ball valves
Specifications
| Type | KP-2538 |
| Material | STAINLESS STEEL A 351CF8M |
| Pressure class | ANSI 150lbs |
| Bullet | STAINLESS STEEL A 351CF8M |
| Spindle | AISI 316 STAINLESS STEEL |
| Handle | WCB |
| Div.elements | Modified PTFE |
| Spindle seal | PTFE / Graphite / FPM O-ring |
| House Seal | Graphite |
|
|
|
| Face to face | ANSI B 16.10 |
| Connection | Flange connection ANSI B 16.5 |
|
|
|
| Temperature | -29°C to +240°C (pressure and temperature dependent) |
|
|
|
| Note | Depending on the application, a mechanical drive is recommended from bore 8" onwards. |
