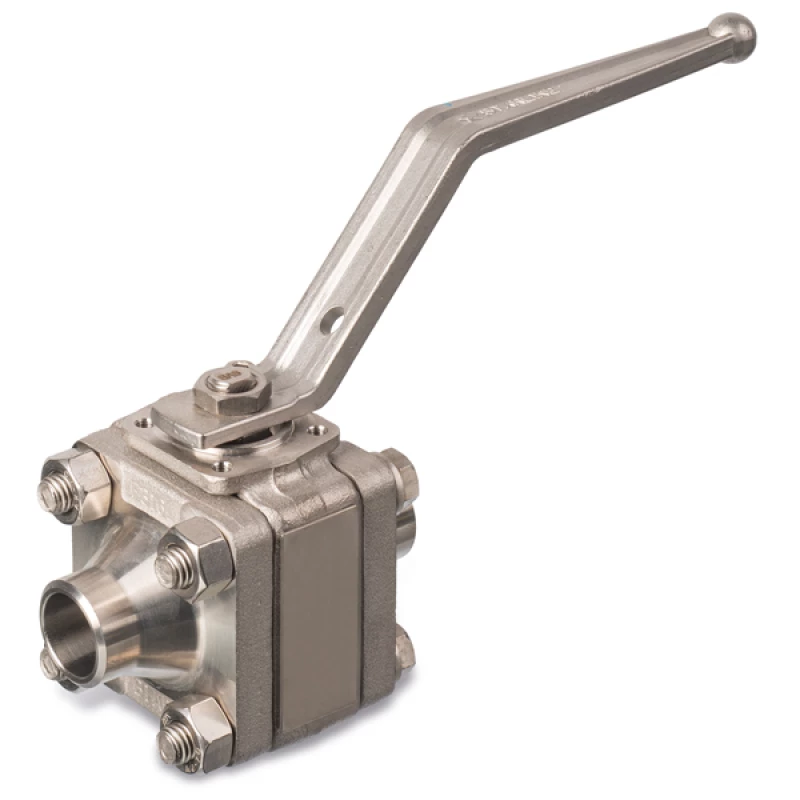

Stainless steel Pekos ball valve | KP-2588
Welding connection Butt-Weld, up to 800 Lbs, full and reduced, 3-piece
Suitable for: application in general, food and chemical industry
- Anti-static.
- Spindle anti 'blow-out'
- Construction according to AP 6D, B16.34.
- ATEX 214/34/CE.
- SIL 3IEC61508
- Equipped with ISO 5211 top flange for easy mounting of a control unit.
- Fire Safe EN ISO 10497.
- Material according to NACE MR0175
Urgency or questions about availability?
Also available
- BSPP, NPT, SW connection
- Locking device
- With pneumatic or electric operation
Specifications
| Type | KP-2588 |
| Material | AISI 316L STAINLESS STEEL |
| Pressure class | See table |
| Bullet | STAINLESS STEEL AISI 316/316L |
| Spindle | STAINLESS STEEL AISI 316/316L |
| Handle | Steel coated |
| Div.elements | PTFE with carbon graphite |
| Spindle seal | Graphite/FKM O-ring |
|
|
|
| Connection | Butt weld connection ASME B16.25 schedule 80 |
|
|
|
| Temperature | -46°C to +220°C (pressure and temperature dependent) |
Contact
For more information about our Ball valves. please contact us at:
