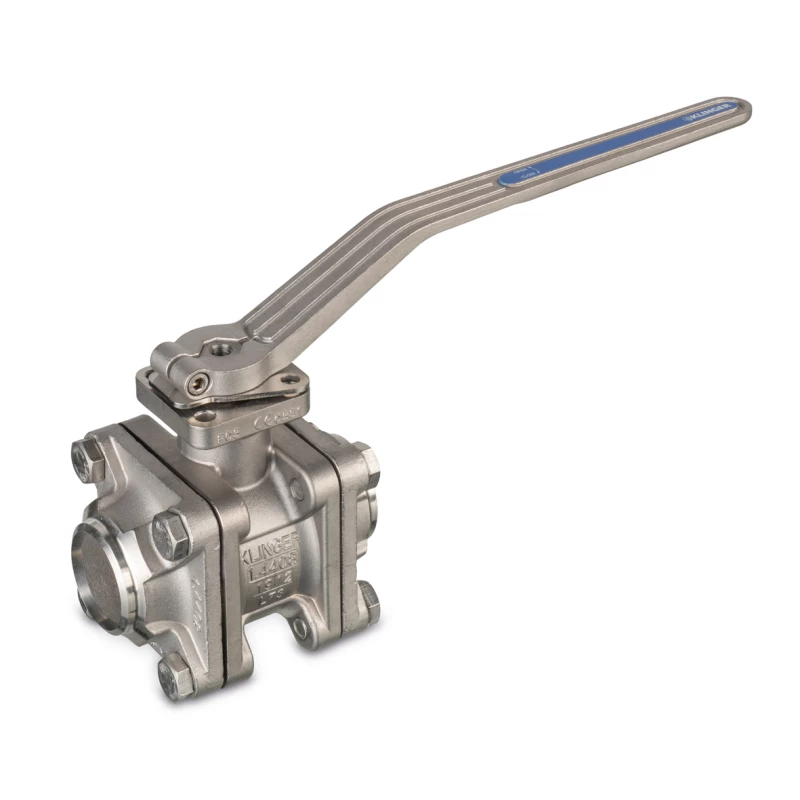

stainless steel KLINGER Ballostar ball valve | KP-2405

Suitable for: water, oil, gases, steam and hydrocarbons

Maintenance-free.
Ball with a cylindrical full bore.
Anti-blow-out spindle.
Nastable Gland packing.
Standard model TA luft VDI 2440 certified.
Robust construction excellent resistance to thermal stress.
Unique sealing system with spring-loaded sealing elements enclosed by stainless steel.
Bidirectional seal in accordance with EN12266 leakage class A.
Modular design and selection of various components.
To be maintained without disassembly from the pipe.
Anti-static design in accordance with ISO 7121 / EN1983.
Subsequent automation possible top flange in accordance with EN ISO 5211.
Lockable handle ( by padlock).

Additional information

Fire Safe model certified EN10497 and API 607, ISO15848-1 certified, (natural) gas model with ÖVGW certification, Cryogenic model with spindle extension, Oxygen model BAM certified , Double block & bleed model , High temperature model up to 400˚C.
Complete with pneumatic or electric controls, see Ballostar ball valves automation kit.

Type	KP-2405
Material	Stainless steel GX5CrNiMo19-11-2/1.4408
Pressure class	PN 40/63/100 (see table)
Bullet	STAINLESS STEEL 1.4404/1.4408
Spindle	STAINLESS STEEL 1.4404(AISI316)
Handle	RVS 1.4408
Div.elements	KFC carbon reinforced PTFE in spring-loaded stainless steel element
Spindle seal-	KFC/RVS labyrinth
House Seal	PTFE

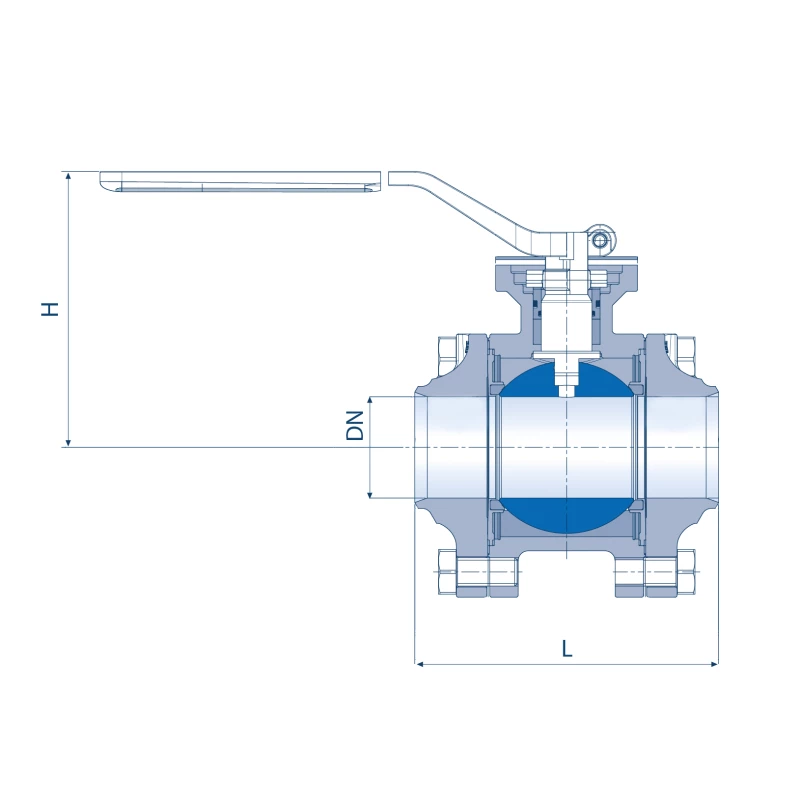

Face to face	DIN EN 12982 series 67
Connection	Butt-Weld welding connection according to DIN EN 12627

Temperature	-60°C to +300°C (pressure and temperature dependent).
