Spec. PTFE envelope gaskets | PFx

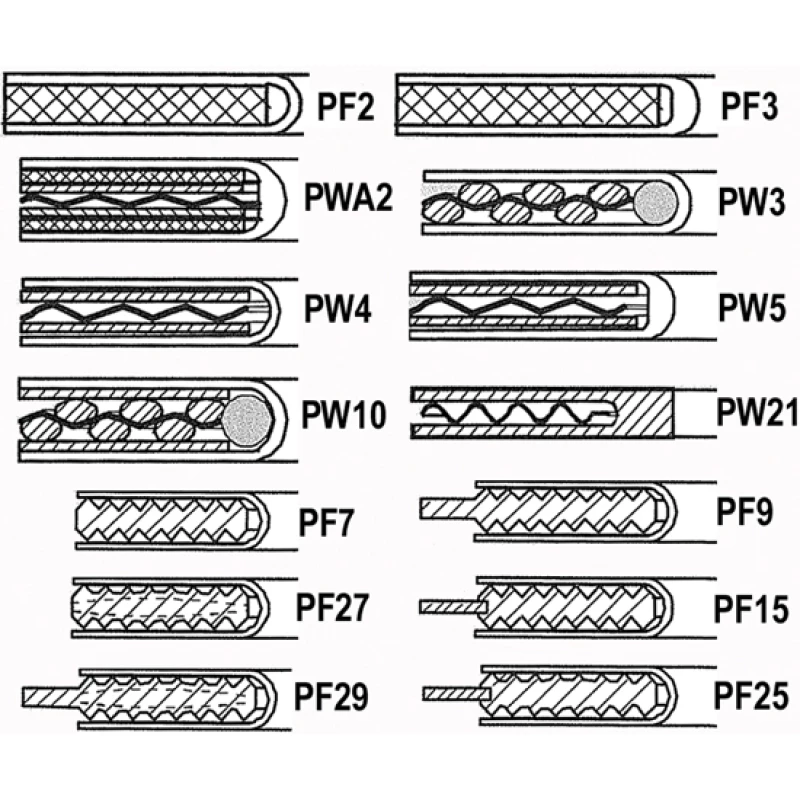

PTFE envelope gaskets various designs
Suitable for: where an insert material is required due to mechanical properties, but must be shielded from the medium chemically or due to contamination
- This gasket can be composed in terms of thickness and inlays specific to your application.
- Insert(s) can be metallic flat, profiled or corrugated, or soft materials such as KLINGER Sil/Topchem/Softchem/Grafite.
Specifications
| Type | PFx |
| Material | PTFE |
| Max. temperature | 250ºC |
| Max. pressure | 160 bar |
|
|
|
|
not together, and depending on insert(s)
|
|
|
|
|
| Common thicknesses | envelope 0.5-1.0 mm wall thickness, metal corrugated insert 1.3 mm, soft inserts 2-3 mm, metal profiled inserts 3-4 mm. |
|
|
|
|
DIN dimensions according to EN 1514-1
|
|
|
ANSI dimensions according to B16.21
|
|
Contact
For more information about our PTFE gaskets, please contact us at:
