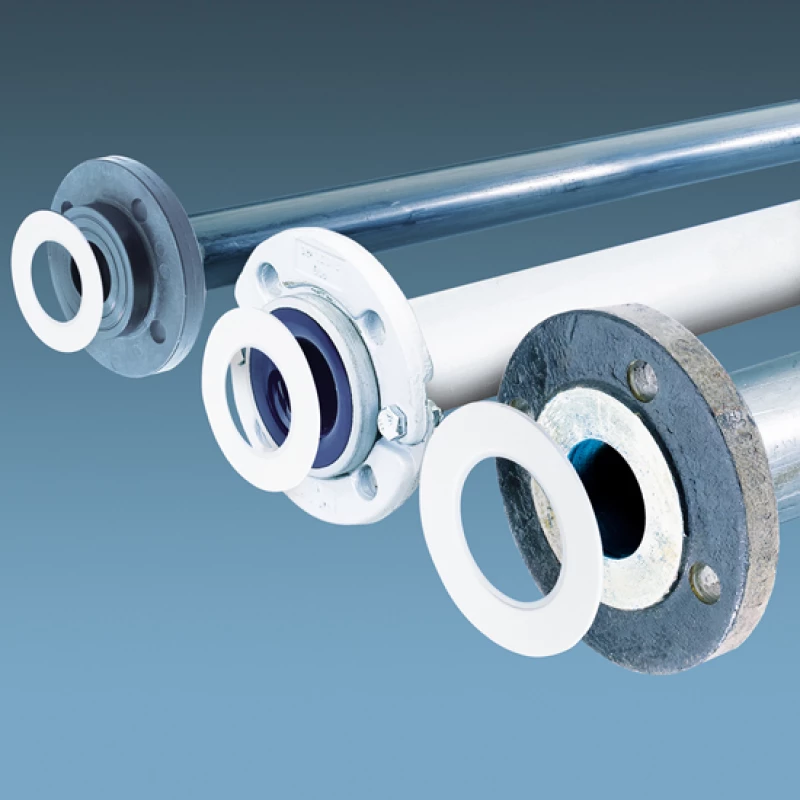

Type | Style 800 |
Material | 100% PTFE (expanded) |
Color | white on both sides, |
|
|
Maximum temperature | 270 ºC,momentary peak 315 ºC* |
Compressibility according to ASTM F36A | 55% |
Springback according to ASTM F36A | 15% |
Gas permeability | in accordance with "TA LUFT" requirements. |
Blowout safety (TÜV) | Class A/B/C 60 bar. |
|
|
Chemical resistance | virtually unlimited** |
|
|
Sealing factors ASTM
|
|
ASTM Y | 10 MPa |
ASTM m | 2,4 |
|
|
Min. surface pressure EN13555
|
|
Qmin(0,1) | 6 MPa |
|
|
* Seek advice at temperatures > 230 ºC and pressures > 40 bar.
|
|
** except fused or dissolved alkali metals, and elemental fluorine (compounds) at higher temperatures and pressures.
|
|
|
|
DIN dimensions according to EN 1514-1
|
|
ANSI dimensions according to B16.21
|
|
|
|
FOR INDUSTRIAL USE ONLY.
|
|
Not suitable for use in the manufacture, processing or packaging of
|
|
foods, pharmaceuticals, cosmetics or medical products.
|
