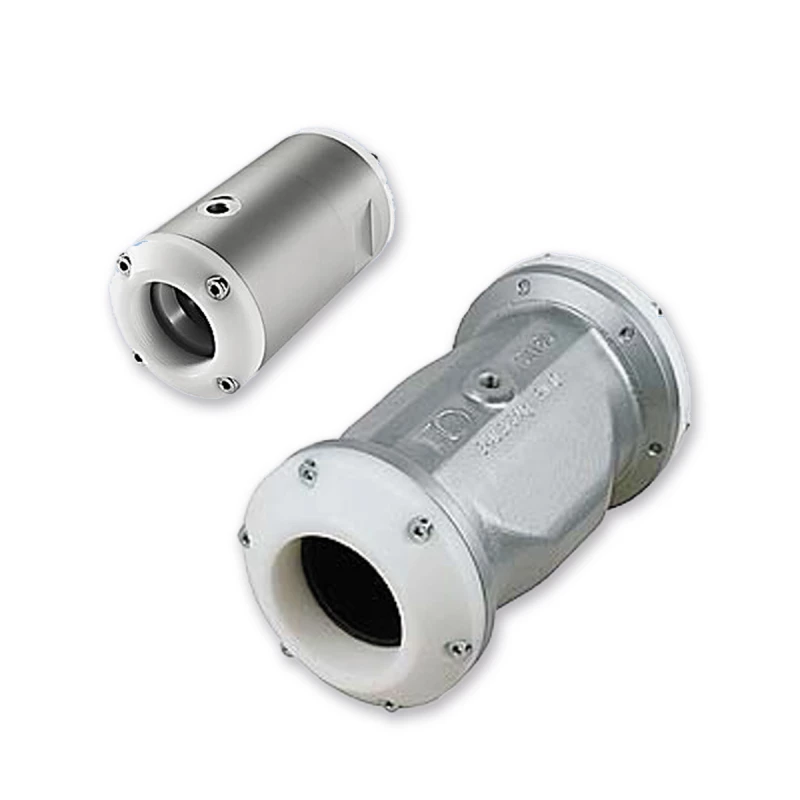

Aluminum Pinch valve | KP-1303
Threaded connection BSP
Suitable for: (contaminated) liquids, slurries, powders and granulates
- Lining easily and quickly changed.
- Low air consumption.
- Suitable for sanitary application.
- Full bore.
- FDA liners.
Urgency or questions about availability?
Also available
- lining of Neoprene, NBR, EPDM, FPM, CSM or Natural rubber white (food-grade FDA compliant)
- STAINLESS STEELmodel
- Plastic-model
- Versions for use in Ex zones 0, 1, 2, 20, 21, 22 according to ATEX 94/9/CE on request
Specifications
| Type | KP-1303 |
| Material |
Aluminum G-AlSi7Mg colorless anodized/ DN40: Plastic POM |
| Pressure class | PN 10 |
| Seat | Natural Rubber |
| Connector caps | Plastic POM natural white |
| Max. working pressure | 4 bar |
| Max. pilot pressure | 6.5 bar |
|
Max. difference
|
|
| Work and steering pressure | 2.5 bar |
|
|
|
| Temperature | -15°C to +80°C |
