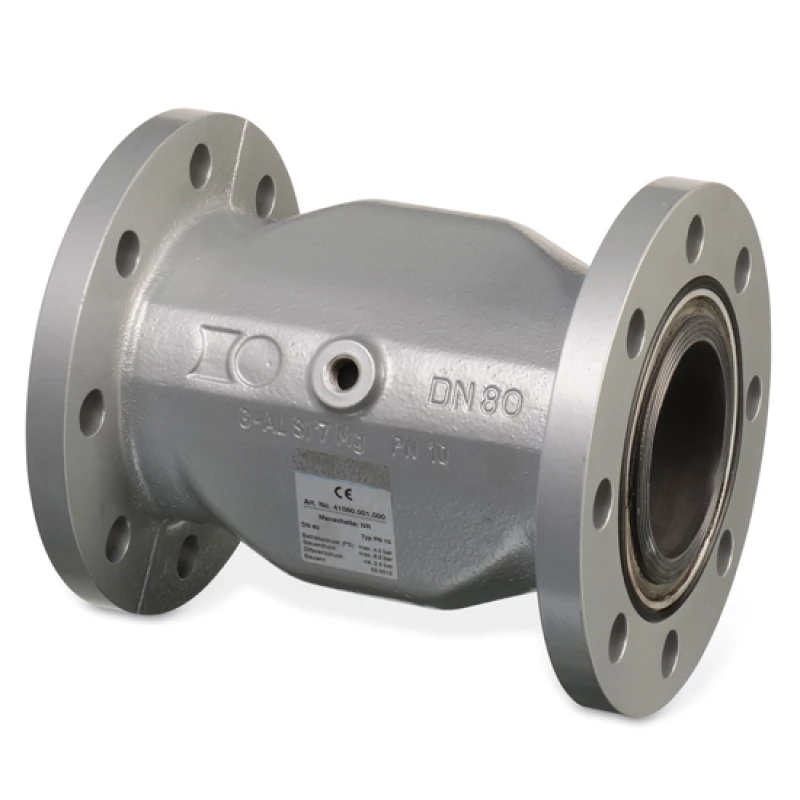

Aluminum Pinch valve | KP-1301
Flange connection PN10 / PN16
Suitable for: (contaminated) liquids, slurries, powders and granulates
- QSV: Quick Service Valve.

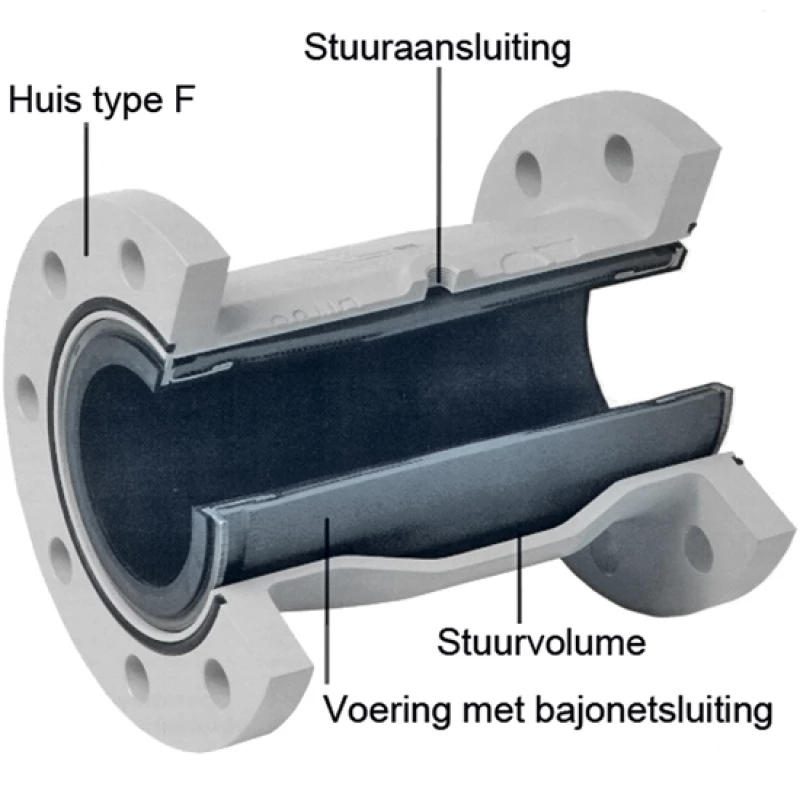

- Liner easily and quickly changed without tools by means of bayonet closure.
- Low air consumption.
- Suitable for sanitary application.
- Full bore.
- FDA liners.
Urgency or questions about availability?
Also available
- lining of Neoprene, NBR, EPDM, FPM, CSM or Natural rubber white (food grade FDA compliant and EC1935/2004)
- solenoid valve for automated applications, see chapter Automation
- Pressure reducing valve, see chapter Automation
- Versions for use in Ex zones 0, 1, 2, 20, 21, 22 according to ATEX 94/9/CE on request
Specifications
| Type | KP-1301 |
| Material |
Aluminum G-AISi7Mg Provided with powder coating silver/gray House does not come into contact with medium |
| Pressure class | PN 10 |
| Max. working pressure | 4 bar |
| Max. pilot pressure | 6.5 bar |
|
Max. difference
|
|
| work and steering pressure | 2.5 bar |
| Seat | Natural Rubber |
| O-ring | NBR |
|
|
|
| Temperature | -15°C to +80°C. |
