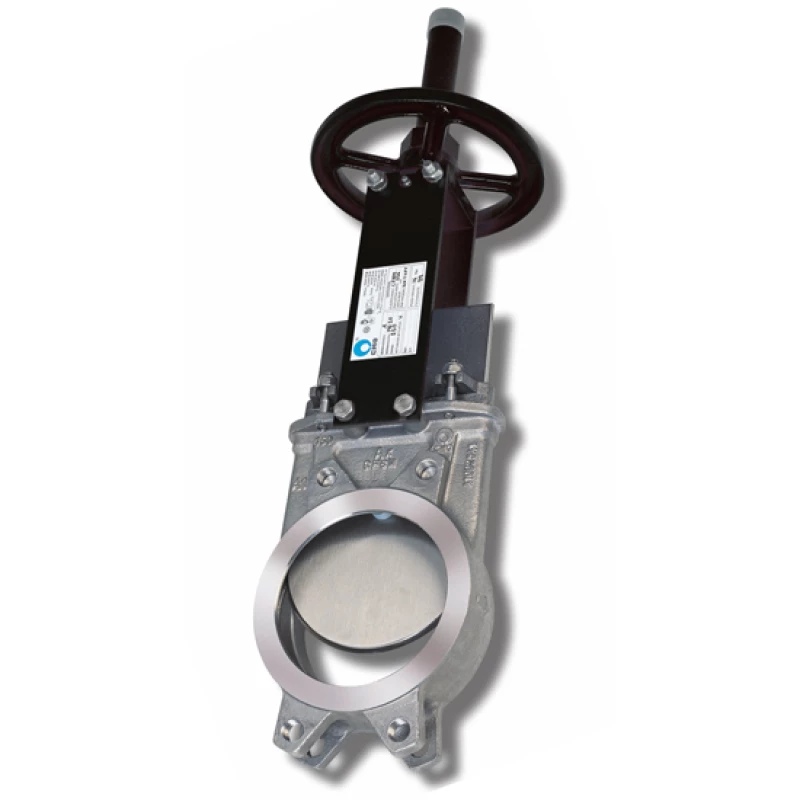

RVS Knife gate valve | KP-191
Flange connection PN 10
Suitable for: contaminated liquids, granulates, powders and slurry
- Very short installation length.
- Simple overhaul.
Urgency or questions about availability?
Also available
- with pneumatic actuator, see KP-195
- larger sizes and different seat materials
- with worm gear control
Specifications
| Type | KP-191 |
| Material | STAINLESS STEEL A351 CF8M |
| Slide | Stainless steel X5CrNiMo17-12-2 |
| Seat | EPDM |
| Spindle | Stainless steel X8CrNiS18-9 |
| Stop Bus | Fiber cord PTFE impregnated |
| Handwheel | Nodular cast iron |
| U-Bracket | STAINLESS STEEL |
|
|
|
| Working pressure | max. 10 bar, see table. |
| Temperature | -10°C to +90°C |
