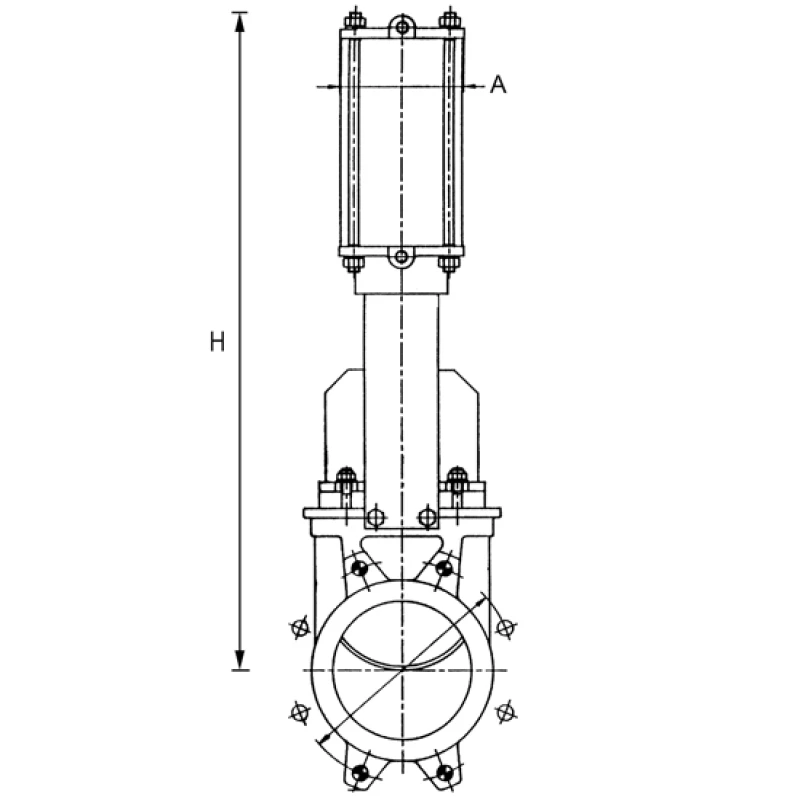

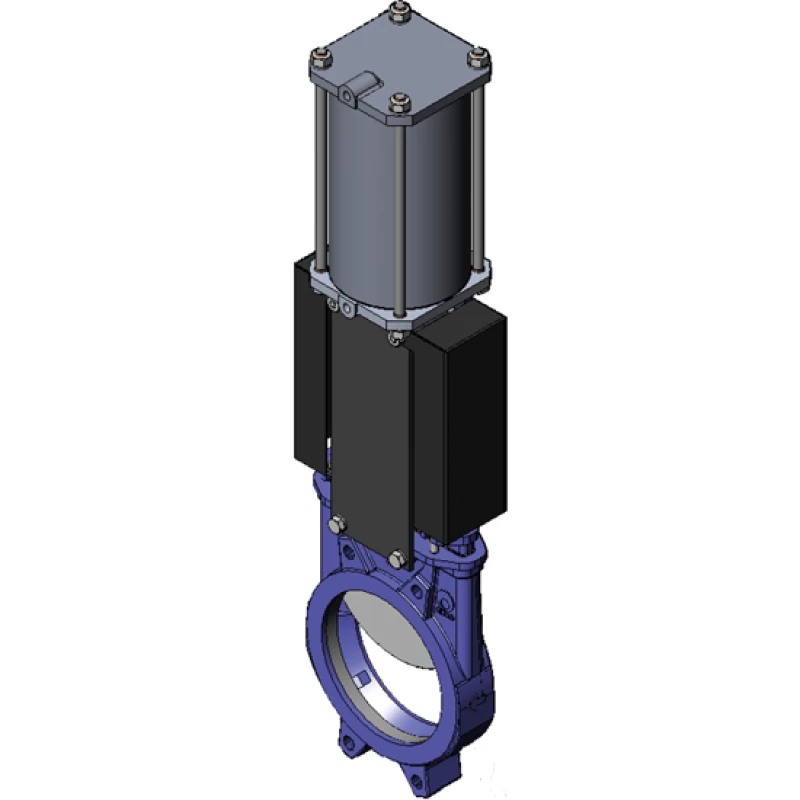

GY Knife gate valve, pneumatic | KP-194
Flange connection PN 10, pneumatically operated, double-acting
Suitable for: contaminated liquids, granulates, powders and slurry
- Very short installation length.
- Simple overhaul.
Urgency or questions about availability?
Also available
- with pneumatic actuator spring return (spring-closing or spring-opening)
- larger sizes and different seat materials
- switchboxes & limit switches
Specifications
| Type | KP-194 |
| Material | Cast Iron EN-GJL-250 |
| Slide | Stainless steel X5CrNi18-10 |
| Seat | EPDM |
| Spindle | Stainless steel X8CrNiS18-9 |
| Stop Bus | Fiber cord PTFE impregnated |
| Operation | Aluminum with cast iron lids |
| U-Bracket | Steel |
|
|
|
| Steering pressure | minimum 5 bar air |
|
|
|
| Working pressure | max. 10 bar, see table |
| Temperature | -10°C to +90°C |
