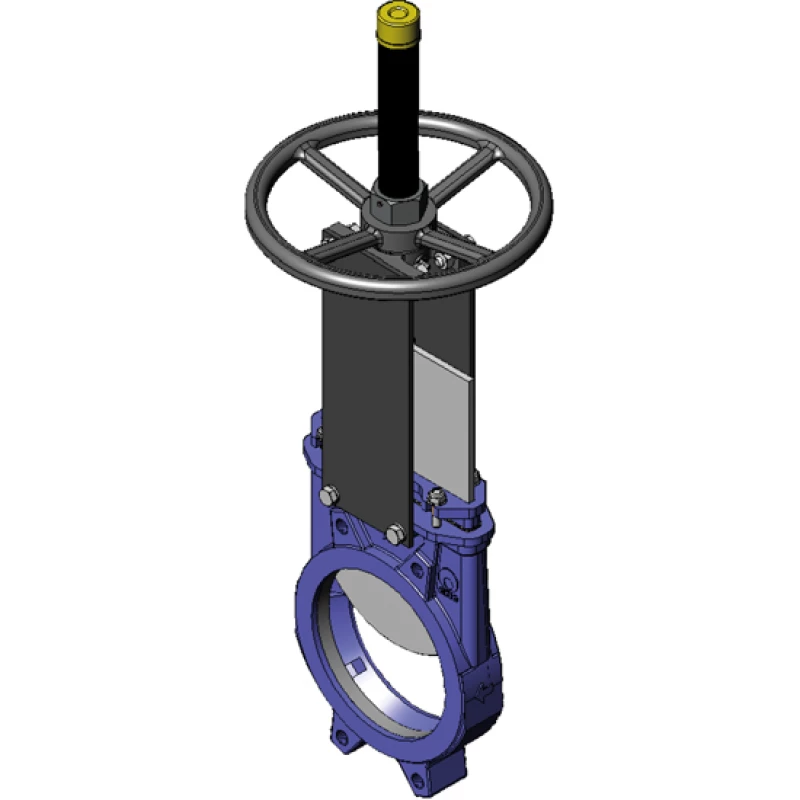

Cast iron Knife gate valve | KP-190

Cast iron Knife gate valve | KP-190
Cast iron Knife gate valve | KP-190
gallery slider left
gallery slider right

Flange connection PN10

Suitable for: contaminated liquids, granulates, powders and slurry

  • Very short installation length.
  • Simple overhaul.
Specifications
Cast iron Knife gate valve | KP-190
Cast iron Knife gate valve | KP-190
Next series

Also available

  • with pneumatic actuator, see KP-194
  • larger sizes and different seat materials
  • with worm gear control
  • switchboxes & limit switches

Specifications

Type KP-190
Material Cast Iron EN-GJL-250
Slide Stainless steel X5CrNi18-10
Seat EPDM
Spindle Stainless steel X8CrNiS18-9
Stop Bus Fiber cord PTFE impregnated
Handwheel Nodular cast iron
U-Bracket Steel
Working pressure max. 10 bar, see table.
Temperature -10°C to +90°C
