Ductile iron gate valve, non-rising spindle - KP

Ductile iron gate valve, non-rising spindle | KP

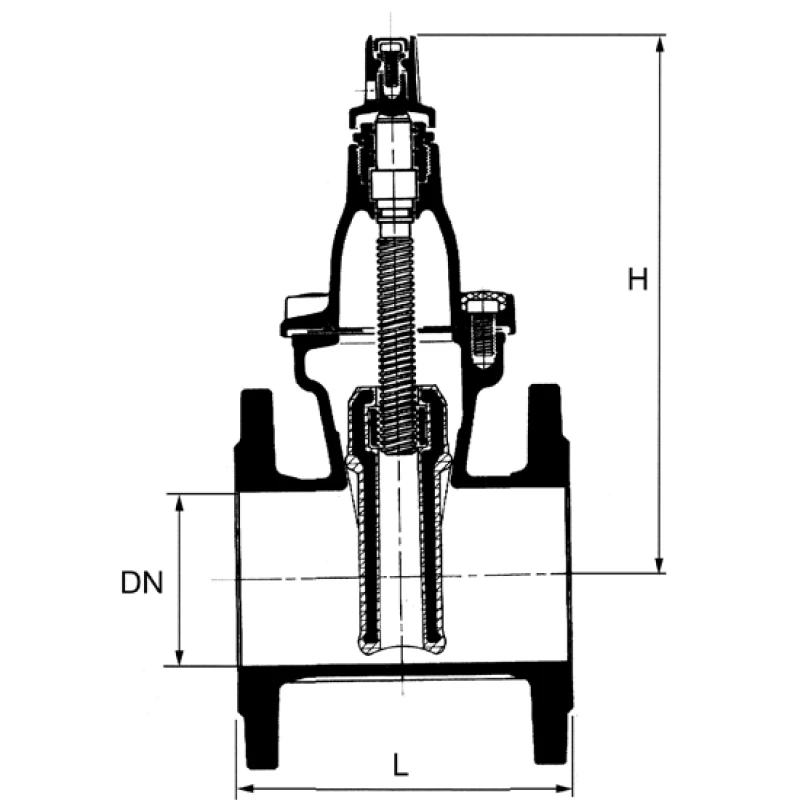

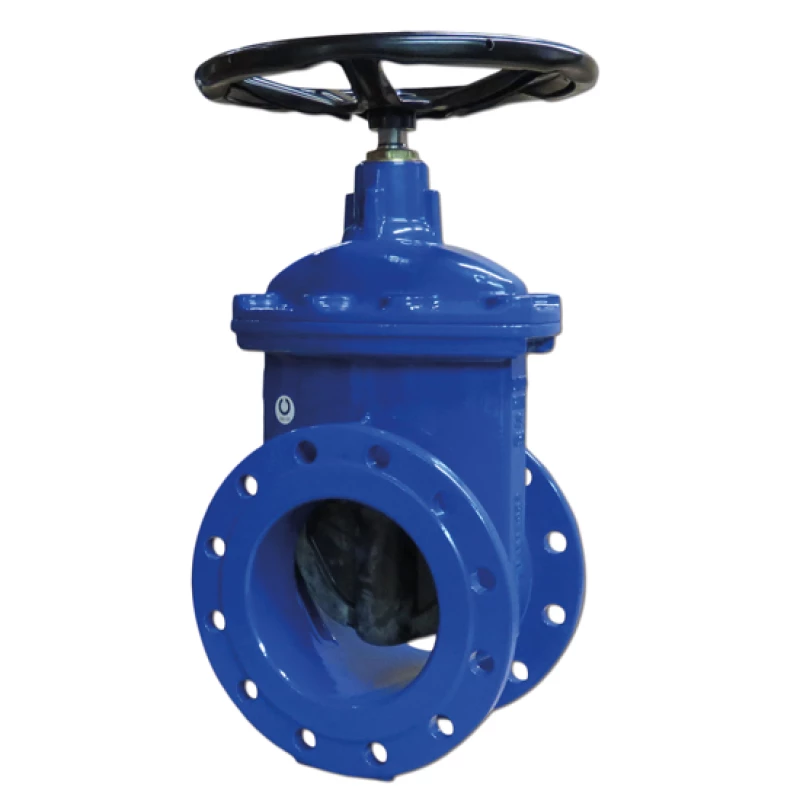

product image
product image
Ductile iron gate valve, non-rising spindle | KP
Ductile iron gate valve, non-rising spindle | KP
gallery slider left
gallery slider right

Flange connection PN 16, EPDM or NBR seal, KIWA approval and gas approval

Suitable for: including water with sediment (sand).

  • Application in water distribution, wastewater, irrigation and fire suppression systems, air conditioning and various gases.
  • Globe valve with body and upper part made of ductile iron, equipped with flange connection.
  • Internal and external epoxy coating.
  • With internal and non-rising spindle.
  • The slide is vulcanized to provide an excellent seal.
Specifications
Ductile iron gate valve, non-rising spindle | KP
Ductile iron gate valve, non-rising spindle | KP
Previous series Next Series

Urgency or questions about availability?

Valves
088 528 20 81
or

Also available

  • larger dimensions
  • extension spindle for soil installation; street pots; operating keys
  • PN10 DIN flange connection
  • NBR seal

Specifications

Type KP-506
Material Nodular cast iron EN-GJS-500-7
Top part Nodular cast iron EN-GJS-500-7
Handwheel Cast Iron
Spindle Stainless steel X20Cr13
Slide Cast Iron EN-GJS-500-7
Seal EPDM vulcanized slide
NBR vulcanized slide (gas)
Face to face EN558-1 series 14
Connection PN16 EN1092-2
Temperature -10°C to +50°C
