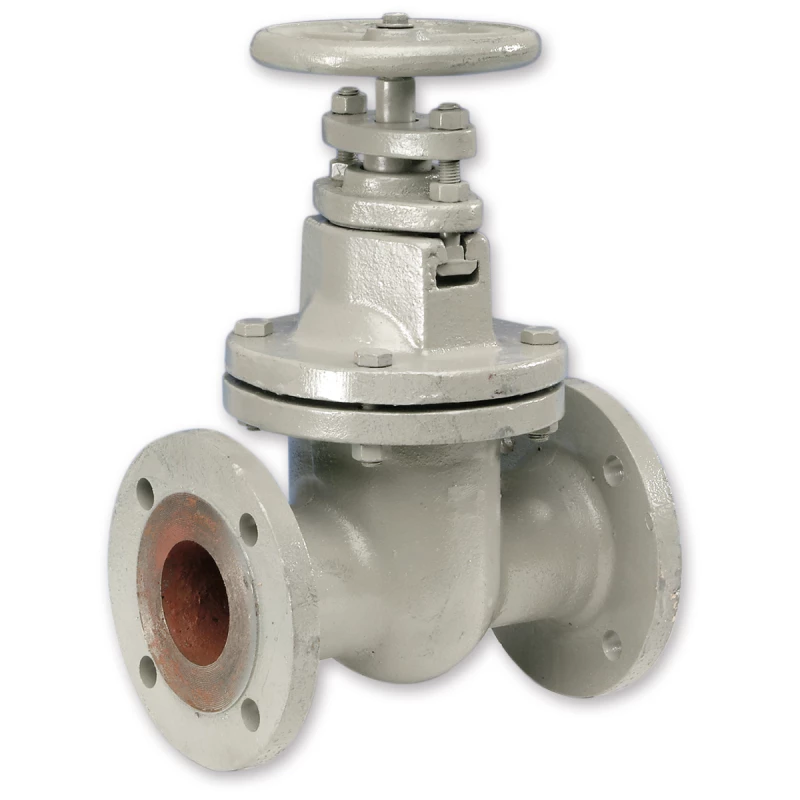

Cast iron Gate valve, non-rising hand wheel - KP-504

Cast iron Gate valve, non-rising hand wheel | KP-504

Cast iron Gate valve, non-rising hand wheel | KP-504
Cast iron Gate valve, non-rising hand wheel | KP-504
gallery slider left
gallery slider right

Flange connection PN10, brass seat

Suitable for: water, oil, gas and air

  • With internal and non-rising spindle.
  • Non-rising hand wheel.
  • This valve has brass sealing surfaces.
Specifications
Cast iron Gate valve, non-rising hand wheel | KP-504
Cast iron Gate valve, non-rising hand wheel | KP-504
Previous series Next Series

Also available

  • DN250 and larger on request
  • with PN16 flange connection

Specifications

Type KP-504
Material Cast Iron EN-GJL-250
Pressure class PN16, flanges PN10 drilled
Top part Cast Iron EN-GJL-250
Handwheel Cast Iron
Spindle Stainless steel X20Cr13
Slide Cast Iron
Seat Brass

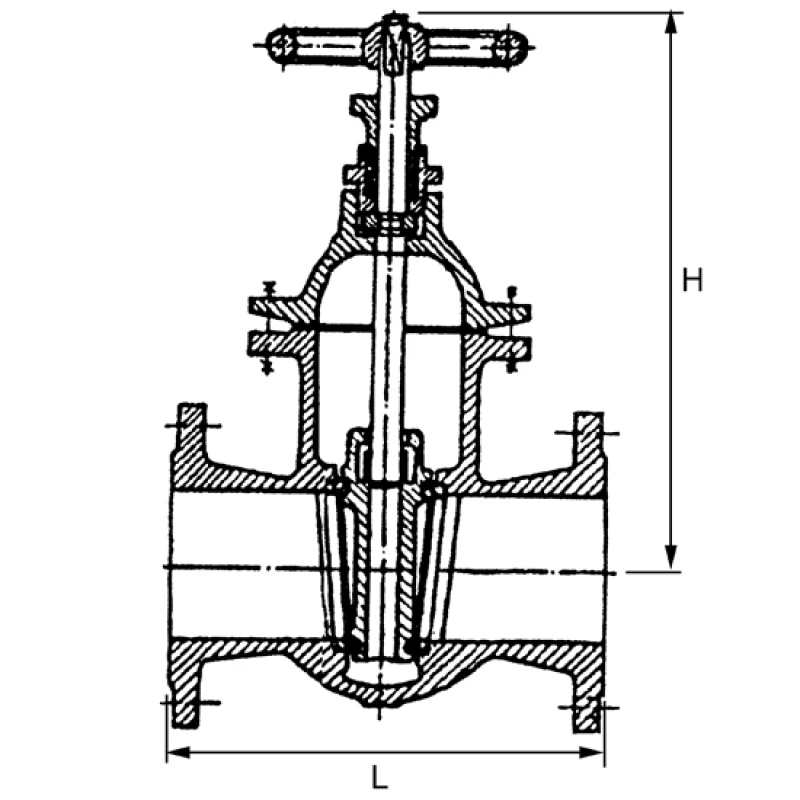

Face to face EN558-1 series 15
Connection EN1092-2
Temperature 0°C to +120°C
Contact

For more information on our valves, please contact us at:
