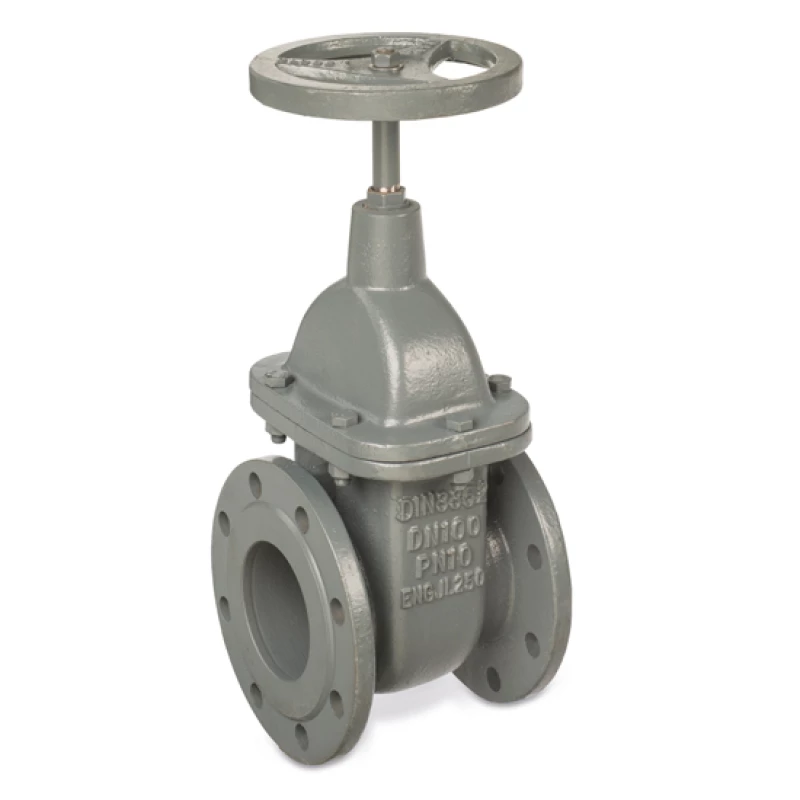

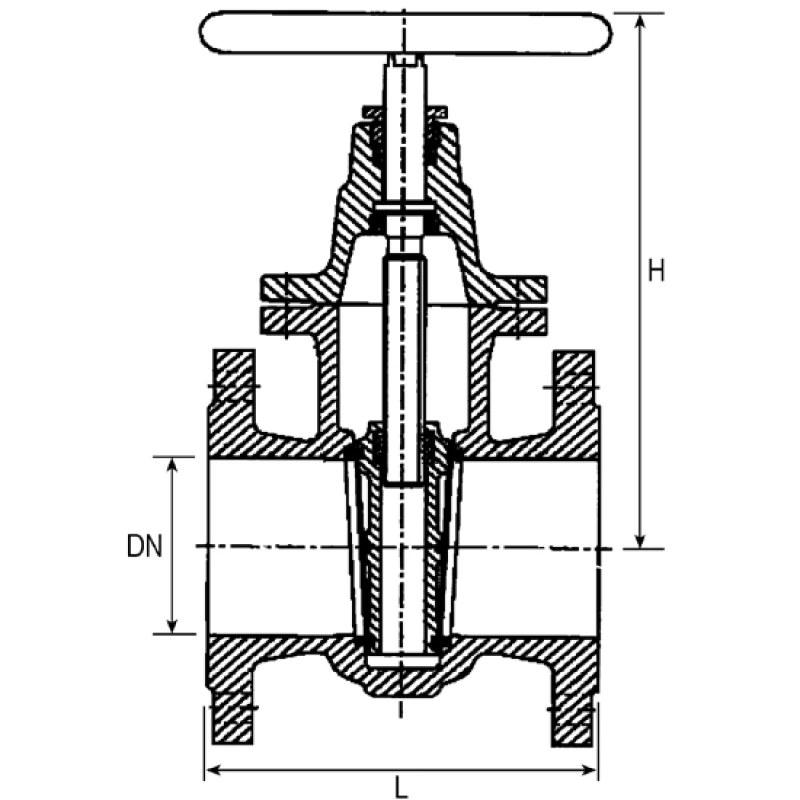

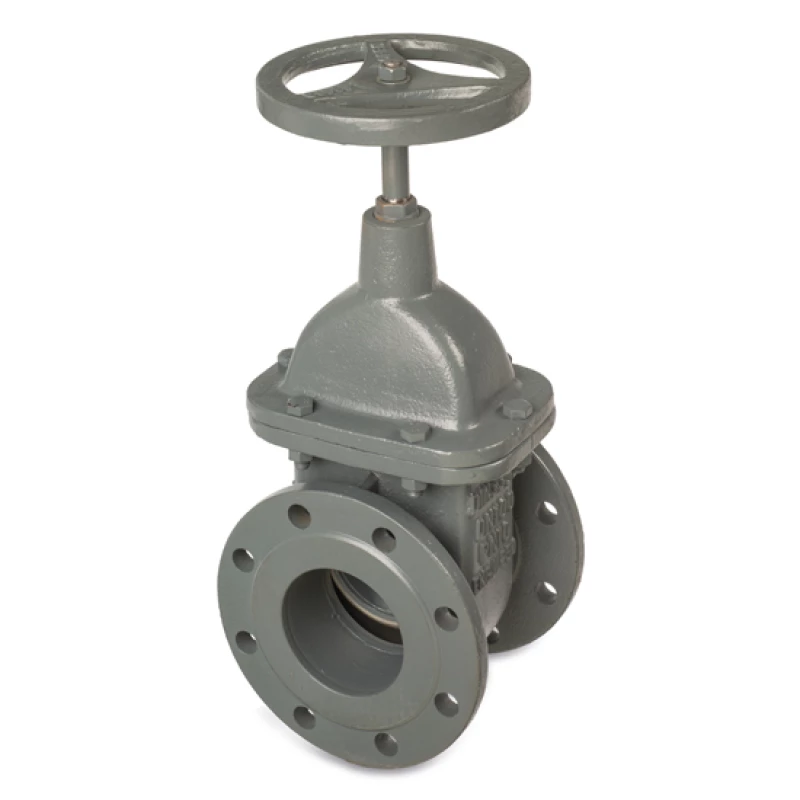

Cast iron Gate valve, non-rising hand wheel - KP-502

Cast iron Gate valve, non-rising hand wheel | KP-502

Cast iron Gate valve, non-rising hand wheel | KP-502
Cast iron Gate valve, non-rising hand wheel | KP-502
Cast iron Gate valve, non-rising hand wheel | KP-502
gallery slider left
gallery slider right

Flange connection PN 10, brass seat

Suitable for: water, oil, gas and air

  • With inside spindle.
  • Non-rising hand wheel.
  • This valve has brass sealing surfaces.
Specifications
Cast iron Gate valve, non-rising hand wheel | KP-502
Cast iron Gate valve, non-rising hand wheel | KP-502
Cast iron Gate valve, non-rising hand wheel | KP-502
Previous series Next Series

Also available

  • flush mount kit for underground mounting
  • with drain plug

Specifications

Type KP-502
Material Cast Iron EN-GJL-250
Pressure class DN 40 to DN 150 PN 10
DN 200 to DN 300 PN 6
DN 350 to DN 500 PN 4
DN 600 to DN 800 PN 2.5
Top part Cast Iron EN-GJL-250
Handwheel Cast Iron
Spindle Stainless steel X20Cr13
Spindle seal Graphite
Slide Cast Iron
Seat Brass
Threaded canister Brass
Face to face EN558-1 series 14
Connection EN1092-2 PN10
Temperature 0°C to +120°C
