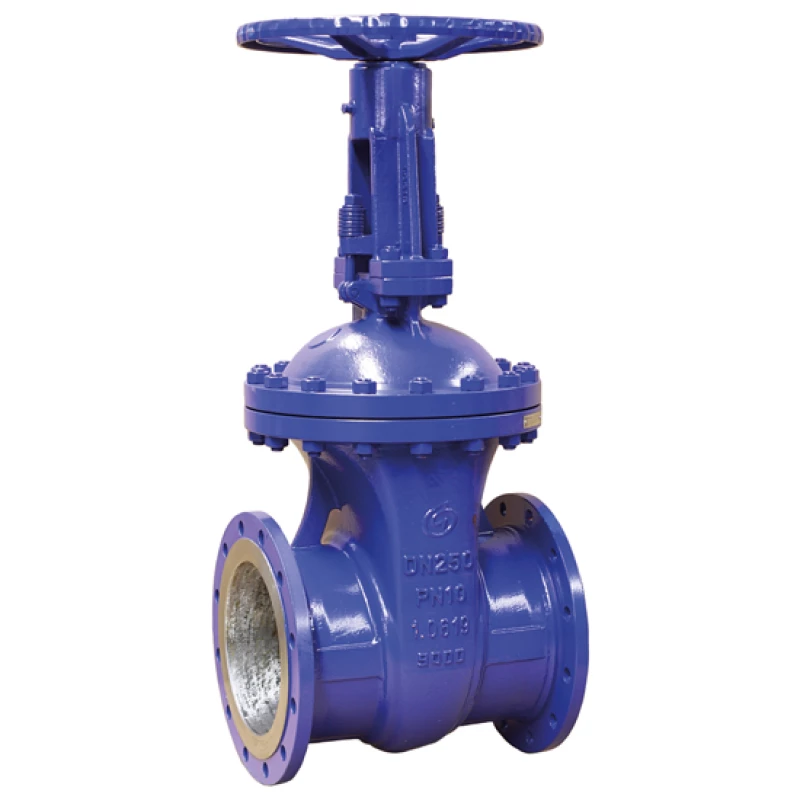

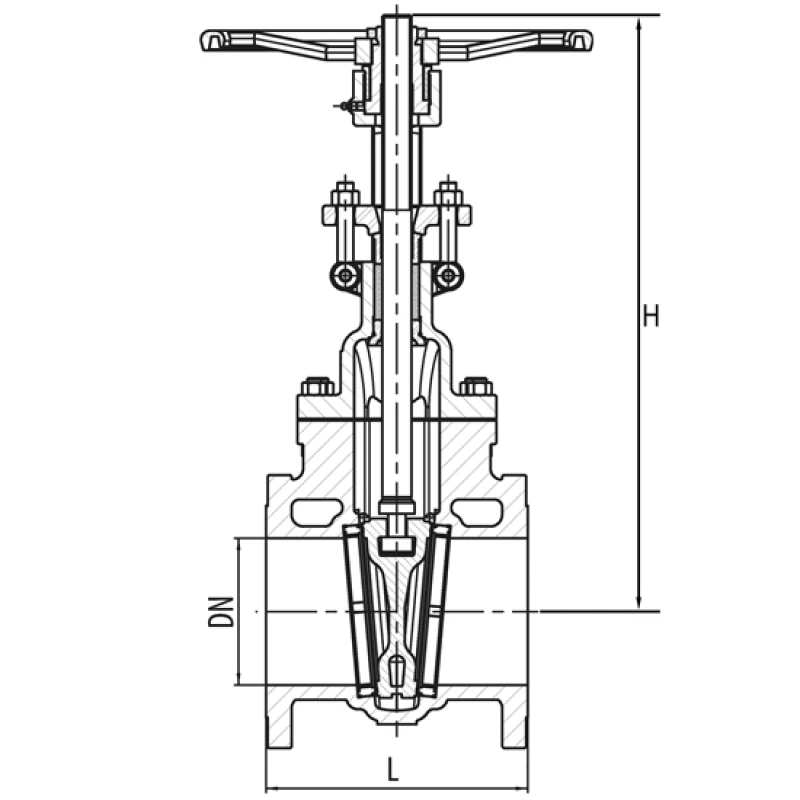

Steel Gate valve, rising spindle | KP-508
Flange connection , adjustable seat with backseat
Suitable for: steam, oil, water, air and various process applications
- With outside and rising spindle.
- Non-rising hand wheel.
- Stellated sealing surfaces.
Options
- ANSI flange connection
- LAS connection
- electrical operation
- GOST certificate
Specifications
| Type | KP-508 |
| Material | Steel GP240GH |
| Pressure class | PN10 to PN100 |
| Top part | Steel GP240GH |
| Handwheel | Steel |
| spindle | Stainless steel X12Cr13 |
| Slide | Flexible, steel GP240GH + X20Cr13 |
| Seat | Gestellitized stellite 6 |
| Cover gasket | Graphite |
| Gland packing | Graphite |
|
|
|
| Face to face | EN558-1 series 14, series 15 or series 26 |
| bore | DN50 to DN600 |
| Connection | EN 1092-1 |
|
|
|
| Temperature | Max. 450°C |
| Standard coating suitable up to about 120°C | |
| Wecotherm high temp coating > 120°C | |
