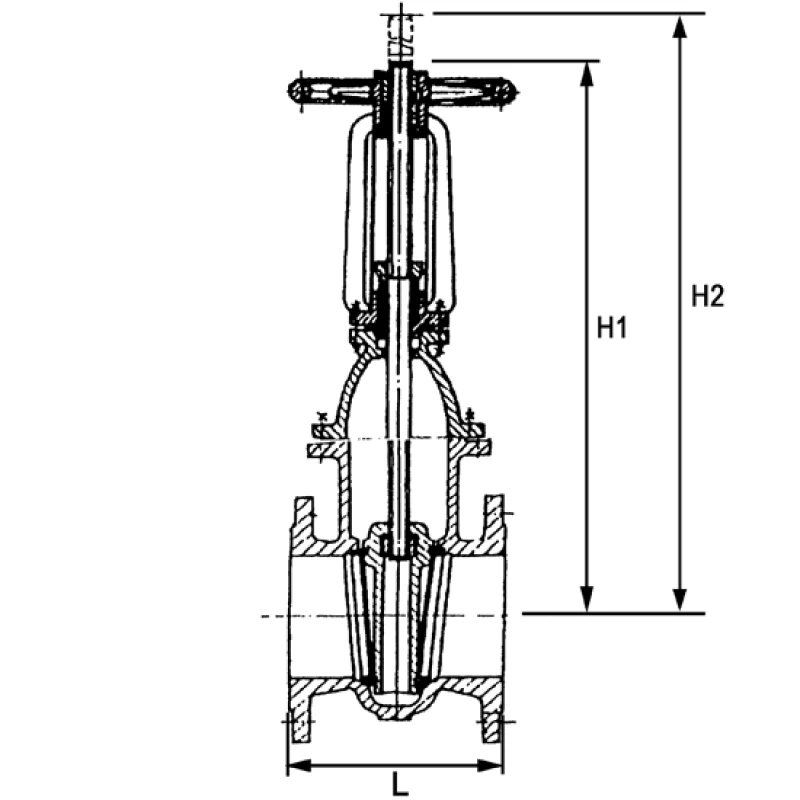

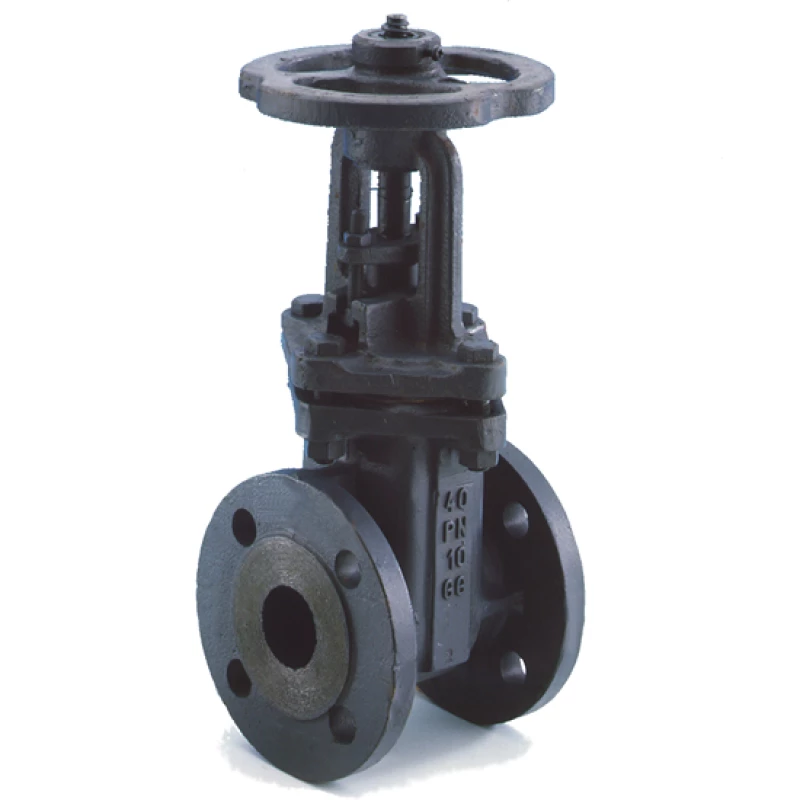

Nod. Cast Iron Gate valve, rising spindle | KP-503
Flange connection PN 10, stainless steel seat
Suitable for: water, oil, gas and air
- With outside and rising spindle.
- Non-rising hand wheel.
- This valve has stainless steel sealing surfaces for minimal wear.
Specifications
| Type | KP-503 |
| Material | Nod. cast iron EN-GJS-500-7 |
| Pressure class | DN 50 to DN 300 PN10 |
| DN 350 to DN 500 PN6 | |
| Top part | Nod. cast iron EN-GJS-500-7 |
| Handwheel | Cast Iron |
| Spindle | Stainless steel X20Cr13 |
| Slide | Nod. cast iron |
| Seat | STAINLESS STEEL |
|
|
|
| Face to face | EN558-1 series 14 |
| Connection | EN1092-2 PN10 |
|
|
|
| Temperature | 0°C to +180°C |
