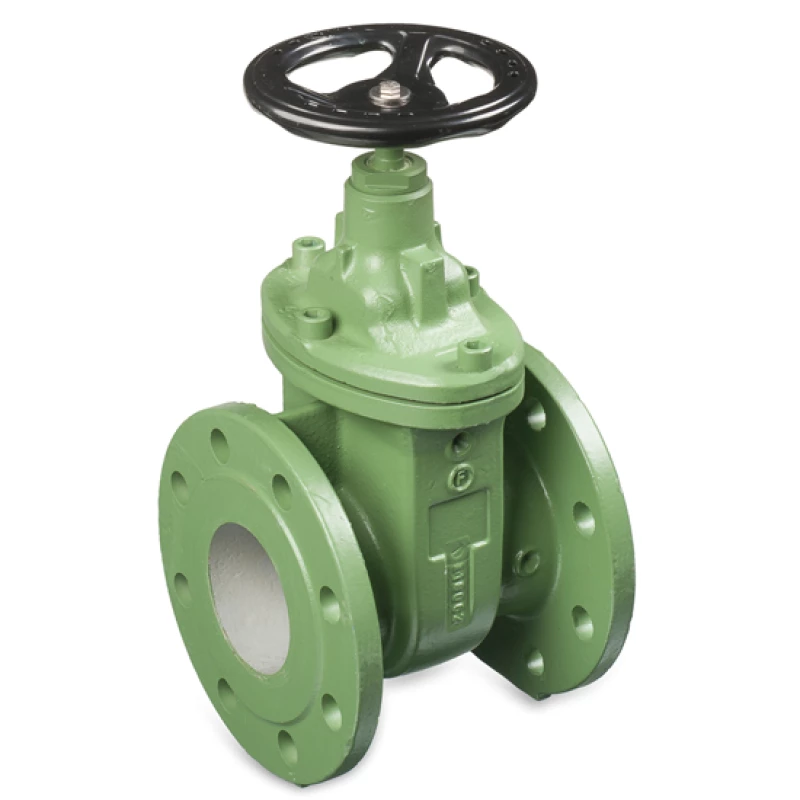

Cast iron Gate valve, non-rising hand wheel - KP-501

Cast iron Gate valve, non-rising hand wheel | KP-501

Cast iron Gate valve, non-rising hand wheel | KP-501
Cast iron Gate valve, non-rising hand wheel | KP-501
gallery slider left
gallery slider right

Flange connection PN 10, stainless steel seat

Suitable for: water, oil, gas and air

  • With inside spindle.
  • Non-rising hand wheel.
  • This valve has stainless steel sealing surfaces for minimal wear.
  • KP-501 Bronze-free completely free of bronze parts.
Specifications
Cast iron Gate valve, non-rising hand wheel | KP-501
Cast iron Gate valve, non-rising hand wheel | KP-501
Next series

Also available

  • flush mount kit for underground mounting

Specifications

Type KP-501
Material Cast Iron GJL-250
Pressure class PN10, from DN 350 PN 4, from DN 600 PN 2.5
Top part Cast Iron GJL-250
Handwheel Cast Iron
Spindle Stainless steel X20Cr13
Spindle seal Graphite / KP-501 bronze-free FPM O-ring
Slide Cast Iron
Seat STAINLESS STEEL
Face to face EN558-1 series 14
Connection EN1092-2 PN10
Temperature -10°C to +120°C
