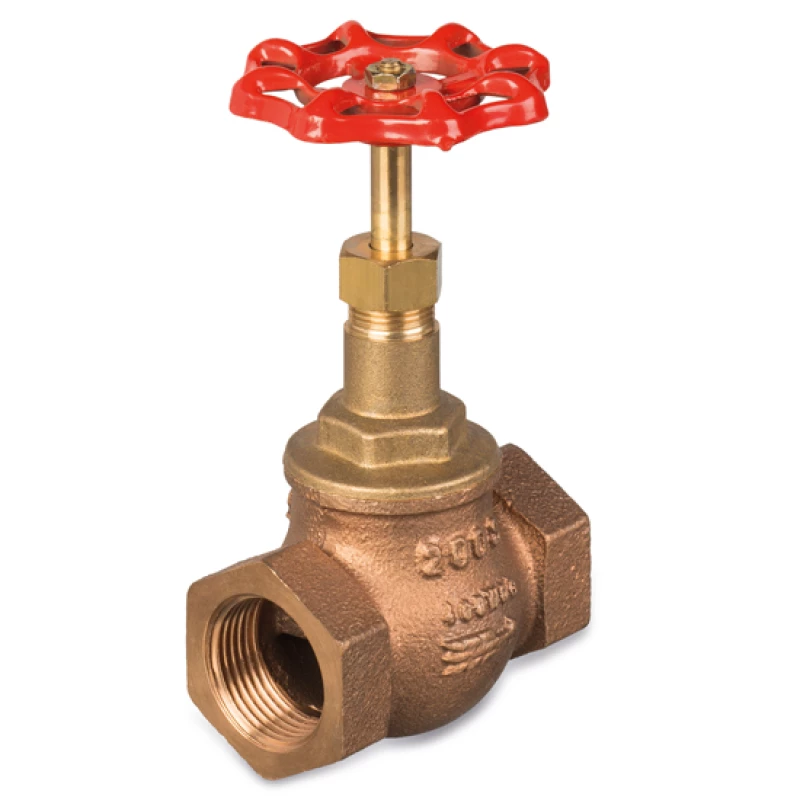

Bronze Globe valve with PTFE valve ring | KP
Threaded connection BSP, PN32
Suitable for: steam, water, oil, gases and air
Urgency or questions about availability?
Specifications
| Type | KP-535 |
| Material | Bronze CuZn5Zn5Pb5-C |
| Pressure class | PN32 |
| Top part | Bronze CuZn40Pb2 |
| Handwheel | Aluminum |
| Seat | Bronze CuSn5Zn5Pb5-C |
| Disc | Bronze with interchangeable PTFE ring |
| Spindle | Bronze CuZn39Pb3 |
| Gland packing | PTFE fiberglass reinforced |
|
|
|
| Temperature | 14 bar @ 198°C |
| 32 bar up to 100°C | |
